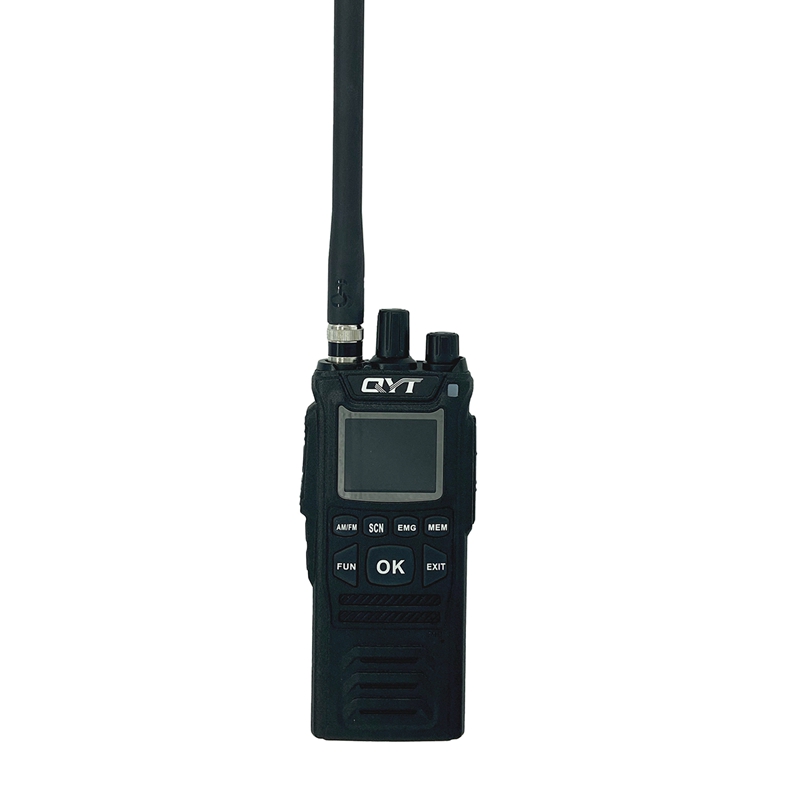

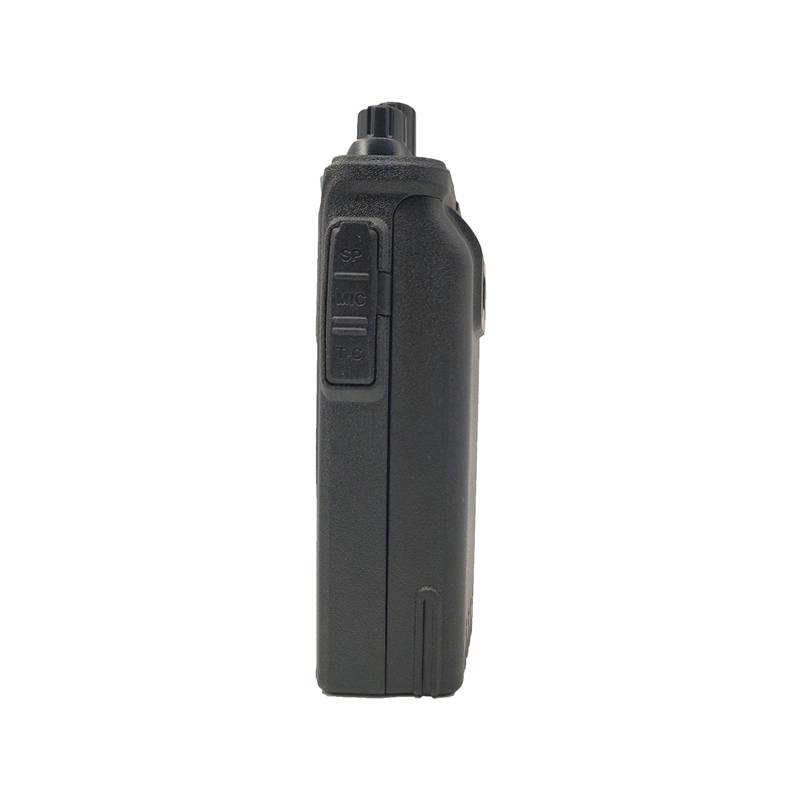

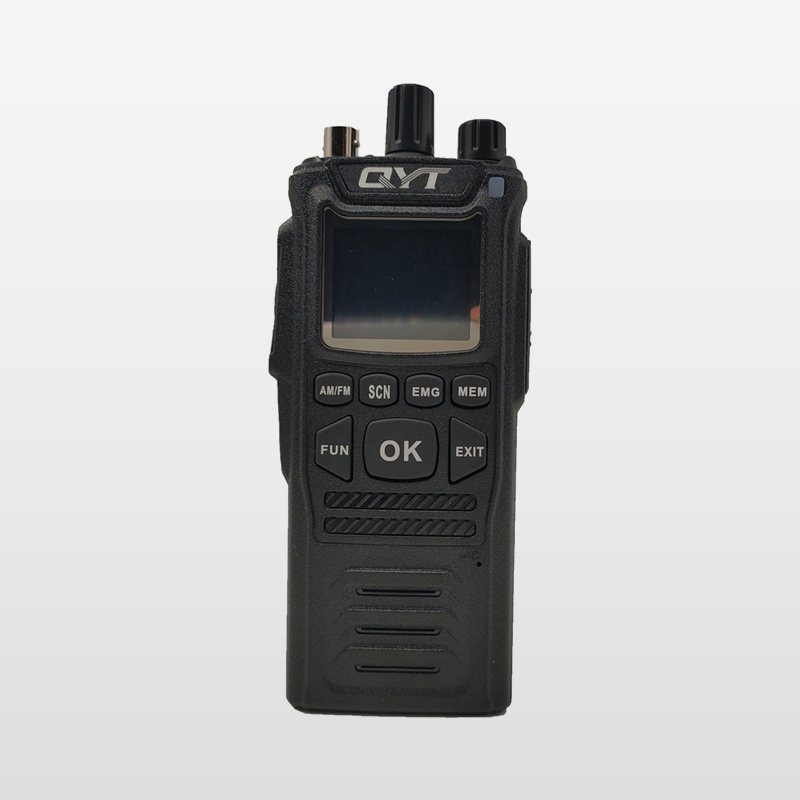

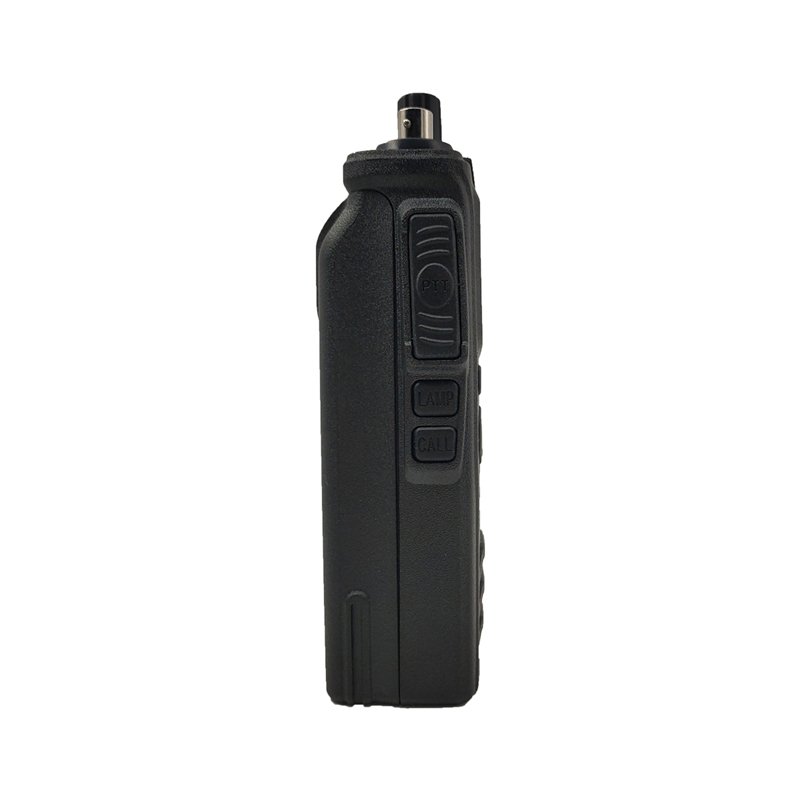

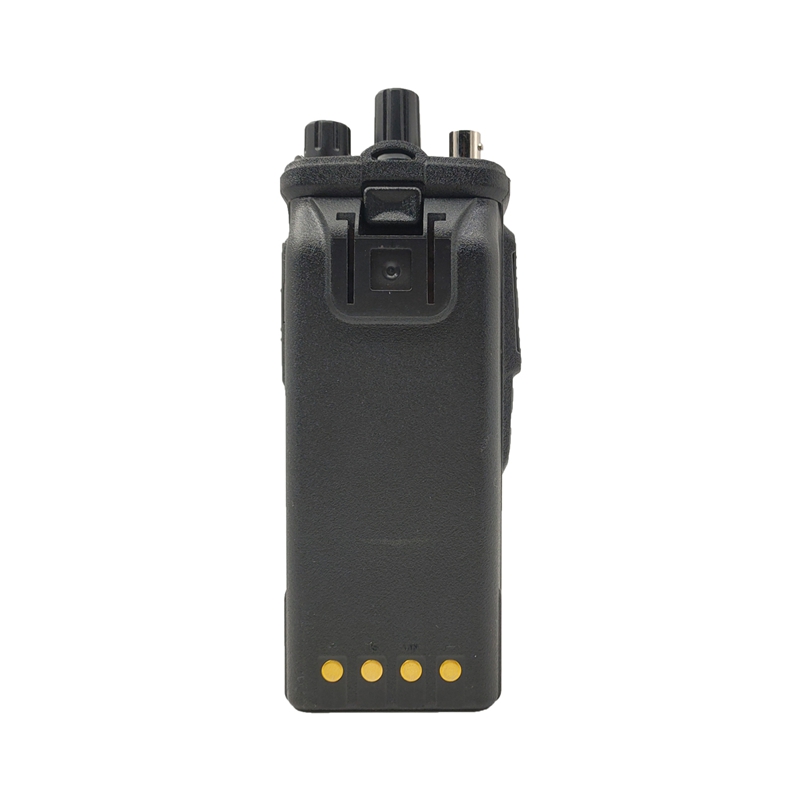

CB-58

This versatile CB (Citizens Band) radio is a compact communication powerhouse designed for those who need dependable, license-free radio contact. Operating on the standard 27MHz band with dual AM/FM support, it bridges the gap between rugged professional utility and hobbyist exploration.

Availability:



Inquire

Walkie Talkie Mobile Radio Walkie Talkie Battery Walkie Talkie Charger Walkie Talkie Antenna

Product Description

SPECIFICATIONS
GENERAL
Modulation Mode	AM/FM
Frequency Range	26.965-27.405MHz
Frequency Tolerance	5.0ppm
Input Voltage	12V
Dimensions(in mm)	165(W)x67(D)×44(H)
Weight	Appro×507g
Frequency Control	PLL Synthesizer
Operating Temperature Range	-20℃ to 55℃
Transmit	2A MAX
Current Drain Receive	Squelched 0.3A
VOL Max	0.8A
Antenna Connector	BNC
TRANSMITTER
Power output	4 Watts FM/AM
Transmission interference	inferior to 4nW(-54d Bm)
Frequency Response	300-3000Hz
Modulated signal distortion	inferior to 5%
output impedance	50 ohms
RECEIVER
Sensitivity	Less than 1uV for 10dB(S+N)/N
Image Rejection	70dB
Adjacent Channel Rejection	60dB
IF Frequencies	1st 10.695MHz
IF Frequencies	2nd 455KHz
Automatic Gain Contol(AGC)	Less than 10dB change in audio
Automatic Gain Contol(AGC)	output for inputs from 10 to 50000uV
Squelch	less than 1uV
Audio Output Power	3 watts into 8 ohms
Frequency Response	300-3000Hz
