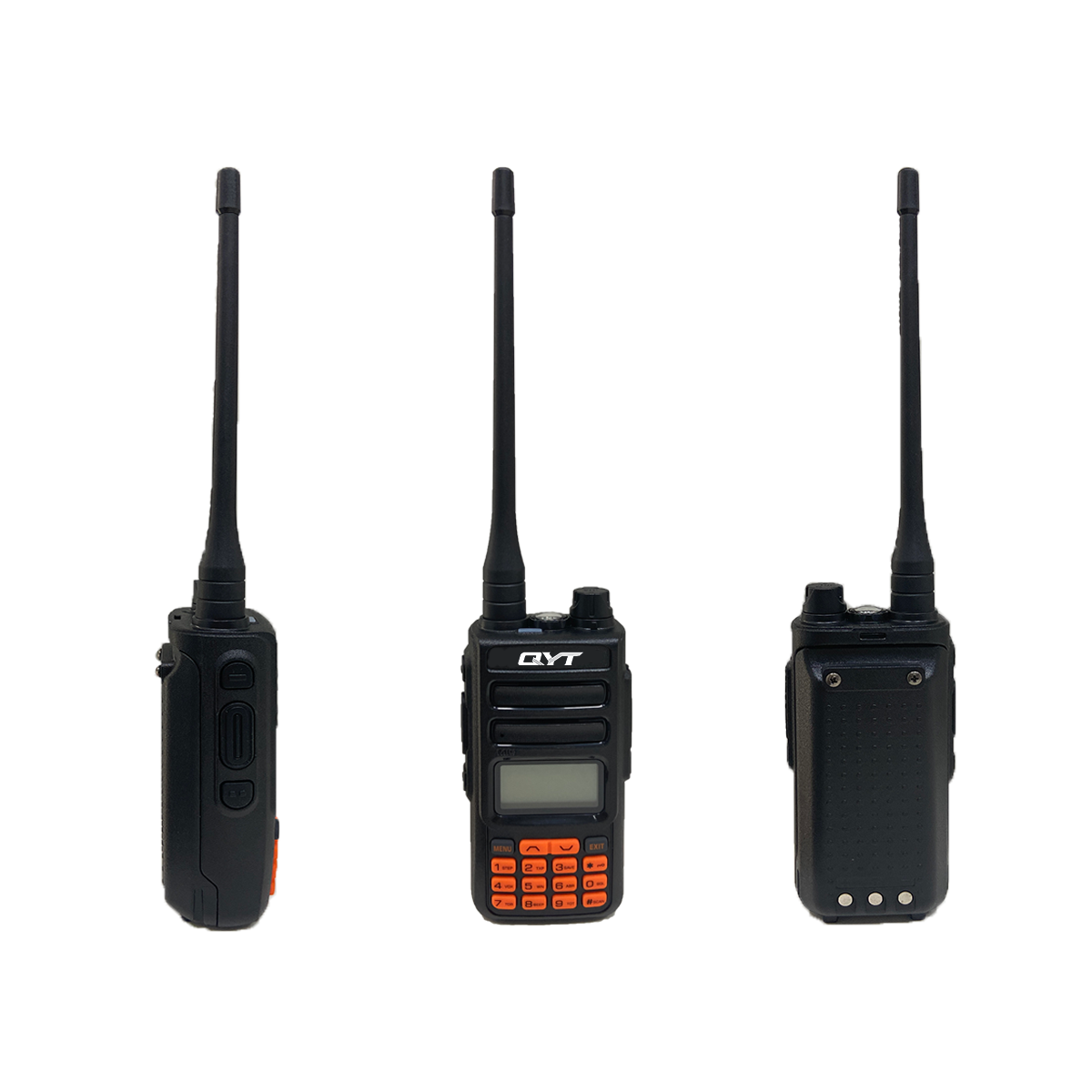

AH-15 Dual Band Type-C Walkie Talkie 3km Long Range FCC CE IC Certified Portable Two Way Radio

This QYT AH-15 dual band walkie talkie owns FCC, CE and IC global certifications, complying with EU 144-146&430-440MHz and Canada 144-148&420-450MHz frequency standards. It delivers max 5W VHF / 4W UHF power with stable 3km long range communication, stores up to 99 memory channels and adopts convenient Type-C charging. Equipped with 7.4V operating voltage, 0.25μV high receiving sensitivity and strong anti-interference performance, it works steadily from -20℃ to +5℃ for outdoor, warehouse and team communication. Feel free to contact us to get detailed customization plans and quotations.

Availability:



Inquire

Model:
AH-15
Brand:
QYT

5W walkie talkie Analog VHF UHF Transceiver Dual Mode Walkie Talkie High Power Anti-interference Radio Type-C Charging Radio

Product Description

We offer comprehensive customized services for the AH-15 handheld radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging dock slot design, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize dual band receiving & transmitting performance, RF power and receiving sensitivity according to your demands.

General
FrequencyRange	144-146&430-440MHz(EU CE standard）*
FrequencyRange	144-148 &420-450MHz(Canada IC standard)*
Memory Channel	99 Groups
Operation Voltage	DC7.4V ±10%
Frequency Stability	±2.5ppm
Operating Temperature	-20℃ to+5℃
Mode of Operation	Simplex
Antenna lmpedance	50ohm

Transmitter Part
RF Owput Power	(VHF max）5W(UHFmax）4w
FM Modulation	11K0F3E@12.5KHz
Adjacent Channel Power	60dB @ 12.5KHz
Transmision current	≤1600mA

Receiver Part
Receive Sensitivity	0.25μV(12dB SINAD)
Adjacent Channel Selectivity	≥55dB@12.5KHz
Inter Modulation and Rejection	≥55dB@12.5KHz
Conducted Spurious Emision	≤57dB@12.5KHz
Rated Audio Power Output	1w @16 ohms
Receive current	≤380mA
Rated Audio Distortion	≤5%

QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
