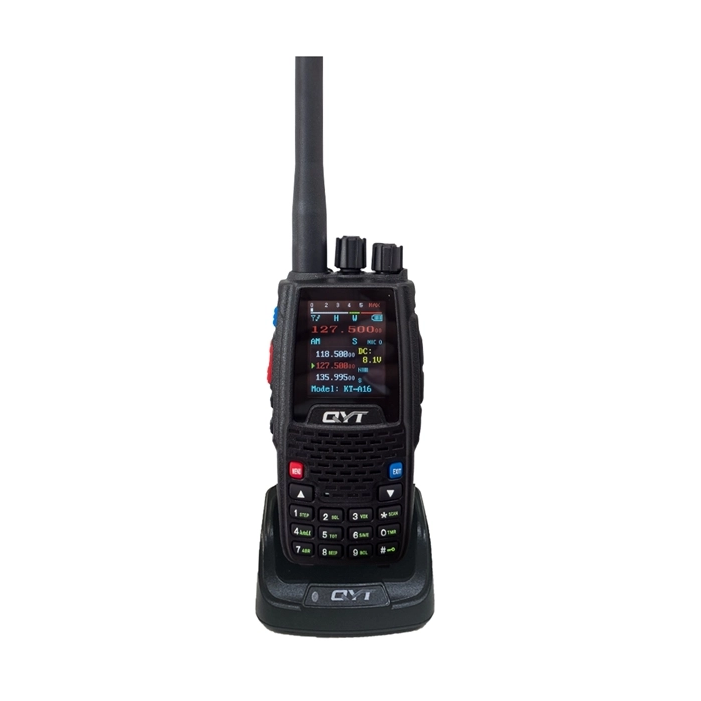

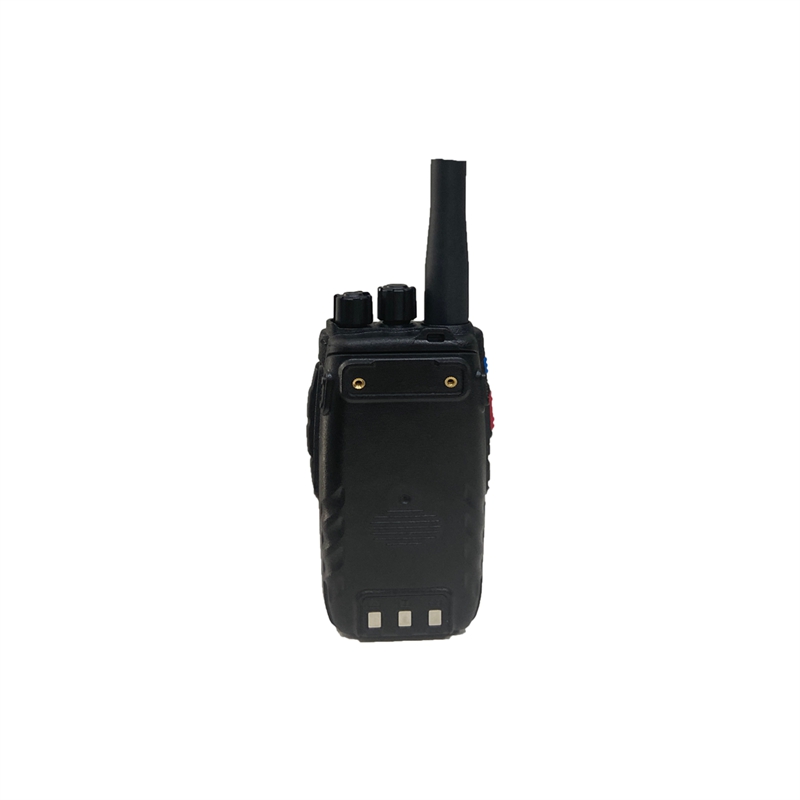

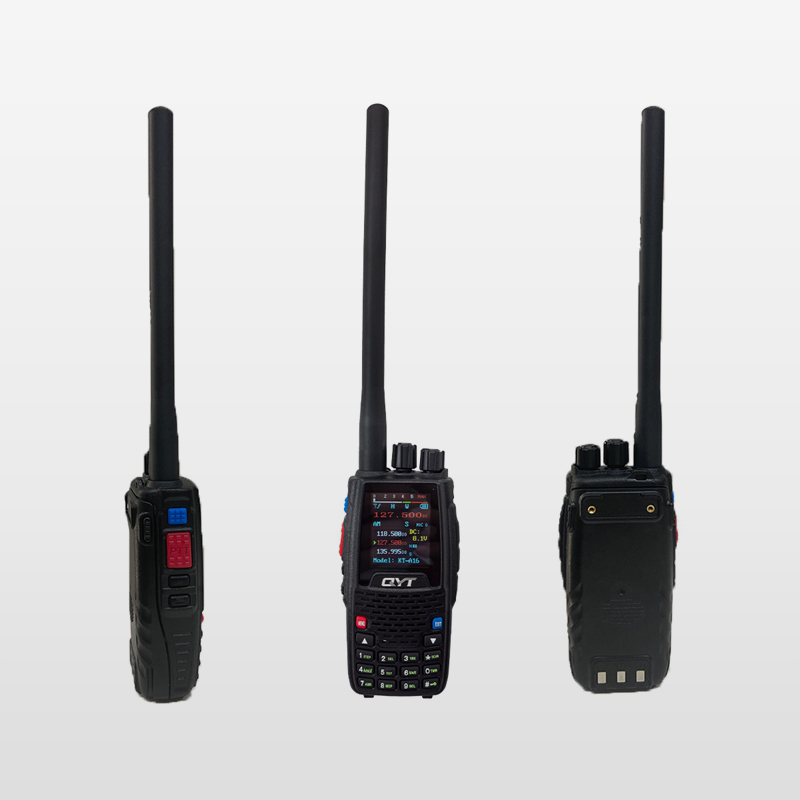

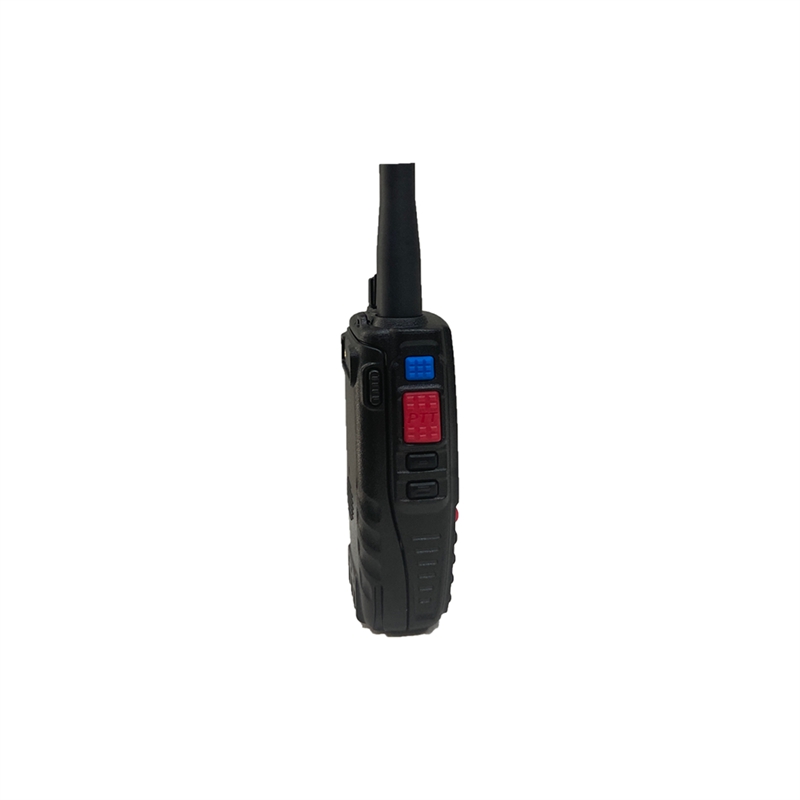

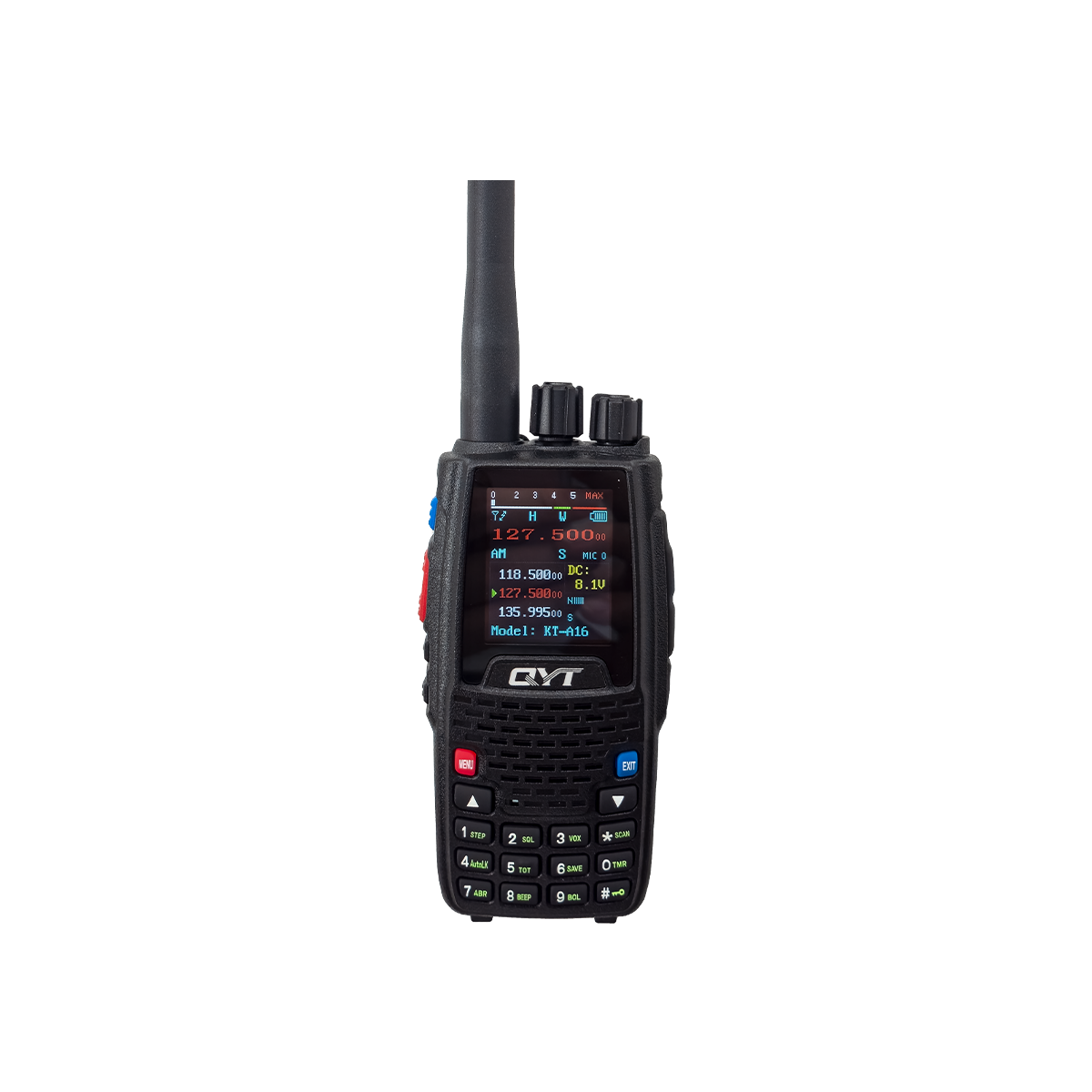

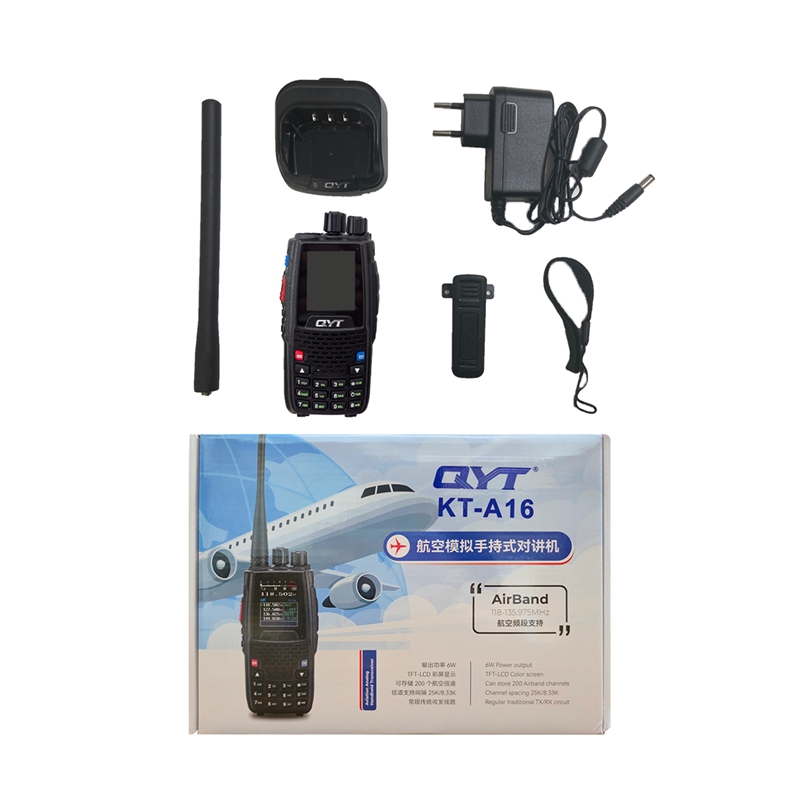

KT-A16 Air Band 118-136MHz VHF Transceiver Color Screen 200CH Aviation Walkie Talkie

KT-A16 is a new arrival color-screen handheld VHF transceiver with dedicated 118-136MHz aviation air band reception, ideal for aviation monitoring, ham radio, logistics and emergency communication. Its adjustable color LCD offers clear readability under strong sunlight, with customizable backlight, font color and display styles.
It supports VFO/MR mode switch and stores up to 200 memory channels, equipped with VOX, wide/narrow band switch, TOT protection and multi-scan modes for flexible operation. Shortcut keys, external audio jack, non-slip body and removable belt clip greatly improve portability. Powered by a safe 7.2V lithium battery with high/low power options, it provides stable long-time use. Suitable for aviation fans and industrial teams, this radio accepts OEM & ODM bulk customization.

Availability:



Inquire

Model:
KT-A16
Brand:
QYT

Walkie Talkie Air Band Handheld Transceiver High Power Anti-interference Radio Analog VHF UHF Transceiver Digital Walkie Talkie

Product Description

We offer comprehensive customized services for the KT-A16 color-screen handheld VHF transceiver. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging dock slot design, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize aviation band receiving parameters, LCD display effects and functional settings such as VOX, channel storage and scan modes according to your demands. Feel free to contact us to get detailed customization plans and quotations.

Technical Specifications
GENERAL
Frequency range	TX: 118.000 ~ 136.99166 MHz
	RX: 108.000 ~ 136.99166 MHz
	WX: 161.650 ~ 163.275 MHz
Channel spacing	25 kHz/8.33 kHz
Mode	6K00A3E/5K60A3E
Mode	16K0G3E (WX)
Number of Memory channels	200 Channels
Antenna impedance	50 Ω nominal
Antenna connector	BNC type
Power supply requirement	7.2 V DC standard
Current drain	Less than 1.8 A
Operating temperature range	–10˚C ~ +60˚C, 14˚F ~ 140˚F
Dimensions	62 (W) × 128 (H) × 35 (D) mm,
Weight (approximately)	239g with 1200mAH Battery

TRANSMITTER
Output power	6.0 W (PEP), 1.8 W (CW)
Modulation limiting	70 ~ 100%
Audio harmonic distortion	Less than 10% (at 60% modulation)
Ham and Noise ratio	More than 35 dB
Spurious emissions	More than 46 dB
Frequency stability	±0.4 kHz

RECEIVER
Receive system	Double conversion superheterodyne
Intermediate frequencies	1st 46.35 MHz, 2nd 450 kHz
Sensitivity	COM: Less than 0 dBμ (at 6 dB S/N)
	NAV: Less than 3 dBμ (at 6 dB S/N)
	WX: Less than –8 dBμ (at 12 dB SINAD)
Squelch sensitivity (Threshold)	COM/NAV: Less than 0 dBμ
Squelch sensitivity (Threshold)	WX: Less than –5 dBμ
Spurious response rejection ratio	COM/NAV: More than 60 dB
Spurious response rejection ratio	WX: More than 30 dB
