CB-58 4W 27MHz Handheld CB Radio,Long Range AM FM 12V Portable Citizen Band Walkie Talkie

CB-58 long range handheld citizen band radio operates on standard 26.965-27.405MHz CB band with dual AM & FM modulation, delivering stable 4W transmitting power for reliable short-mid distance communication. This new portable CB radio supports full user programming, channel scanning and priority channel monitoring, paired with dimmable backlit LCD for clear viewing in dark environments.
Built with PLL frequency synthesis and 12V power input, it works steadily at -20℃ to 55℃. The receiver features high sensitivity under 1uV, strong adjacent & image rejection, plus AGC circuit for consistent audio. Equipped with BNC antenna port and 3W loud audio output, it carries compact 165×67×44mm size and weighs 444.5g. Custom frequency customization is available, ideal for road travel, off-road vehicles and outdoor CB communication teams.

Availability:



Inquire

Model:
CB-58
Brand:
QYT

Walkie Talkie Mobile Radio High Power Anti-interference Radio Long Range Outdoor Walkie Talkie Dual Mode Walkie Talkie Digital Walkie Talkie

Product Description

We offer comprehensive customized services for the CB-58 long range handheld citizen band radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging dock slot design, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize CB band frequency parameters, AM & FM modulation, PLL receiving sensitivity and LCD display settings according to your demands. Feel free to contact us to get detailed customization plans and quotations.

qyt

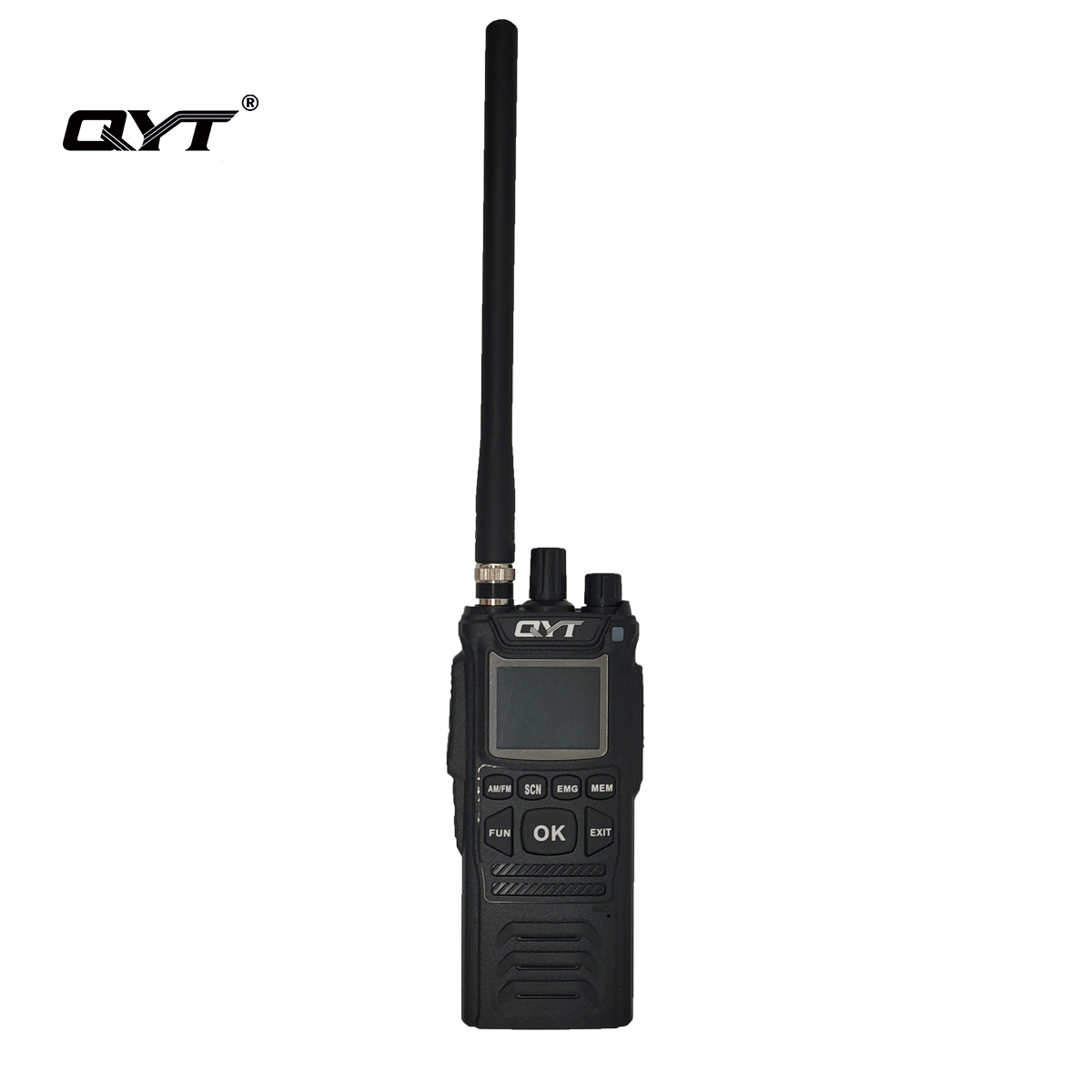

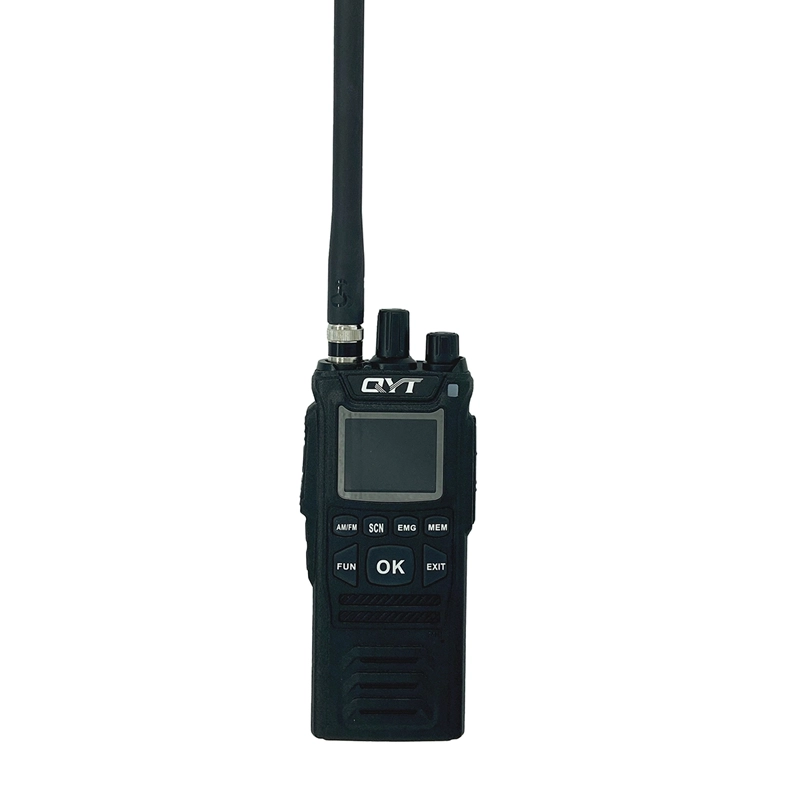

This CB-58 is our newly launched handheld CB radio, and it is also the only handheld walkie-talkie currently available on QYT.

Compatible with all handheld CB radios from many brand with a BNC connector, improve quality and range to CB radio reception. The antenna design is soft, flexible and durable, works on all channel within CB radio frequency range of 26MHz to 27 MHz.

With its compact size it can be easily installed into almost any mounting location in your vehicle.

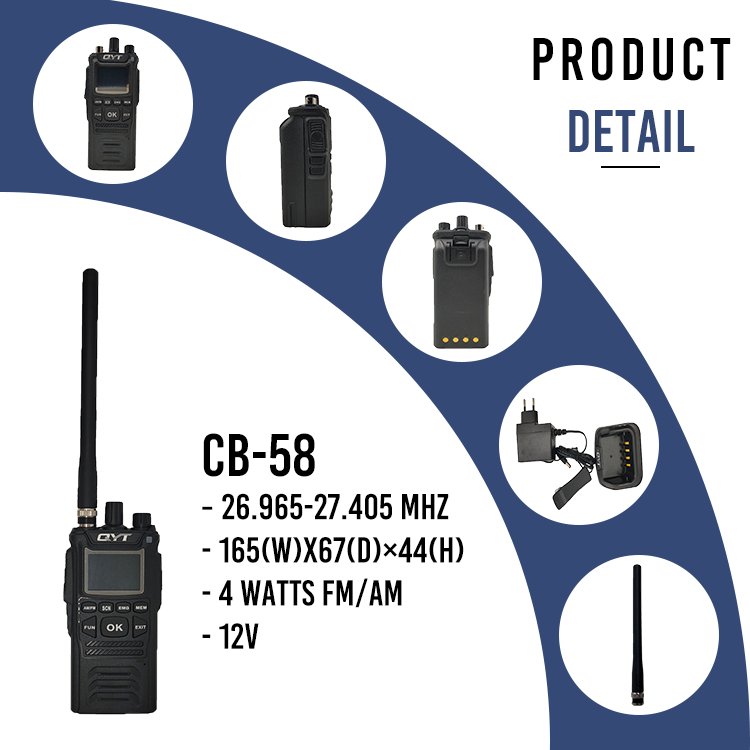

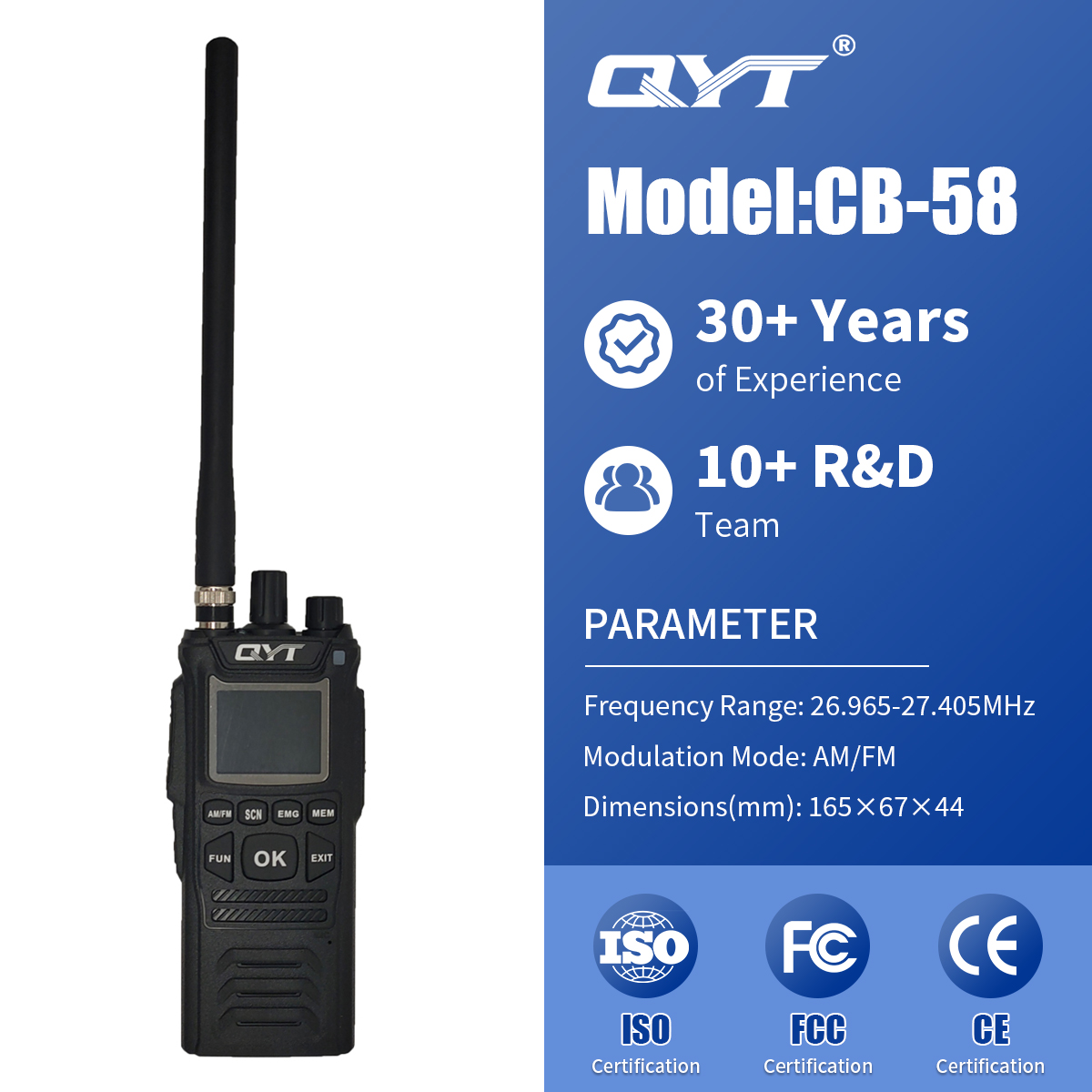

CB-58 CB-58-手持对讲机主图

SPECIFICATIONS
GENERAL
Modulation Mode	AM/FM
Frequency Range	26.965-27.405MHz
Frequency Tolerance	5.0ppm
Input Voltage	12V
Dimensions(in mm)	165(W)x67(D)×44(H)
Weight	Appro×507g
Frequency Control	PLL Synthesizer
Operating Temperature Range	-20℃ to 55℃
Transmit	2A MAX
Current Drain Receive	Squelched 0.3A
VOL Max	0.8A
Antenna Connector	BNC
TRANSMITTER
Power output	4 Watts FM/AM
Transmission interference	inferior to 4nW(-54d Bm)
Frequency Response	300-3000Hz
Modulated signal distortion	inferior to 5%
output impedance	50 ohms
RECEIVER
Sensitivity	Less than 1uV for 10dB(S+N)/N
Image Rejection	70dB
Adjacent Channel Rejection	60dB
IF Frequencies	1st 10.695MHz
IF Frequencies	2nd 455KHz
Automatic Gain Contol(AGC)	Less than 10dB change in audio
Automatic Gain Contol(AGC)	output for inputs from 10 to 50000uV
Squelch	less than 1uV
Audio Output Power	3 watts into 8 ohms
Frequency Response	300-3000Hz
