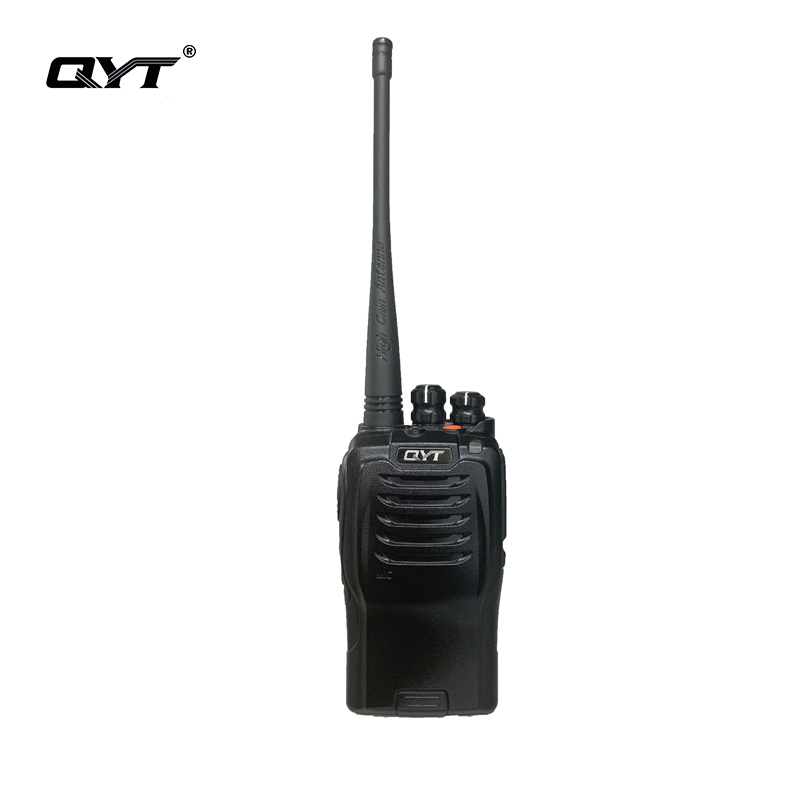

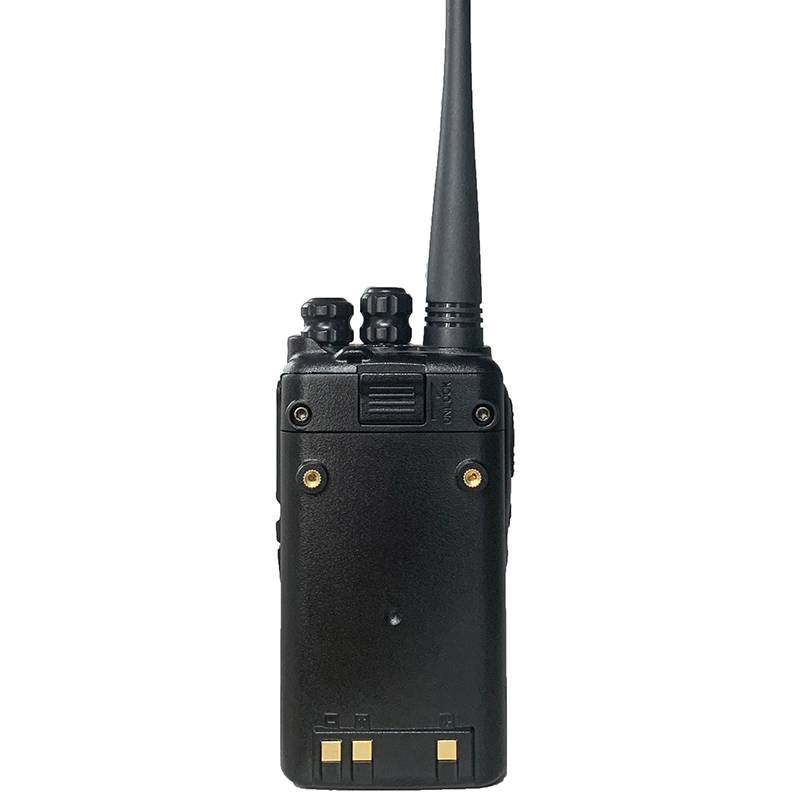

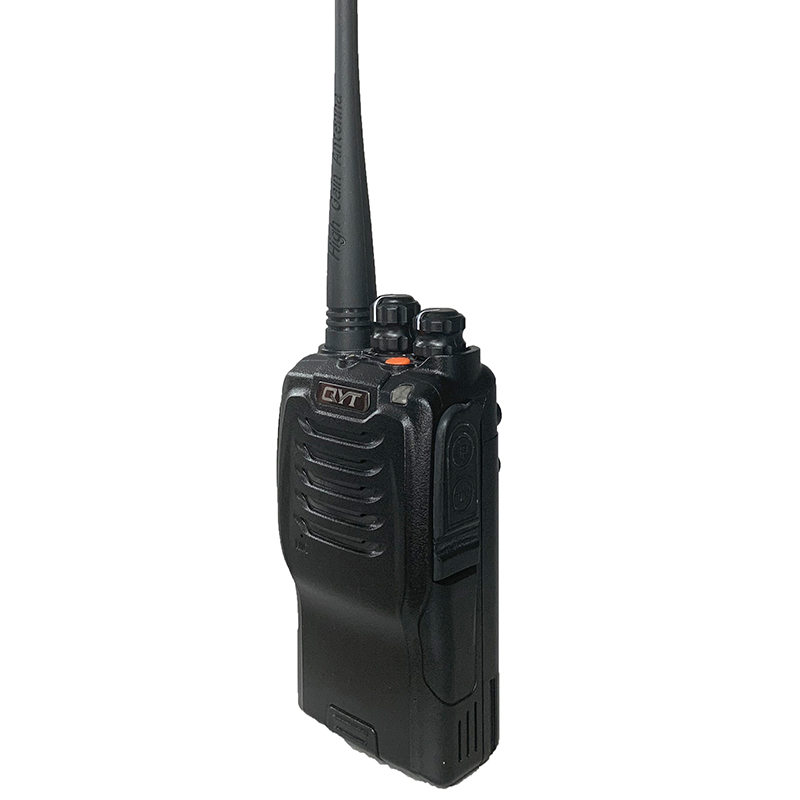

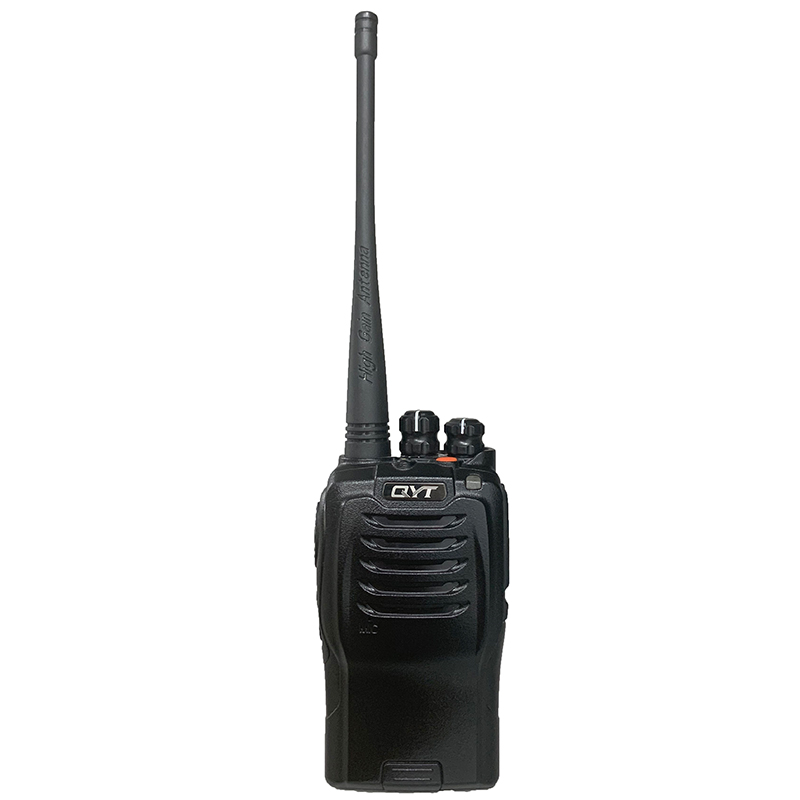

QYT KT-289G UHF 5W 128Ch Stable Signal Professional Handheld Walkie Talkie

This QYT KT-289G is a UHF professional walkie talkie with 5W output power and 128 memory channels, frequency range 400-470MHz. Adopting traditional chips, it delivers more stable signal transmission and reception. It features a simple black screenless design, ideal for police, rescue teams and commercial scenarios.

Availability:



Inquire

Model:
KT-289G(UHF)
Brand:
QYT

business two way radio handheld 2 way radios long distance amateur radio walkie talkie reviews professional walkie talkie

Product Description

We offer comprehensive customized services for the QYT KT-289G handheld radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize receiving & transmitting parameters according to your demands. Feel free to contact us to get detailed customization plans and quotations.

QYT KT-289G UHF 5W 128Channels Commercial Two Way Radio

KT289 is a professional walkie talkie using traditional chips. To compared with the integrated chip walkietalkie, it has greater advantages, more stable reception and transmission of signals. It is very suitable for the use of military, police and rescue teams.

Black simple appearance without screen, mature and stable and revealing elegance, is the best choice for commercial use.

It provide 128 channels of memory, 5W output power and 400-470KHz frequency, can satisfy most of the groups and scenarios.

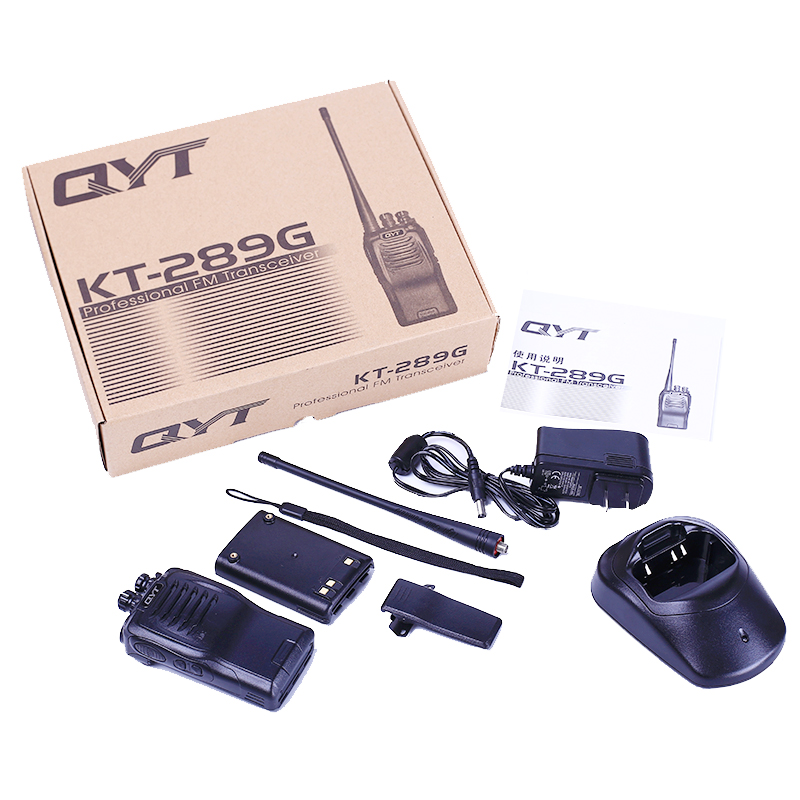

The KT-289G Kit includes:

Radiostation

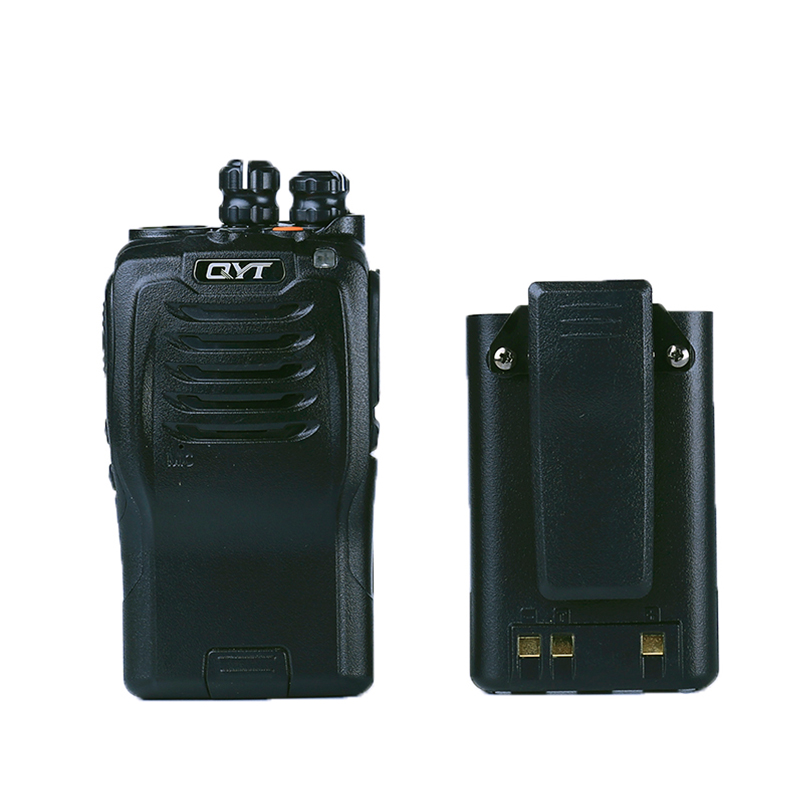

2000mAh battery pack

Charger base

AC/DC power cable

Battery belt clip

Strap

User's manual

General Specification
Item	Specification
Frequency Range	UHF: 400-470MHz
Channel Capacity	128channels
Channel Spacing	25KHz, 20KHz, 12.5KHz
Channel Step	5KHz, 6.25KHz
Working Voltage	7.4V DC ±15%
Frequency Stability	±2.5ppm
Operating Temperature	-20℃~+55℃
Dimension(mm)	260(W)60(H)35(D) (with antenna)
Weight	208g

Receive Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Sensitivity	≤0.25 μV	≤0.35 μV
Channel Choice	≥70 dB	≥60 dB
Intermodulation	≥65 dB	≥60 dB
Spurious Rejection	≥70 dB	≥70 dB
Audio Response	+1 ~ -3dB (0.3–3KHz)	+1 ~ -3dB (0.3–2.55KHz)
Signal To Noise Ratio	≥40dB	≥36dB
Audio Distortion	≤5%
Audio Output Power	100mW/10%

Transmit Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Output Power	5W/2W/0.5W (Settable)
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70 dB	≥60 dB
Signal Noise Ratio	≥40 dB	≥36 dB
Parasitic Harmonic	≥60 dB	≥60 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Audio Distortion	≤5%
