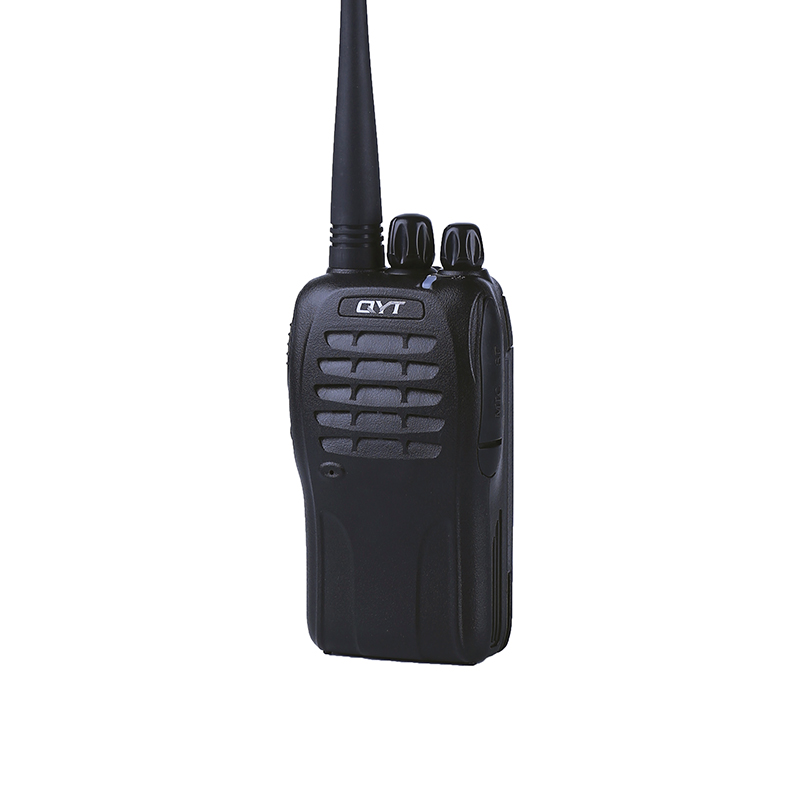

KT-Q9
QYT
We offer comprehensive customized services for the QYT KT-Q9 handheld radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging dock slot design, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize function parameters according to your demands. Feel free to contact us to get detailed customization plans and quotations.

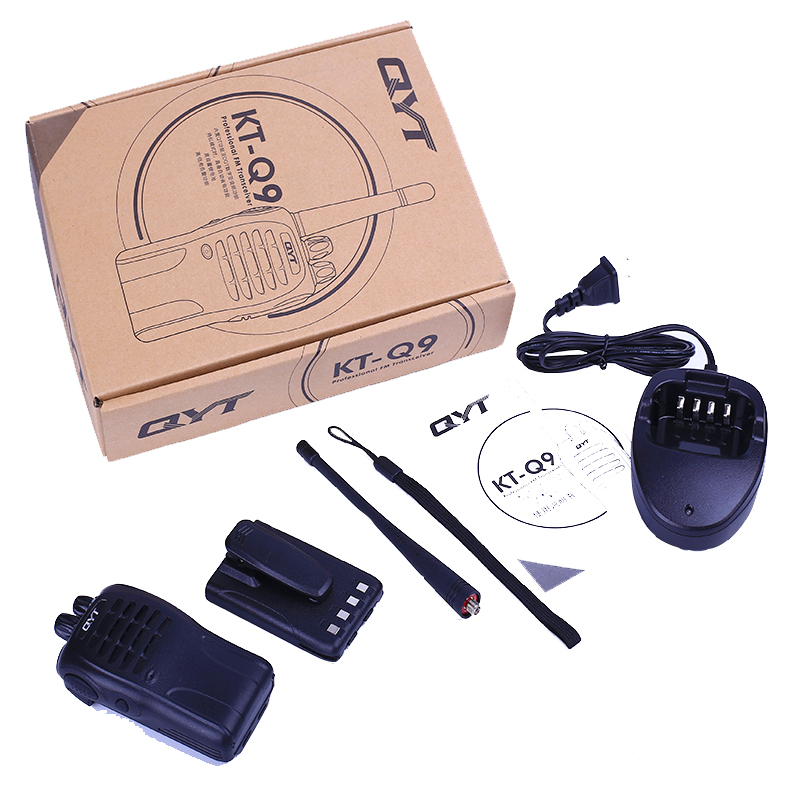

The KT-Q9 Kit includes:
Radiostation

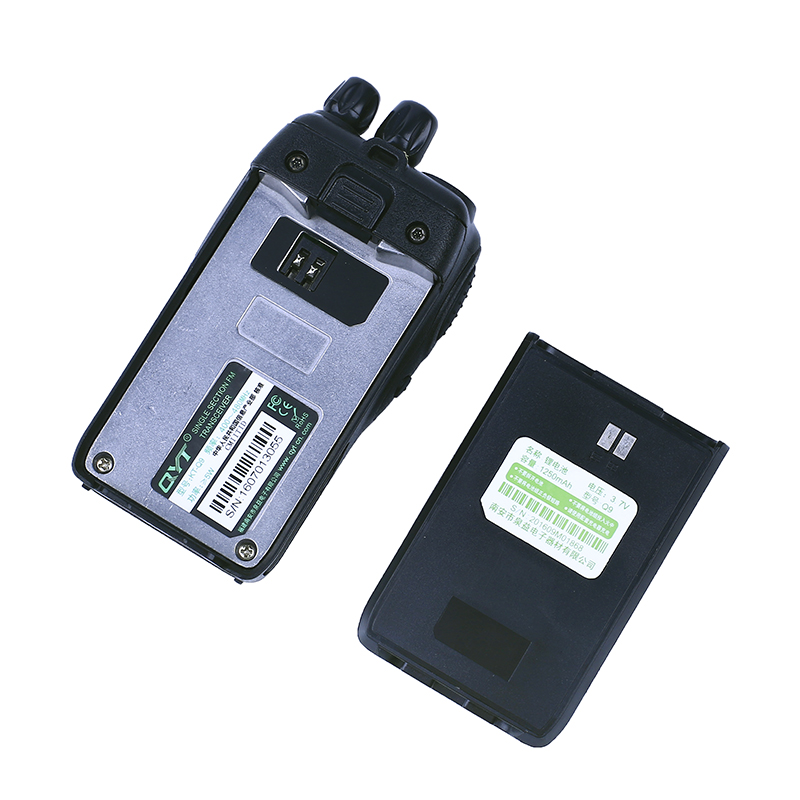

1250mAh battery pack

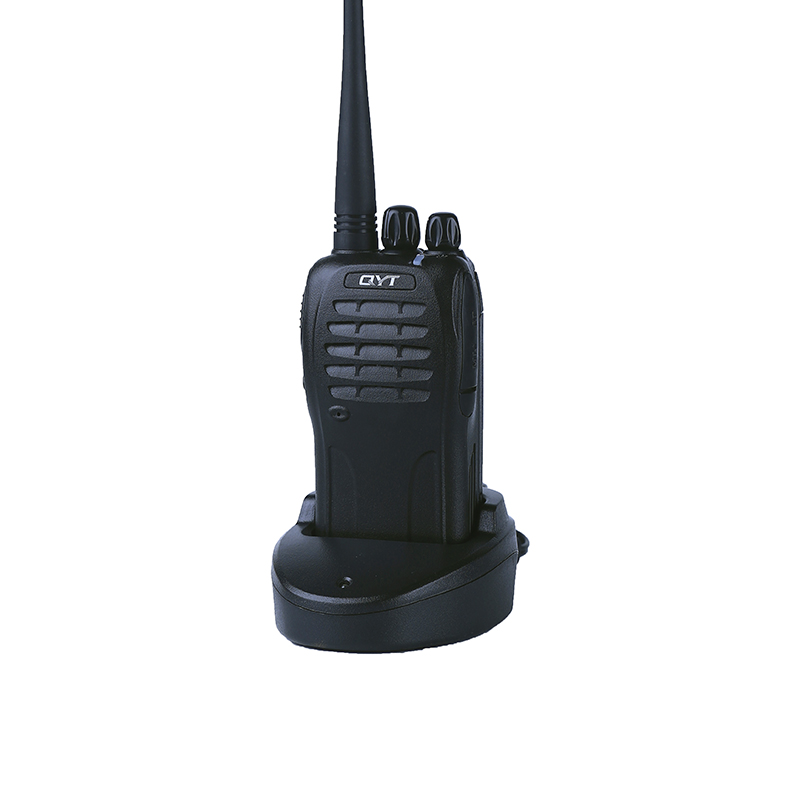

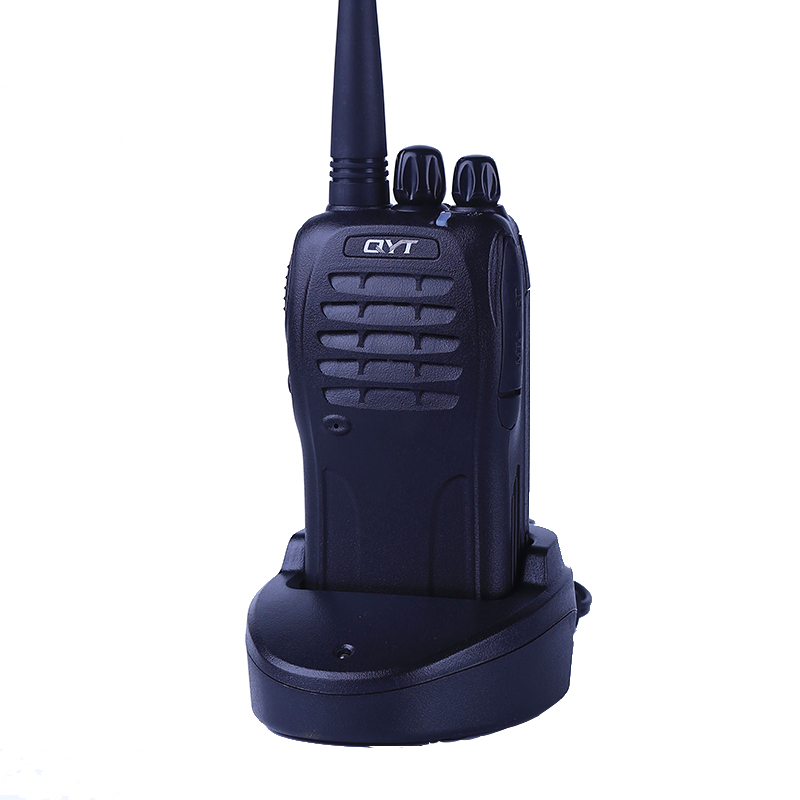

Charger base
AC/DC power cable

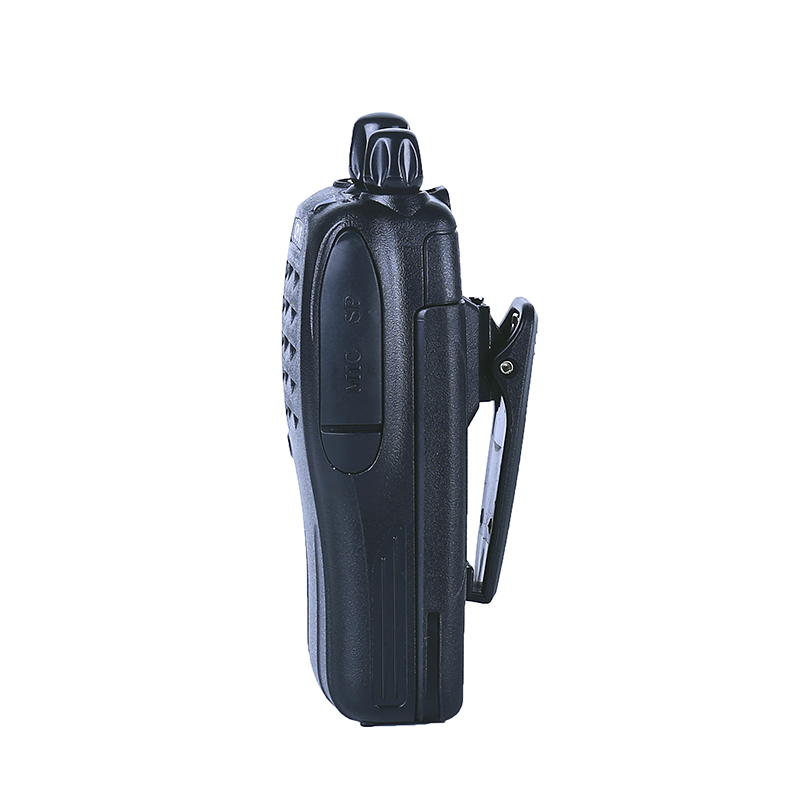

Battery belt clip
Strap
User's manual
| General Specifications | |
|---|---|
| Frequency Range | UHF: 400-470MHz |
| Channel Capacity | 16 channels |
| Channel Spacing | 25KHz, 20KHz, 12.5KHz |
| Channel Step | 5KHz, 6.25KHz |
| Working Voltage | 7.4V DC ±15% |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20℃~+55℃ |
| Dimension(mm) | 260(W)*57(H)*38(D) (with antenna) |
| Weight | 167g |
| Receiver (ETSI EN 300 086 Standardized.Test) | ||
| Wide Band | Narrow band | |
| Sensitivity | ≤0.25μV | ≤0.35μV |
| Channel chioce | ≥70dB | ≥60dB |
| Intermodulation | ≥65dB | ≥60dB |
| Spurious Rejection | ≥70dB | ≥70dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.55KHz) |
| Signal to noise ratio | ≥40dB | ≥36dB |
| Audio distortion | ≤5% | |
| Audio output power | 100mW/10% | |
| Transmitter (ETSI EN 300 086 Standardized.Test) | ||
| Wide Band | Narrow band | |
| Output power | 4W | |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70dB | ≥60dB |
| Signal noise ratio | ≥40dB | ≥36dB |
| Parasitic harmonic | ≥60dB | ≥60dB |
| Audio response | +1~ -3dB(0.3~3KHz) | +1~ -3dB(0.3~2.25KHz) |
| Audio distortion | ≤5% | |
QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
