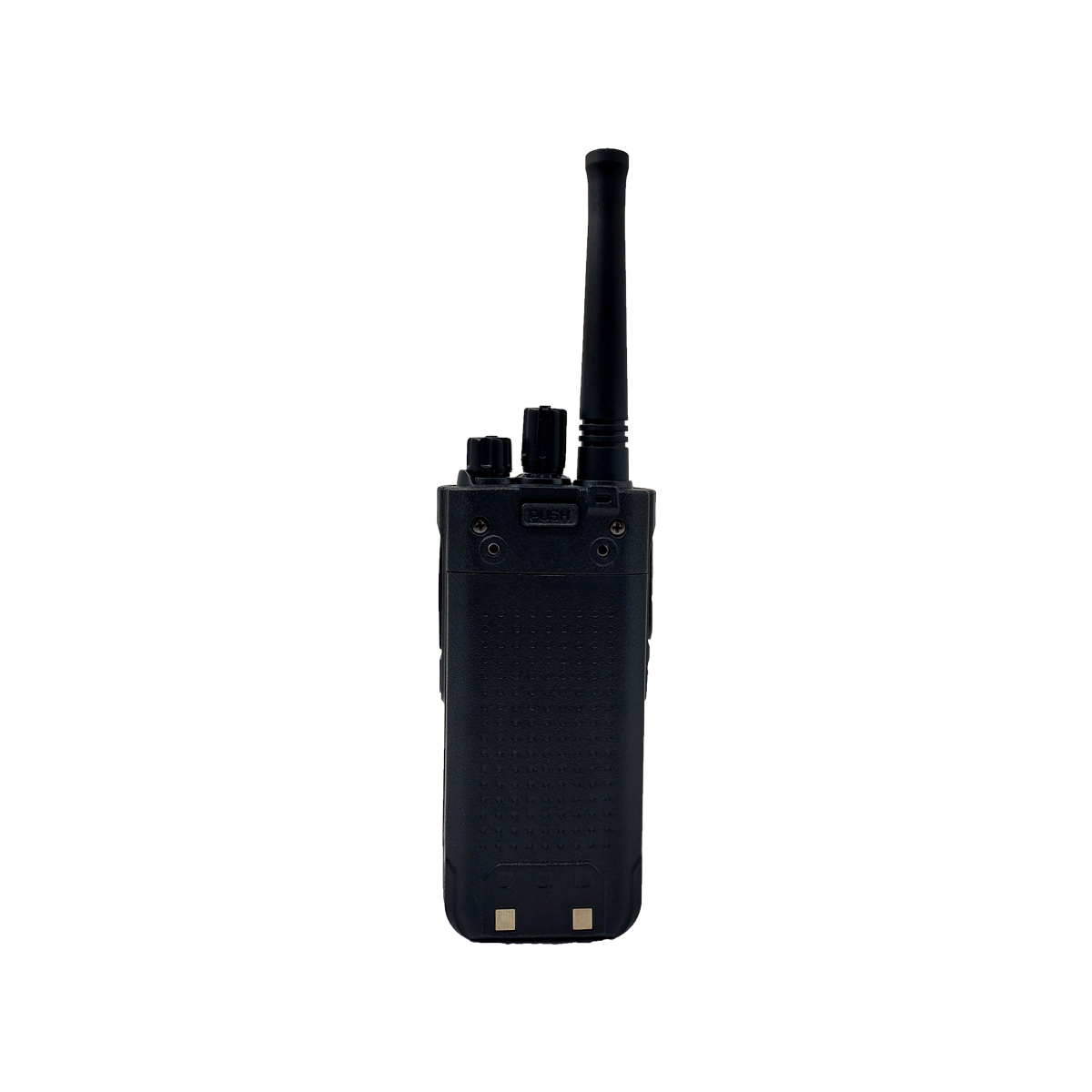

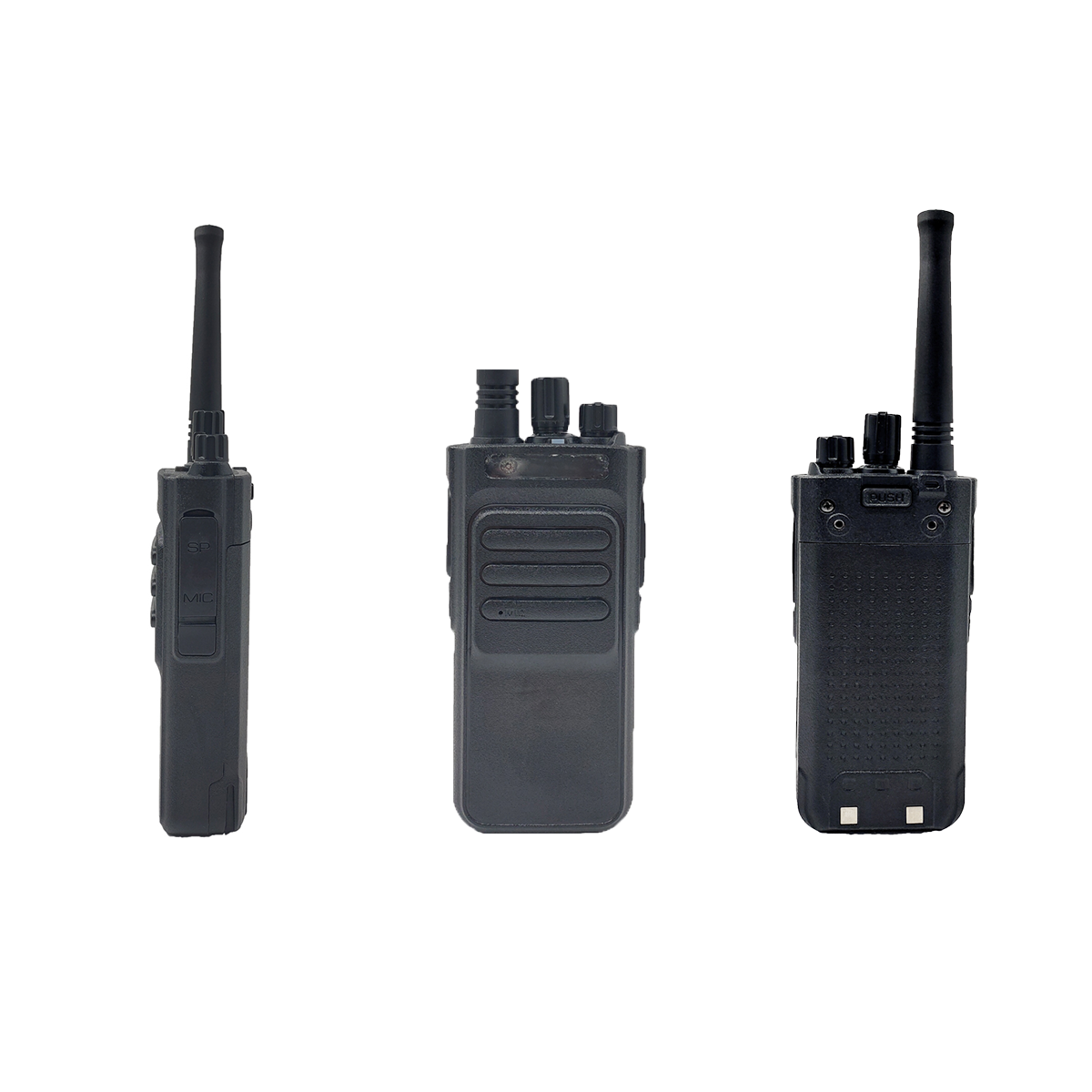

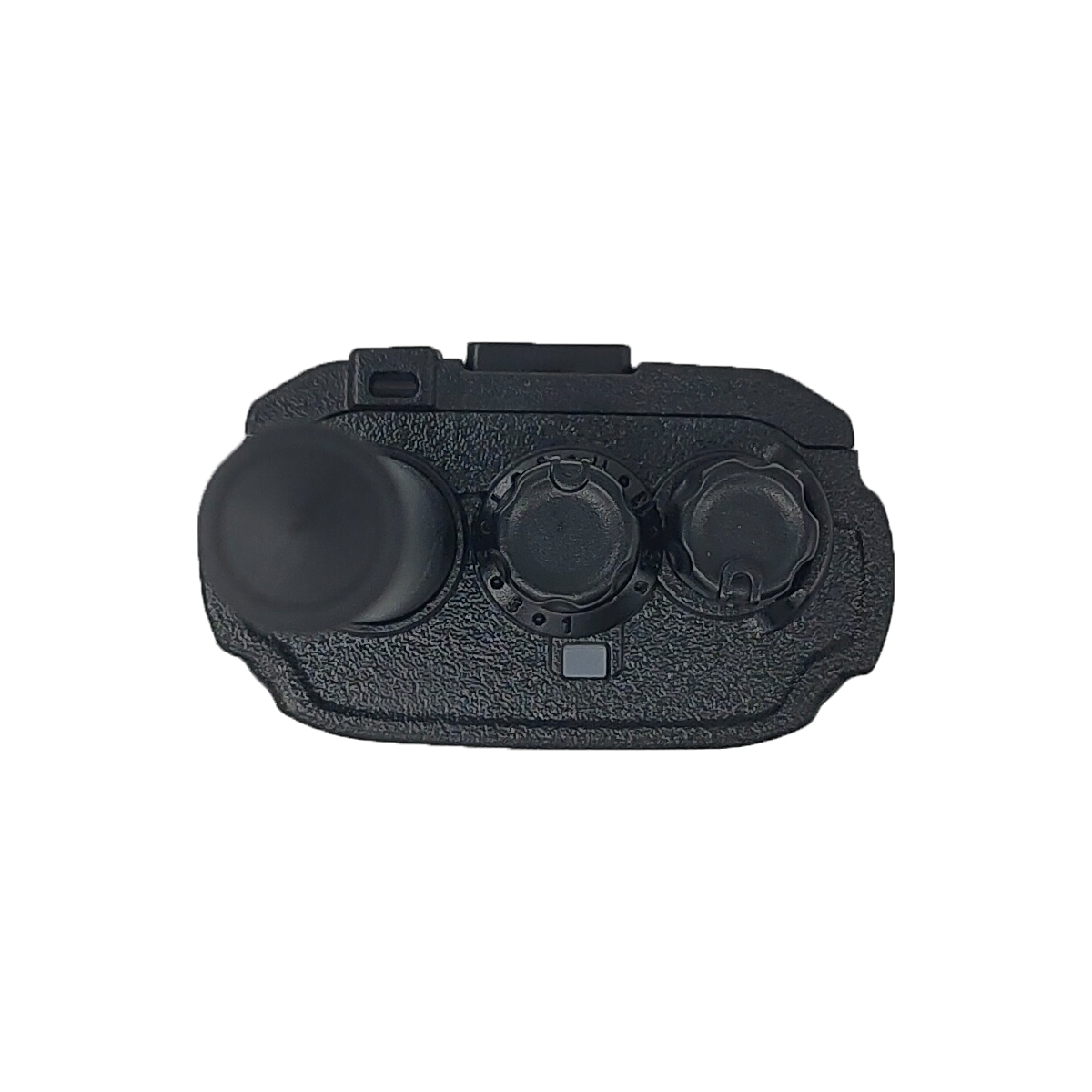

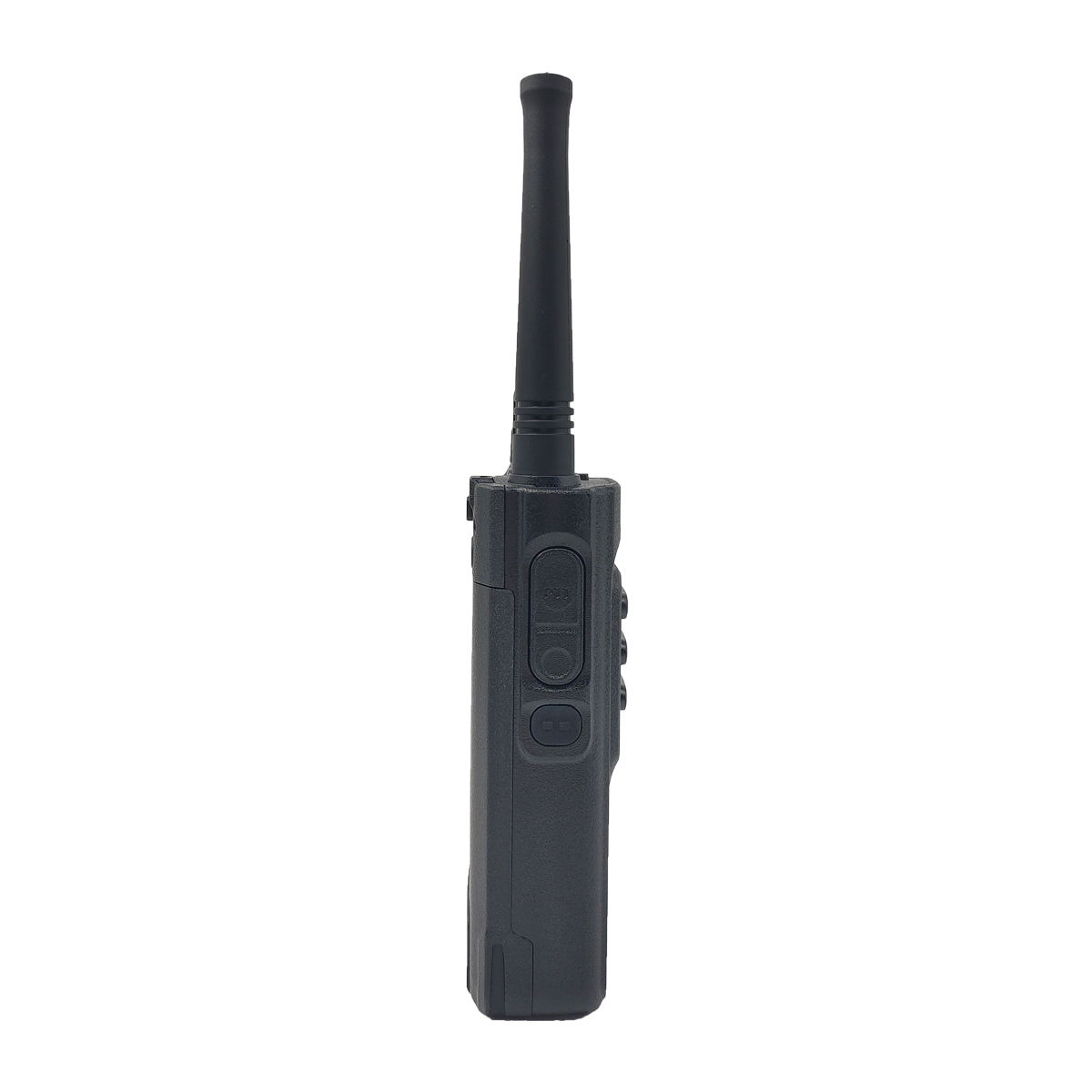

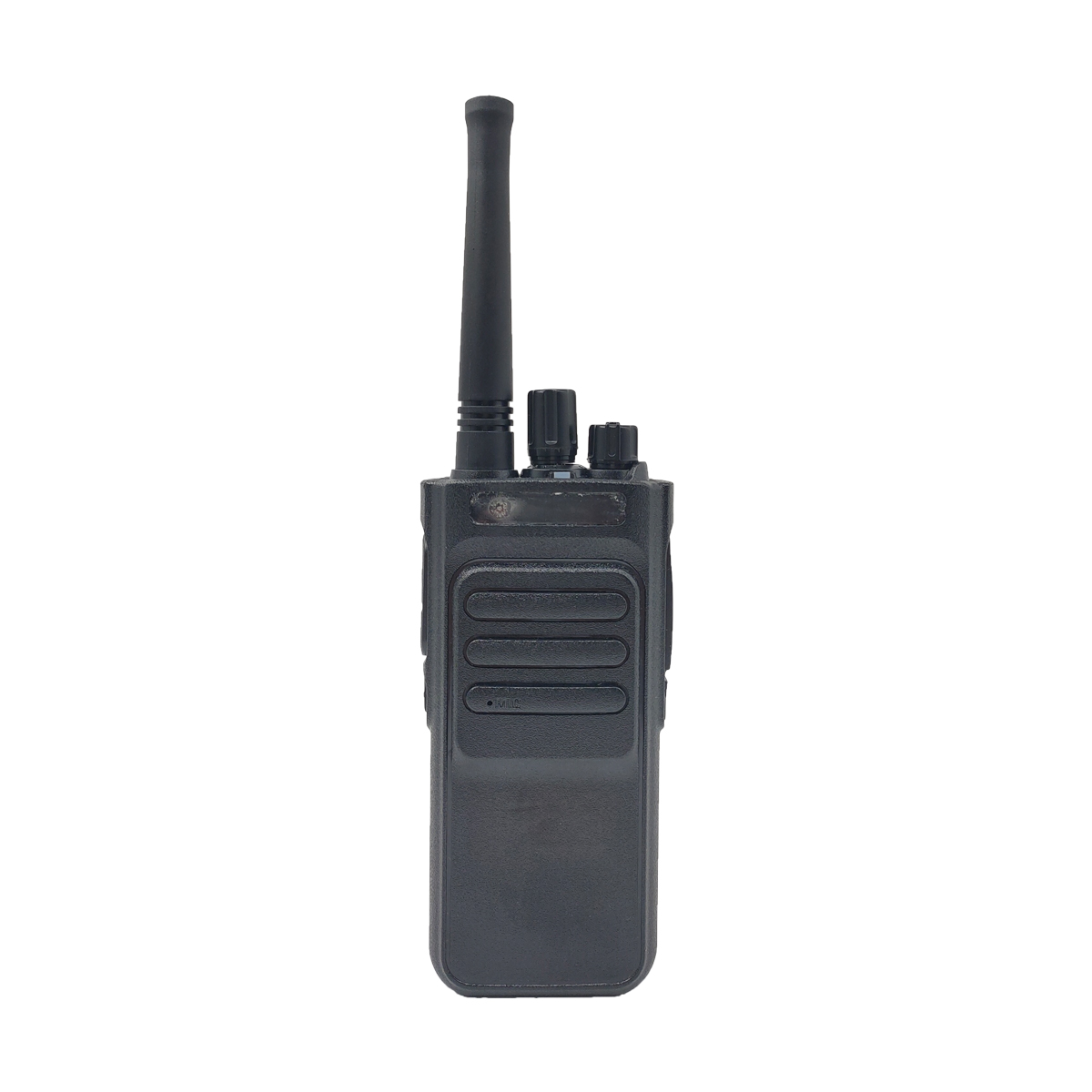

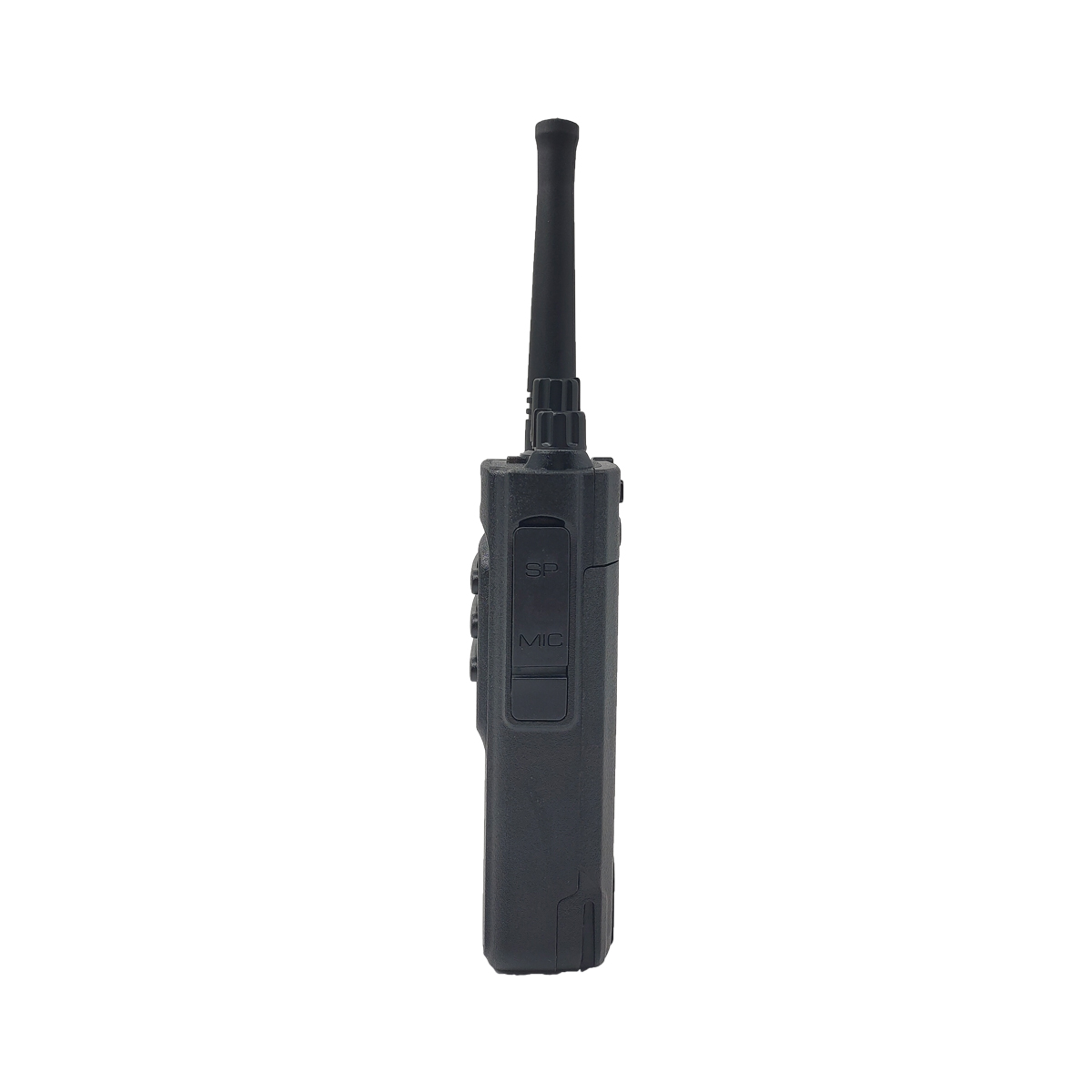

AH-U/V11 QYT Analog Single Band Walkie Talkie VHF UHF 16CH Long Range Radio

QYT AH-U/V11 is a screen-free analog single band walkie talkie with optional VHF 136-174MHz or UHF 400-480MHz, supporting 16 channels with simplex and duplex communication modes. Its dimension is 100×55×35mm and total weight is 250g with battery pack, operating normally from -20℃ to +60℃. It features max 9W transmitting power, stable frequency within ±2.5ppm, excellent receiving sensitivity and clear 400mW audio output. Low standby current with power save mode makes it suitable for construction sites, security patrol and warehouse team communication.

Availability:



Inquire

Model:
AH-U/V11
Brand:
QYT

AH-U/V11 analog walkie talkie 16 channel long range portable radio No screen analog handheld radio 9W high power security walkie talkie Simplex duplex industrial communication radio

Product Description

We offer comprehensive customized services for the AH-U/V11 handheld radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging dock slot design, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize analog radio frequency parameters according to your demands. Feel free to contact us to get detailed customization plans and quotations.

AH-U/V11 No Screen Analog VHF UHF Portable Two Way Radio

Specification
Frequency Range	136-174MHz/400-480MHz
Operating Temperature Range	-20℃~+60℃
Channel Capacity	16 Channels
Communication System	Simplex or Double
Dimension	100×55×35mm
Weight	250g(including Battery Pack)
TX Power	≤9w
Modulation Type	FM(F3E)
Frequency Deviation	≤±5KHz
Spurious Emission	<-60dB
TX Current	0.7A
Frequency Stability	±2.5ppm
RX Sensitivity	<0.18uV
Audio Output Power	>400MW
Standby Current	46mA(Power Save Condition:20mA)

QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
