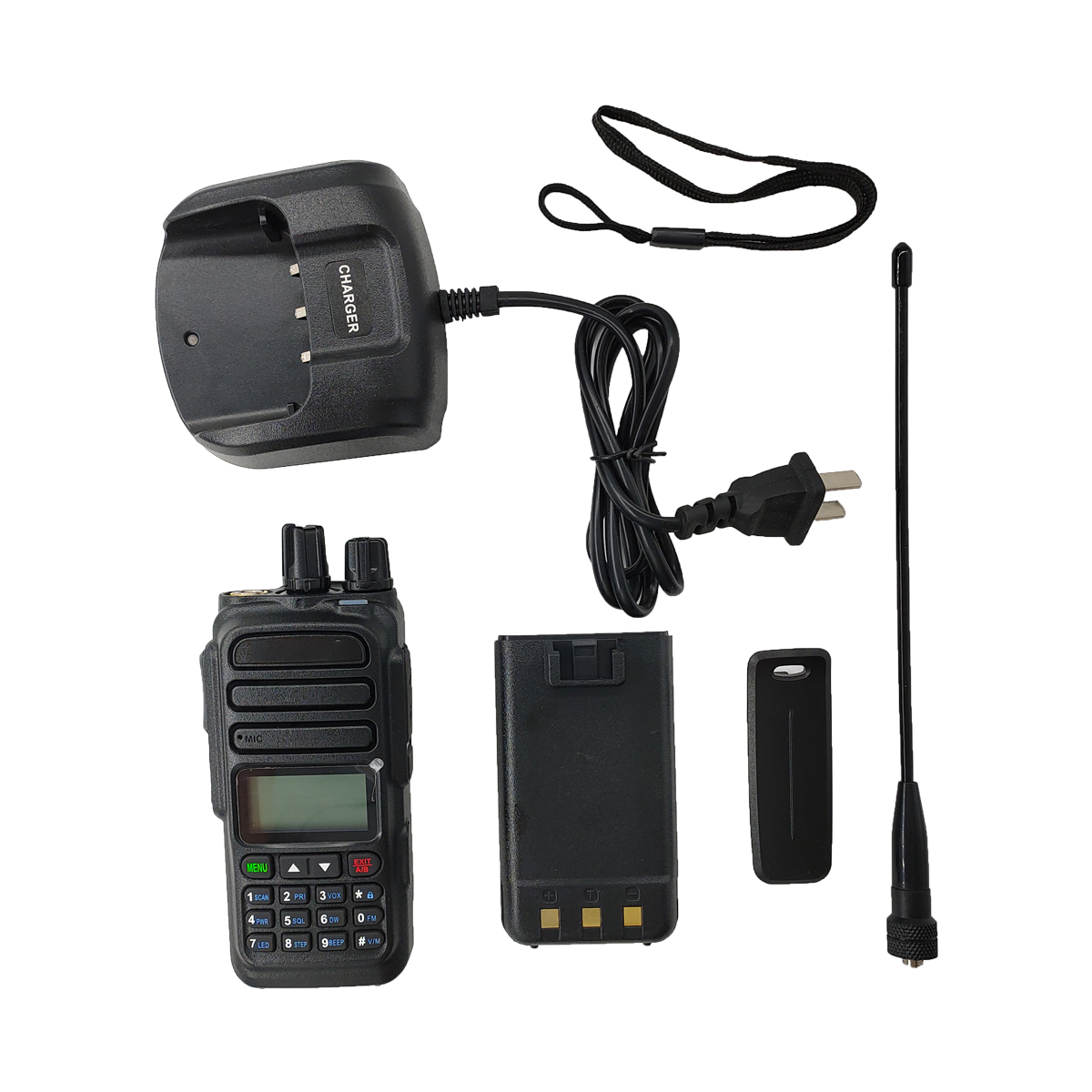

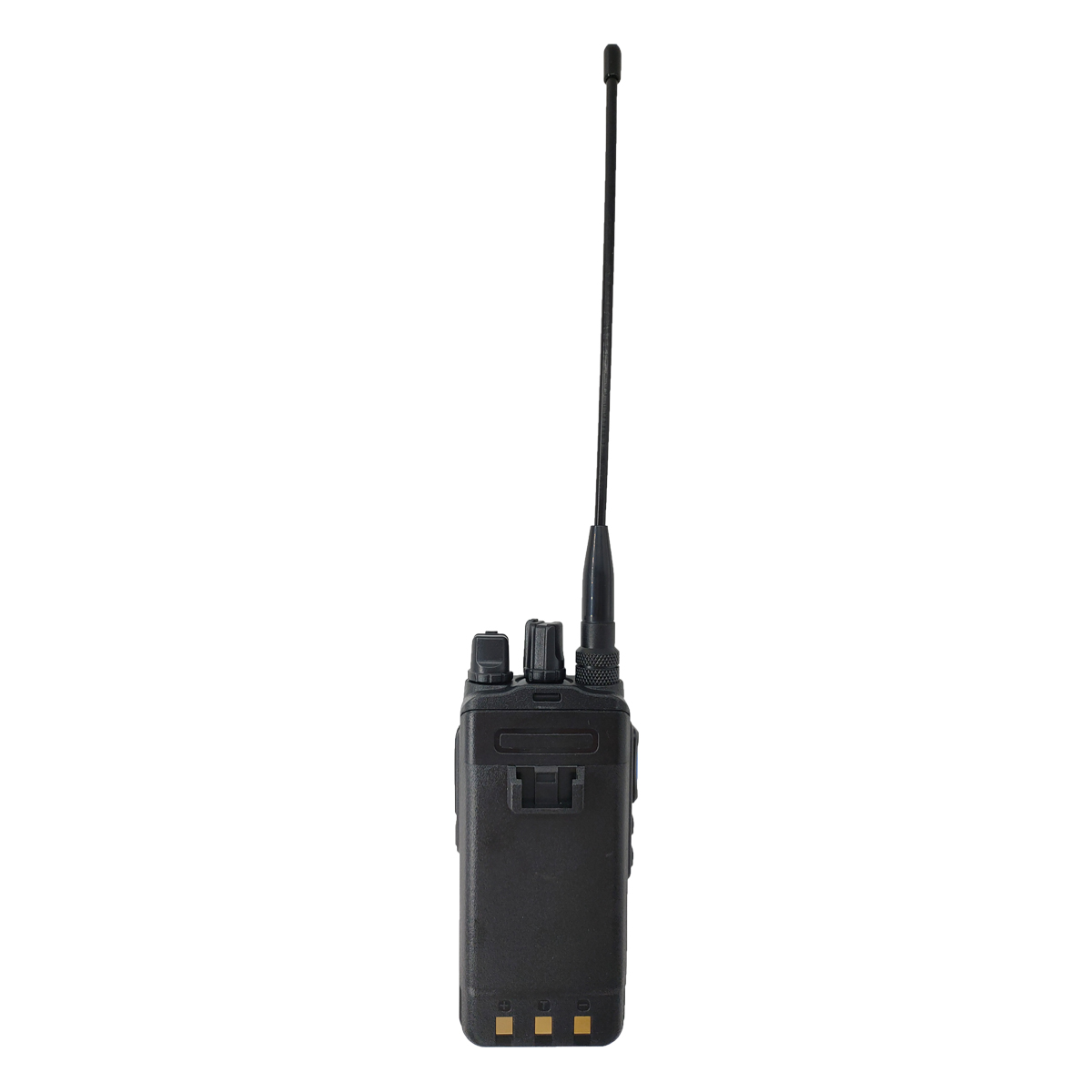

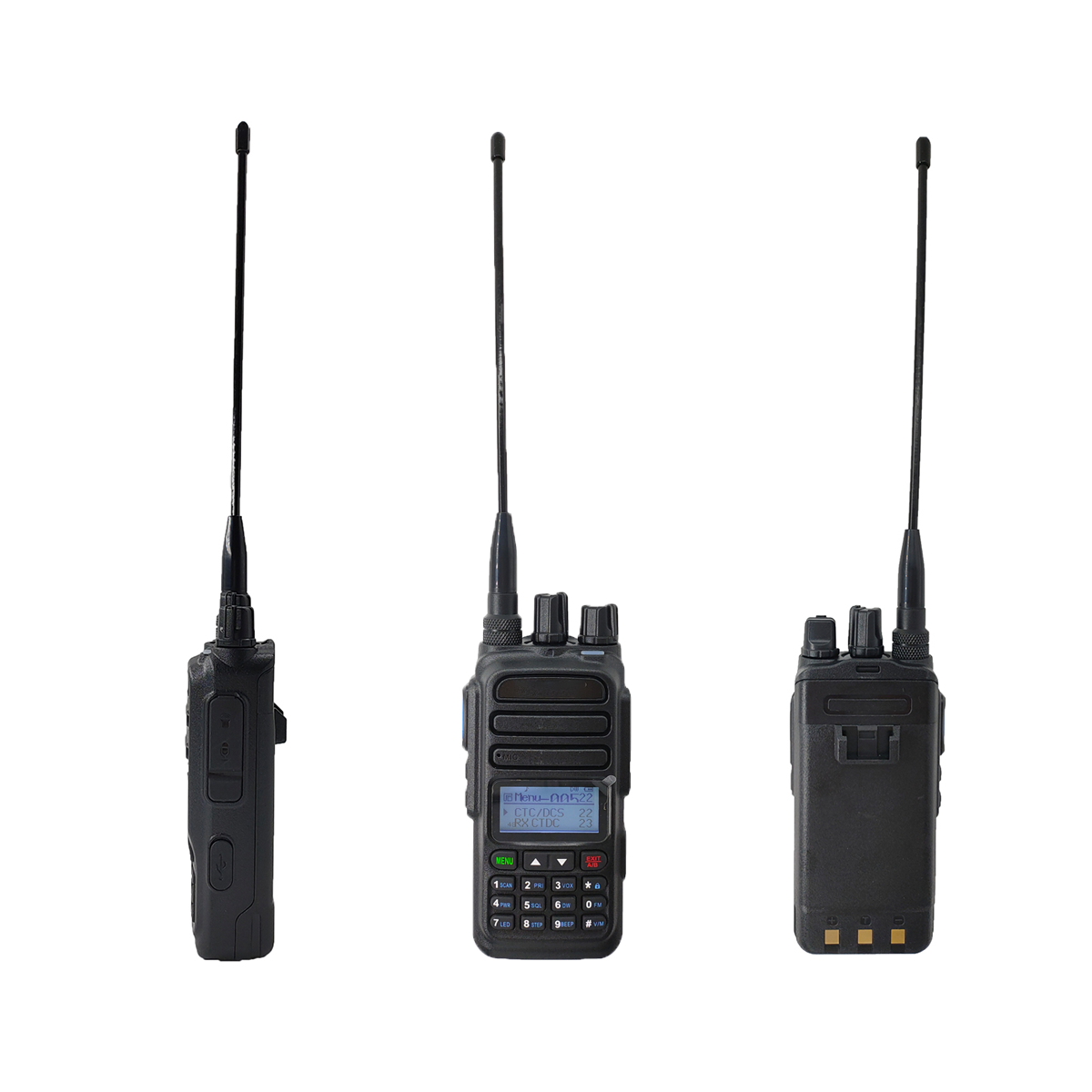

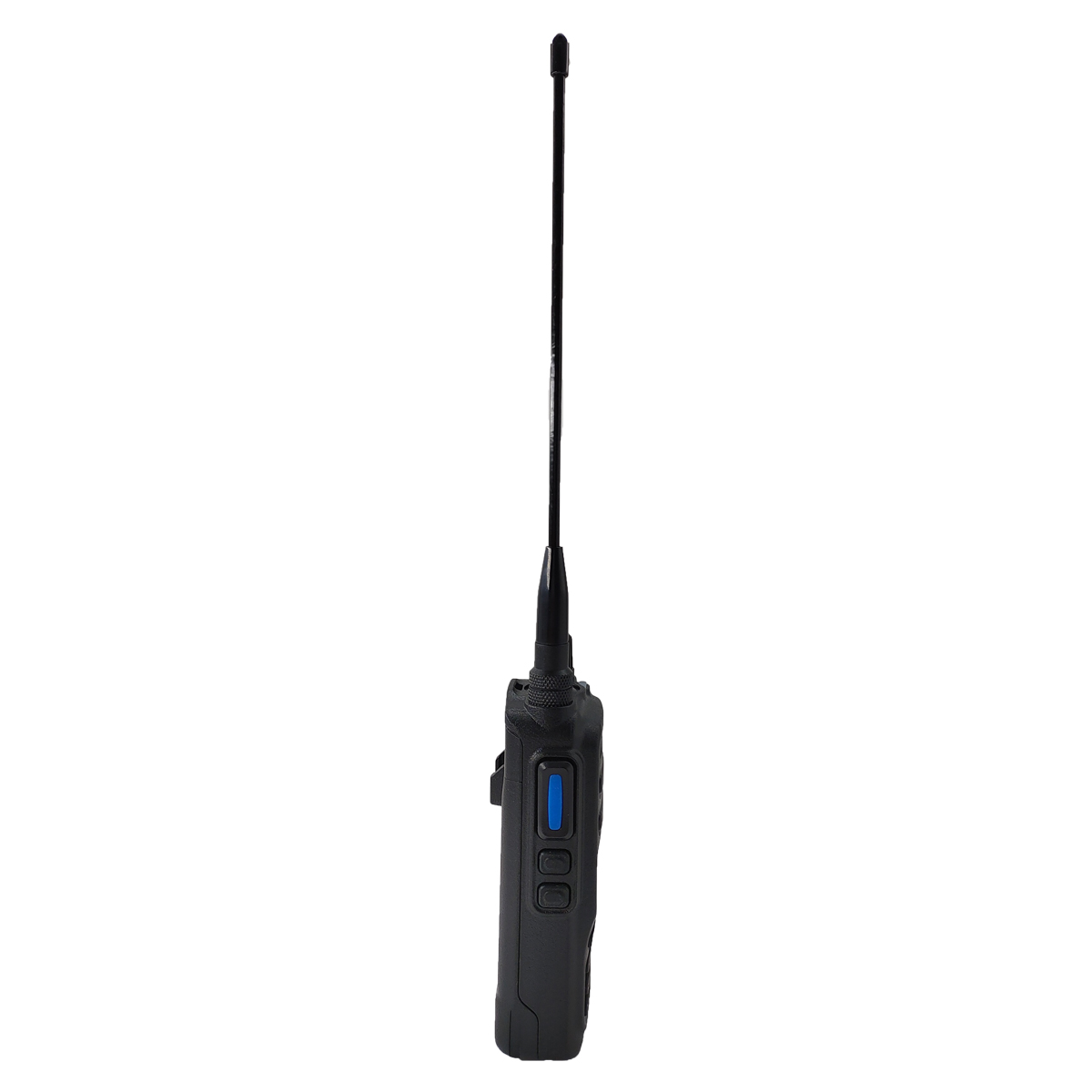

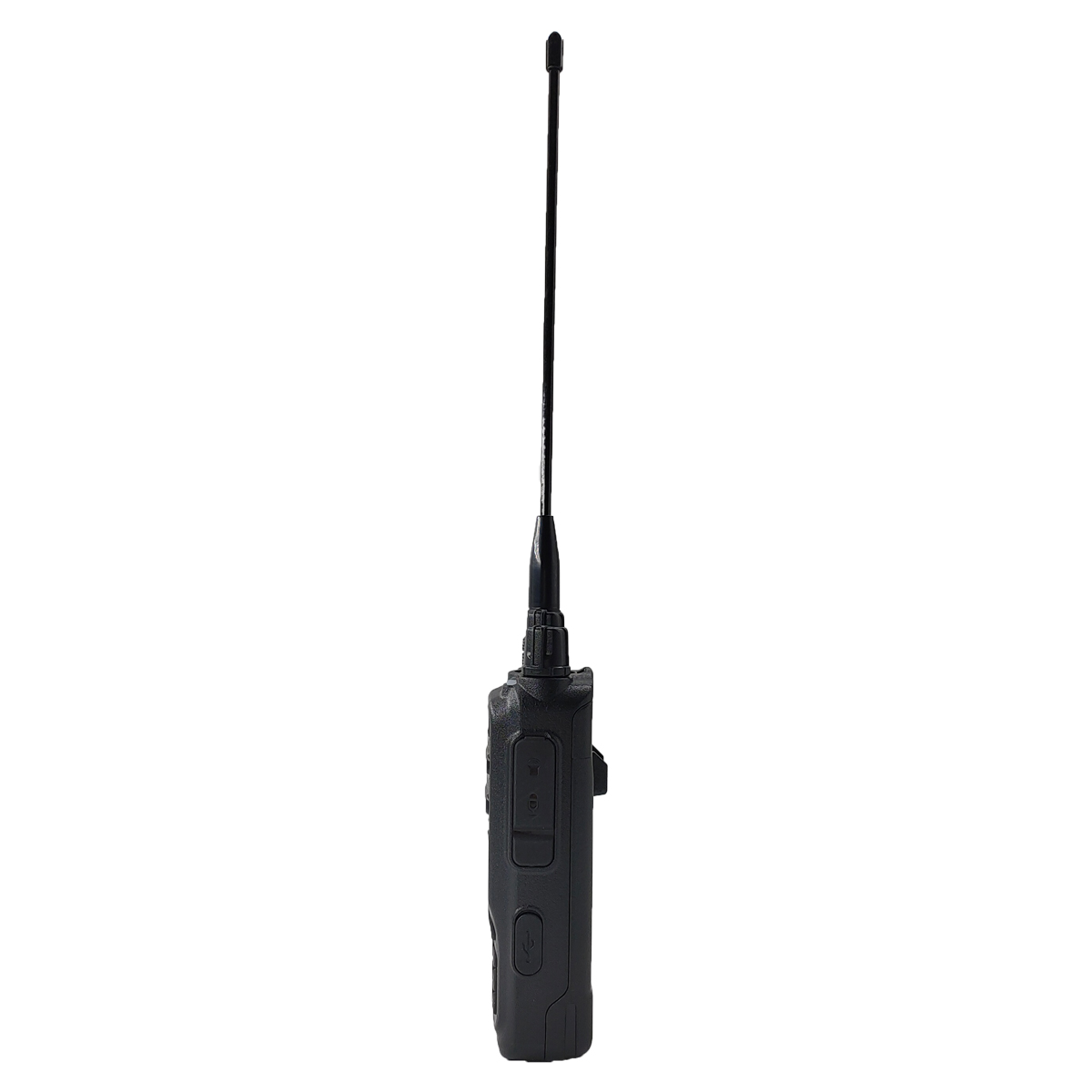

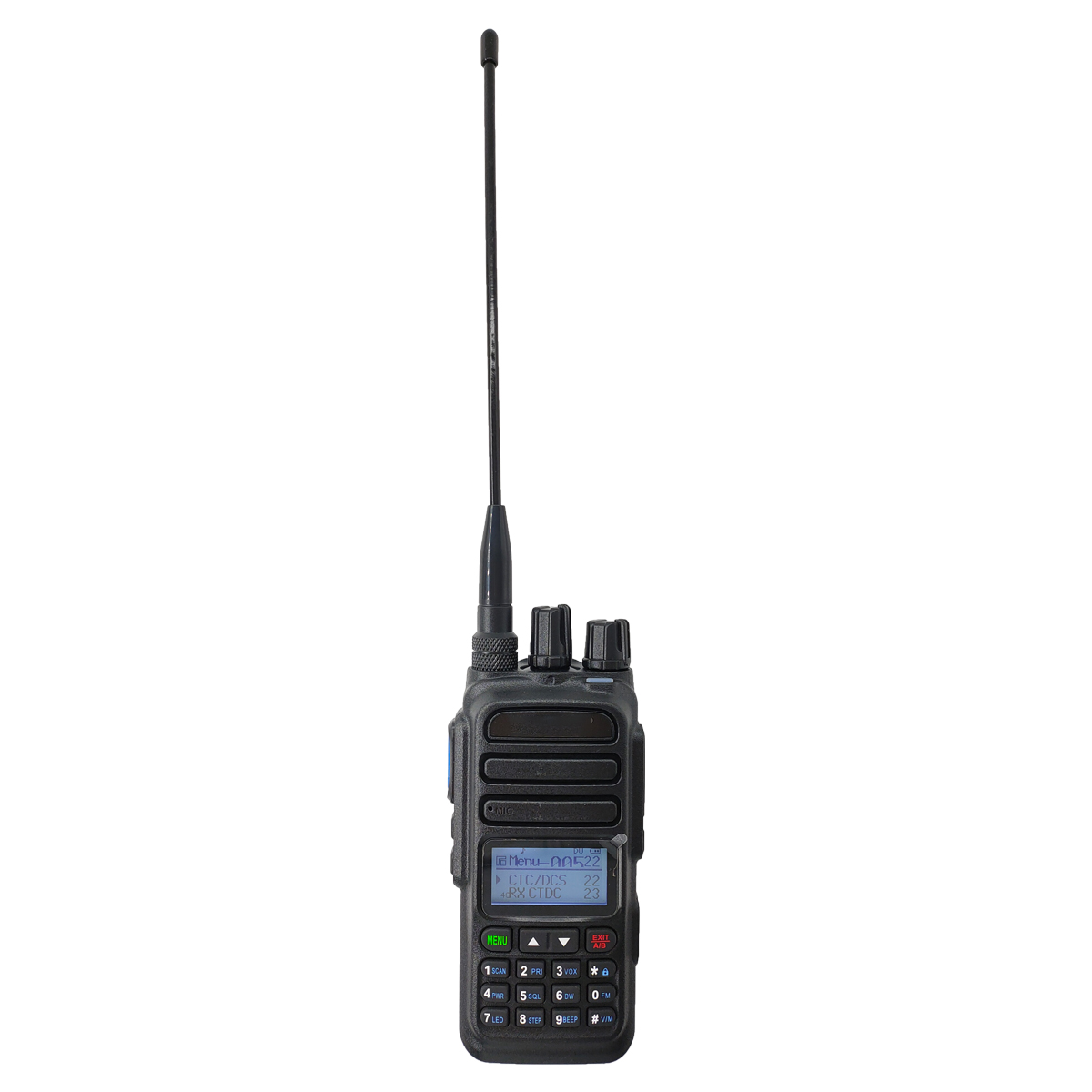

AH-UV14 128CH Dual Band Handheld Radio USB Charging Long Range Analog Walkie Talkie

This new QYT AH-UV14 analog dual band walkie talkie supports TX on VHF 136-174MHz & UHF 400-520MHz, with wide RX coverage from 64-520MHz including FM broadcast. It stores 128 memory channels, supports 25kHz/12.5kHz channel spacing and simplex cross-band communication. Powered by 7.4V DC with USB charging design, it delivers ultra-low standby current ≤70mA and high receiving sensitivity down to 0.22μV. Stable from -20℃ to +60℃, lightweight 225g body fits outdoor hiking, warehouse and construction team communication. Feel free to contact us to get detailed customization plans and quotations.

Availability:



Inquire

Model:
AH-UV14
Brand:
QYT

Analog VHF UHF Transceiver Dual Mode Walkie Talkie Type-C Charging Radio High Power Anti-interference Radio Long Range Outdoor Walkie Talkie

Product Description

We offer comprehensive customized services for the AH-UV14 handheld radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging dock slot design, battery capacity and other hardware specifications. We can also adjust partial internal circuit structures and optimize dual band receiving, sensitivity and channel spacing parameters according to your demands.

SPECIFICATIONS
General
Frequency range	TX: VHF 136-174MHz & UHF 400-520MHzRX only: 64-108MHz(FM); 108-136MHz(FM); 136-520MHz
Channel capacity	128 CH
Channel spacing (W/N)	25kHz/12.5kHz
Voltage	7.4V DC
Working mode	Same frequency simplex / Different frequency simplex
Antenna type	Removable
Frequency stability	±2.5ppm
Working temperature	−20 ~ +60℃
Dimension	134× 59 × 38 around 225g
USB charge	Supported

Transmitting part
Modulation mode	F3E
Max frequency deviation (W/N)	≤5KHz/≤2.5KHz
Transmitting part - SNR(W/N)	-45dB/-40dB

Receiving part
Sensitivity(W/N)	0.22μV/0.25μV 12dB SINAD
Inter-modulation(W/N)	65dB/60dB
Audio distortion	<5%
Audio output power	≤1W(16Ω)
RX current	≤350mA
Standby current	≤70mA

QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
