| Availability: | |
|---|---|
PH-100ALV
QYT

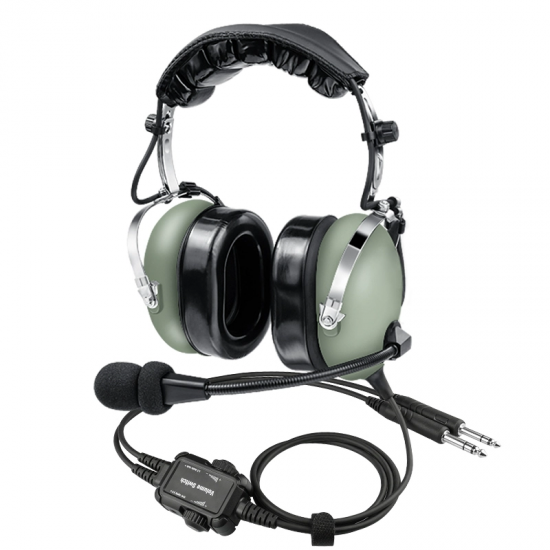

Our factory provides rich customized services for this aviation pilot headset. We can customize product packaging boxes, printed brand LOGO, audio connector types, adjust speaker and microphone parameters, or make minor adjustments to internal structures according to your demands. Large-scale internal structural modification requires MOQ negotiation. Please feel free to contact us to get detailed customization plans and price quotes.


| Parameter | Specification |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -25°C to 75°C |
| Microphone Type | Dual-directional noise-canceling microphone |
| Operating Voltage | 8–32V (depends on aircraft or device voltage) |
| Frequency Response | 100 – 5000 Hz |
| Microphone Sensitivity | -34 dB ± 4 dB (@1 kHz, 150Ω, 10V) |
| Speaker Diameter | 50 mm |
| Speaker Impedance | 165Ω (single speaker / 330Ω in parallel) |
| Speaker Rated Power | 100 mW |
| Speaker Sensitivity | 105 ± 3 dB at 1 kHz / IEC318, 575 mV |
| Noise Reduction Level | Max -24 dB |
| Connector | PJ-055 / PJ-068 |
QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
