QYT KT-9900R Mini Dual Band Mobile Ham Radio 25W Vehicle Transceiver with Color Screen Hand Microphone

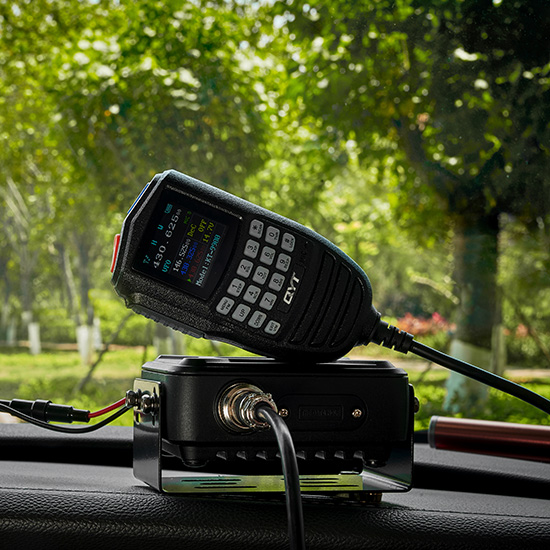

The QYT KT-9900R is a new mini dual-band analog mobile radio for vehicle installation. Its biggest feature is the color screen hand microphone; all operations and frequency status can be checked directly on the mic, while the main unit is compact and easy to hide and install. It delivers 25W output power on VHF and 20W on UHF, covering VHF 136–174MHz and UHF 400–480MHz. It supports 200 memory channels, CTCSS/DCS, DTMF, PC programming and remote kill functions. Stable performance makes it ideal for ham radio enthusiasts, off-road fleets, taxi, property management and construction sites. Contact us for detailed specs and quotations.

Availability:



Inquire

Model:
QYT KT-9900
Brand:
QYT

Walkie Talkie Mobile Radio Mini Mobile Ham Radio 25W Vehicle Mounted Transceiver Dual Band Car Two Way Radio

Product Description

Frequency range	VHF: 144~148MHz
	UHF: 430-440MHz
Number of channels	200 channels
Channel spacing	25KHz (wideband) 20K (midband) 12.5 (narrowband)
Phase lock step	5KHz, 6.25KHz, 10KHZ, 12.5KHz, 15KHz, 25KHz
Working voltage	13.8VDC±15%
Squelchmethod	Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
Frequency stability	±2.5ppm
Working temperature	－20~+60℃
Size	98(W)×35(H)×118(D)mm
Weight	408g
Receiving part (ETSIEN300086 standard test)
	Broadband	Narrowband
Sensitivity (12dB SINAD)	≤0.25uV	50.35V
Adjacent channel selectivity	≥70dB	≥60dB
Intermodulation	≥65dB	60dB
False signal response	70dB	70dB
Audio response	‘+1-3dB (0.3-3KHz)	+1-3dB (0.3-2.55KHz)
S/N ratio	45dB	40dB
Audio distortion	≤5%
Audio output power	≥2W±10%
Transmitting part (ETSIEN300086 standard test)
	Broadband	Narrowband
Output power	25W/20W (VHF/UHF)
Modulation	16KφF3E	11KφF3E
Adjacent channel powe	≥70dB	≥60dB
S/N Ratio	≥40dB	≥36dB
Parasitic and harmonic	≥60dB	≥60dB
Audio response	+1~-3dB (0.3-3KHz)	+1~-3dB (0.3-2.55KHz)
Audio distortion	≤5%
