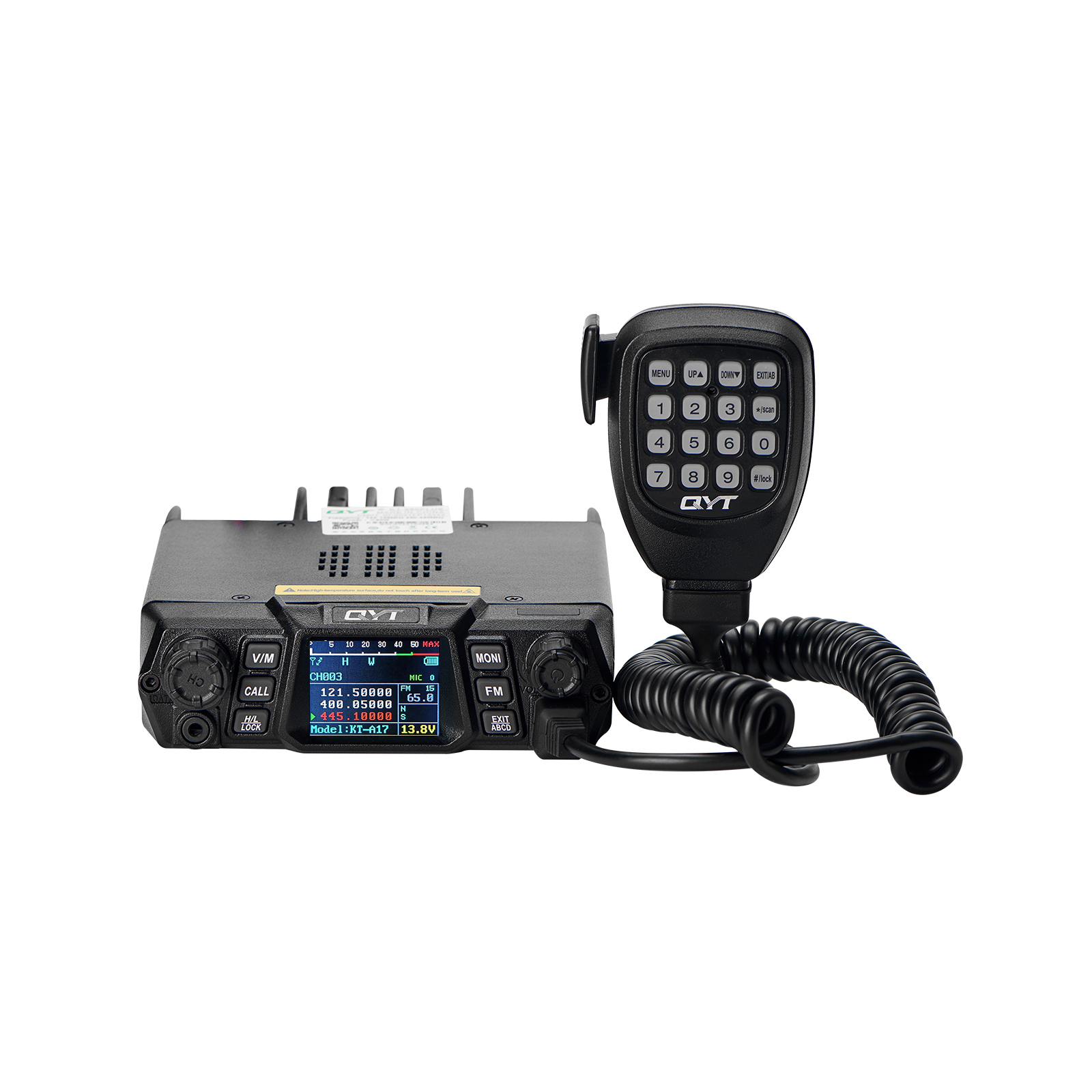

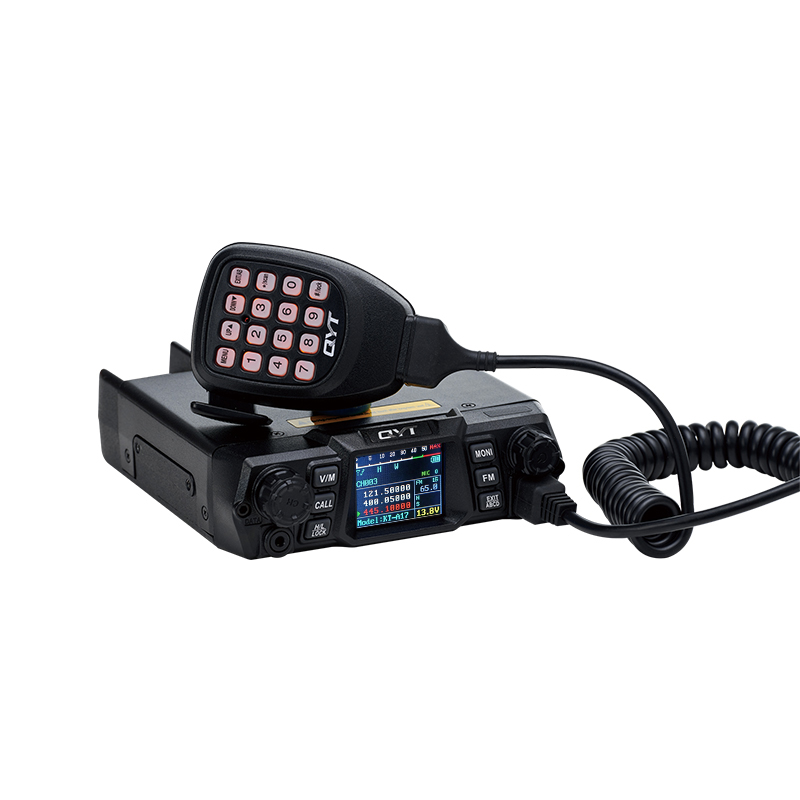

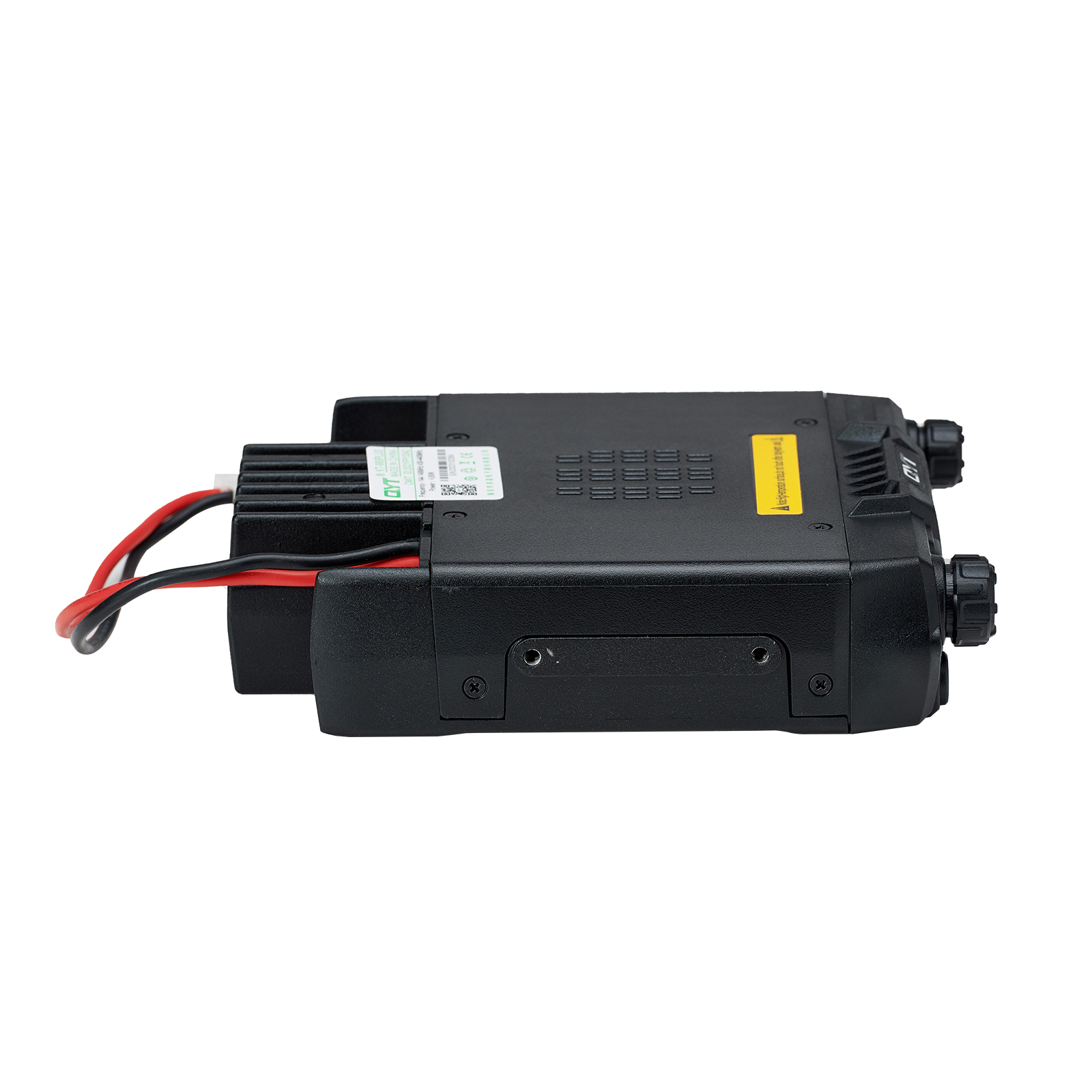

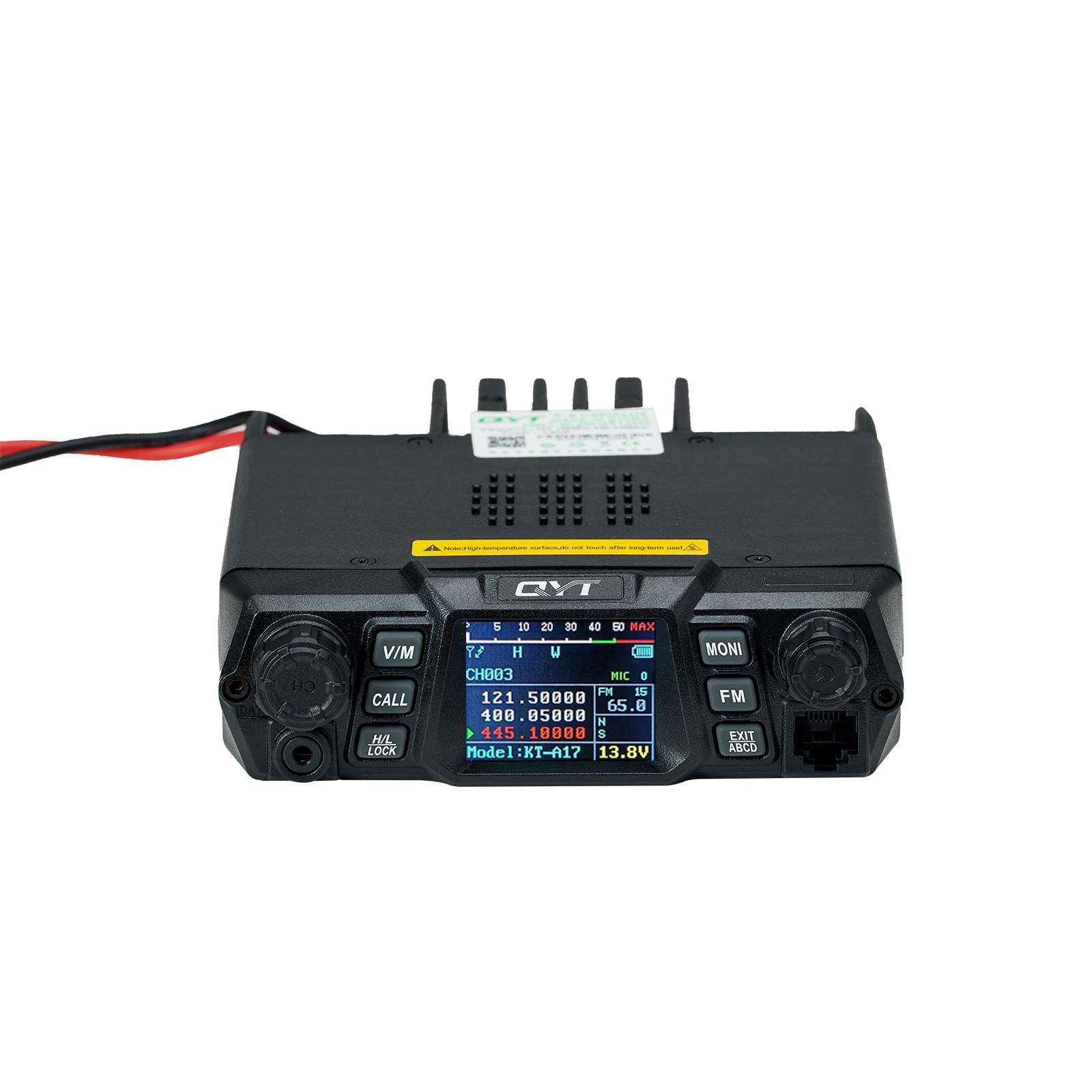

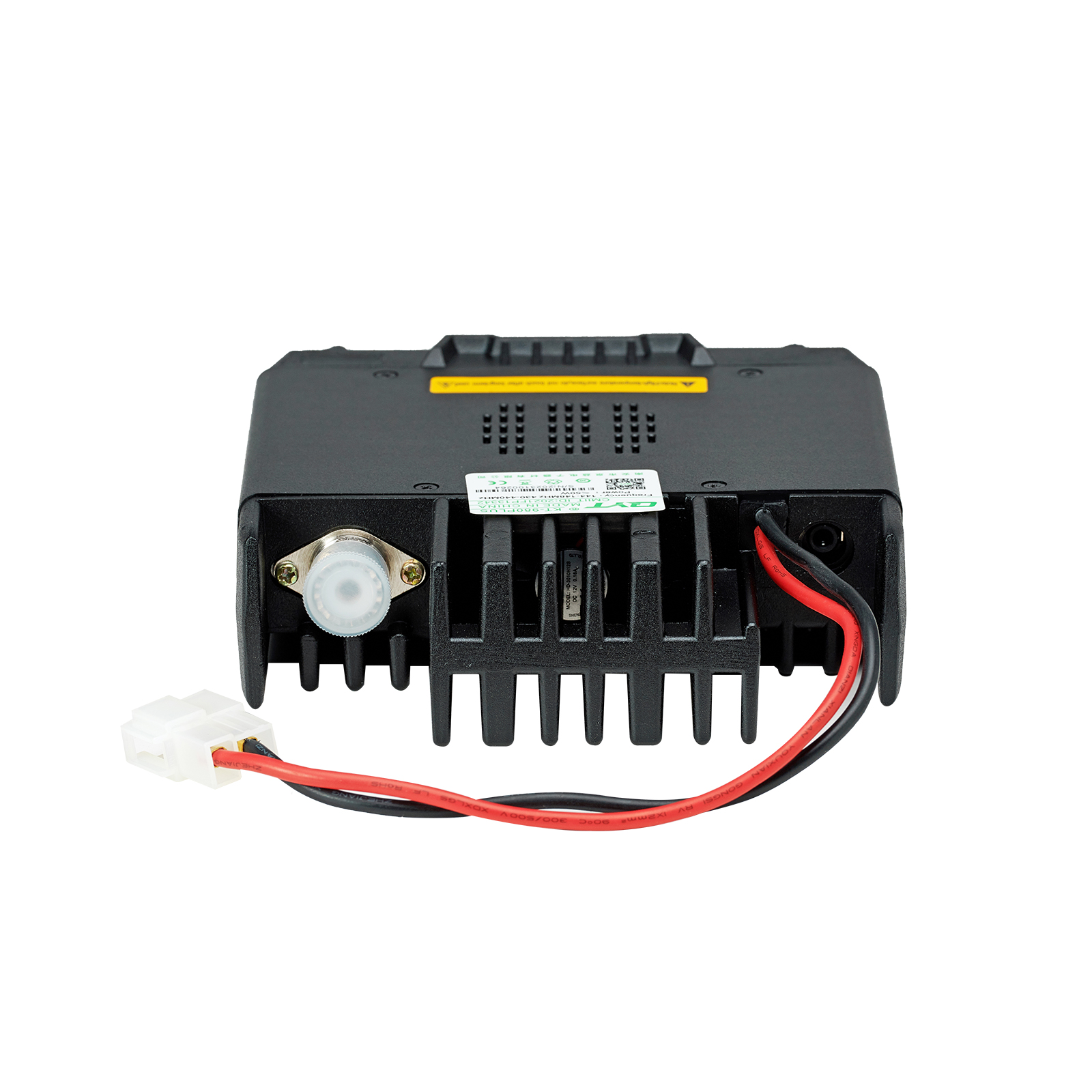

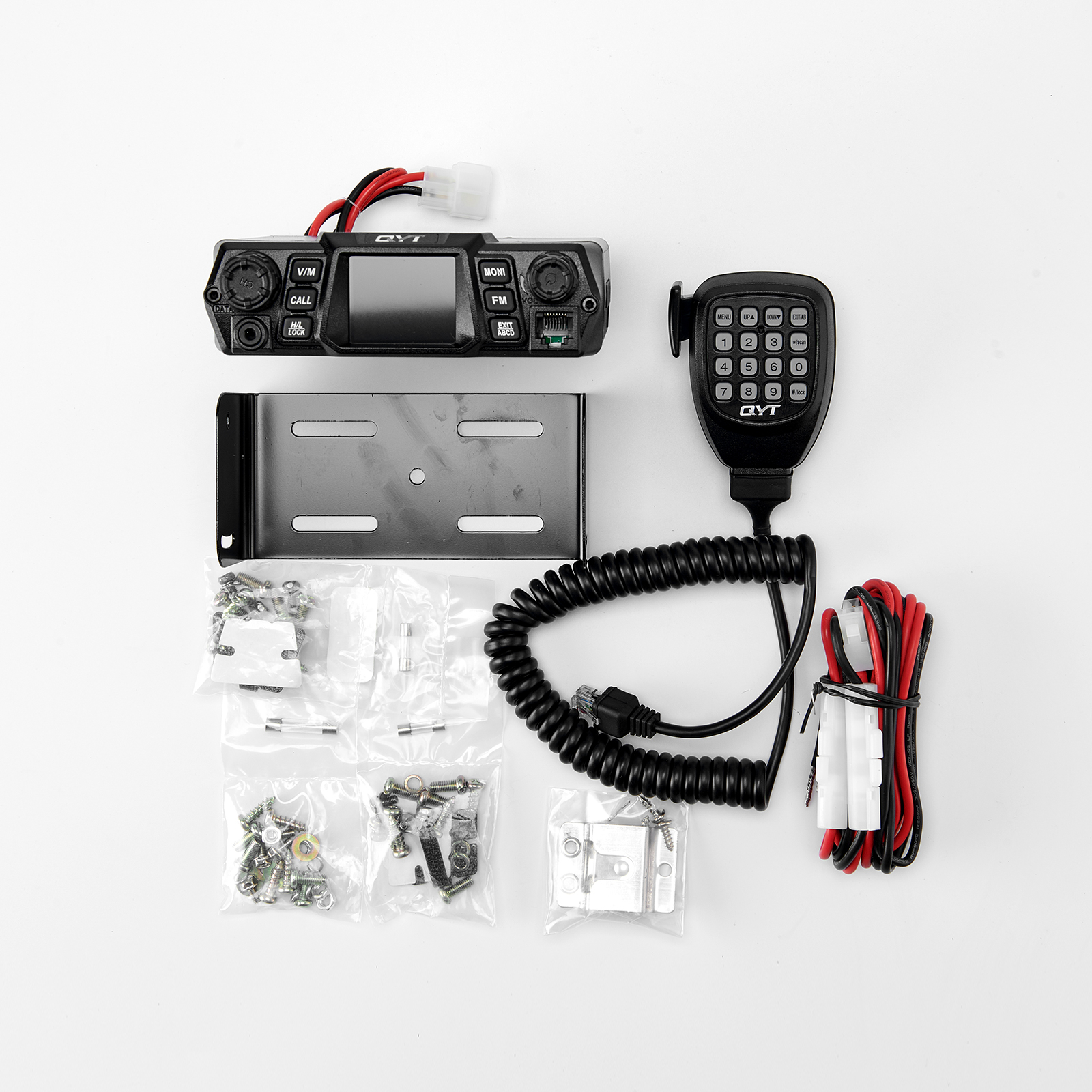

KT-A17 30W Air Band 118-136MHz VHF UHF Aviation Mobile Two Way Radio

This QYT KT-A17 is a powerful 30W aviation band mobile radio. It supports aviation frequency range 118–136 MHz and multi VHF/UHF bands for flexible application. It comes with 200 programmable channels, Chinese & English bilingual menus and PC programming function. It delivers professional stable communication for aviation and ground working scenarios. Feel free to contact us to get detailed customization plans and quotations.

Availability:



Inquire

Model:
KT-A17
Brand:
QYT

Mobile Radio Air Band Handheld Transceiver High Power Anti-interference Radio Long Range Outdoor Walkie Talkie Analog VHF UHF Transceiver Dual Mode Walkie Talkie

Product Description

We offer comprehensive customized services for the KT-A17 mobile radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, power cord design, shell appearance and other hardware specifications. We can also adjust partial internal circuit structures and optimize airband frequency function parameters according to your demands.

KT-A17 30W Air Band Aviation VHF UHF Mobile Radio

Core Features
No.	Feature
1	Aviation Frequency Band 118–136MHz
2	Chinese and English Menus
3	PC Program Function
4	Long Distance Coverage

General Specification
Item	Specification
Frequency range	Rx: AM 108–135.995MHz / Tx: AM 118–135.995MHz / FM: 400–470MHz
Number Of Channels	200
Channel Spacing	25KHz, 20KHz, 12.5KHz, 8.33KHz
Channel Step	5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
Working Voltage	13.8V DC ±15%
Squelch Way	CTCSS / DCS / 5Tone / 2Tone / DTMF
Frequency Stability	±2.5ppm
Operate Temperature	-20 ~ +60℃
Dimension	140(W) × 43(H) × 172(D)mm
Weight	About 1.8kg

Receive Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Sensitivity (12dB SINAD)	≤0.25 μV	≤0.35 μV
Channel Choice	≥70 dB	≥60 dB
Intermodulation	≥65 dB	≥60 dB
Spurious Rejection	≥70 dB	≥70 dB
Audio Response	+1 ~ -3dB (0.3–3KHz)	+1 ~ -3dB (0.3–2.55KHz)
Signal To Noise Ratio	≥45 dB	≥40 dB
Audio Distortion	≤5%	—
Audio Output Power	≥2W±10%	—

Transmit Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Output Power	—	30W
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70 dB	≥60 dB
Signal To Noise Ratio	≥40 dB	≥36 dB
Parasitic Harmonic	≥60 dB	≥60 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Audio Distortion	≤5%	—

QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
