KT-M600 VHF UHF Dual Band Color Screen Detachable Panel Mobile Two Way Radio

This QYT KT-M600 is a compact professional vehicle-mounted two-way radio with VHF/UHF dual band. It comes with color LCD screen, detachable front panel and dual speakers. It supports 200 channels storage, multi power levels and CTCSS, DCS, 2Tone,5Tone,DTMF signaling. Powered by 13.8V, it works from -20°C to +60°C, with FM radio, scan and remote stun/kill/revive, bilingual menu. Ideal for off-road, fleet and emergency communication. Feel free to contact us to get detailed customization plans and quotations.

Availability:



Inquire

Model:
KT-M600
Brand:
QYT

Mobile Radio Analog VHF UHF Transceiver High Power Anti-interference Radio Long Range Outdoor Walkie Talkie Walkie Talkie Dual Mode Walkie Talkie

Product Description

We offer comprehensive customized services for the KT-M600 mobile radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, power cord design, shell appearance and other hardware specifications. We can also adjust partial internal circuit structures and optimize signaling & scanning function parameters according to your demands.

KT-M600 Dual Band Color Screen Vehicle Mounted Mobile Radio

Core Features
No.	Feature
1	Speaker built on the panel
2	Dual-speaker design
3	Microphone interface on panel
4	Chinese & English menu
5	Multiple standby modes available

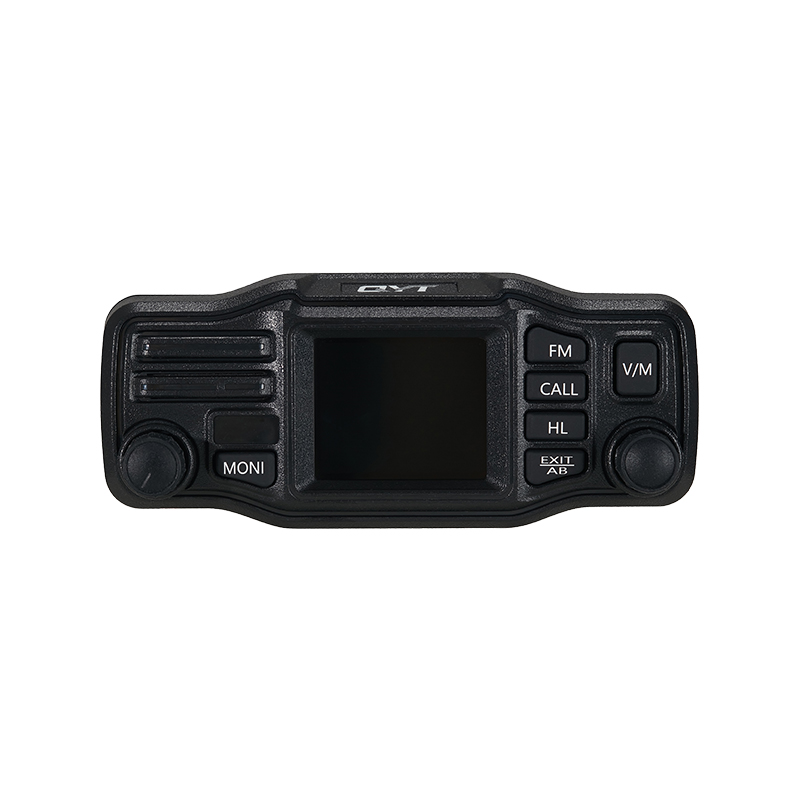

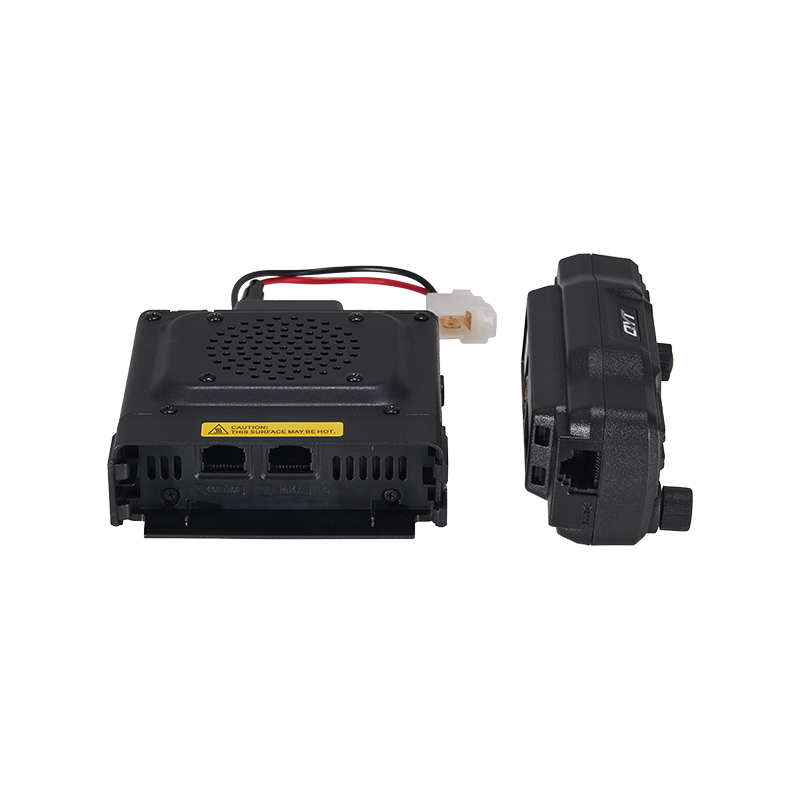

6	Detachable front panel

General Specification
Item	Specification
Frequency range	VHF: 136–174 MHz; UHF: 400–480 MHz
Number Of Channels	200
Antenna impedance	50 Ohm
Channel step	2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 25KHz
Working Voltage	13.8 V DC ±15%
Squelch way	CARRIER / CTCSS / DCS / 5 Tone / DTMF
Frequency Stability	±2.5 ppm
Operate Temperature	-20 ~ +60 ℃
Dimension	130 (W) × 43 (H) × 155 (D) mm
Weight	534g

Receive Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Sensitivity (12dB SINAD)	≤0.25 μV	≤0.35 μV
Adjacent Channel Selectivity	≥70 dB	≥60 dB
Intermodulation	≥65 dB	≥60 dB
Spurious Rejection	≥70 dB	≥70 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Hum&Noise	≥45 dB	≥40 dB
Audio Distortion	≤5%	—
Audio Output Power	≥2W±10%	—

Transmit Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Output Power	25 W (VHF) / 20 W (UHF)	—
Modulation Mode	16KΦF3E	11KΦF3E
Adjacent Channel Selectivity	≥70 dB	≥60 dB
Hum & Noise	≥40 dB	≥36 dB
Spurious Emission	≥60 dB	≥60 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Audio Distortion	≤5%	—
