QYT NM-1000 4G Network Unlimited Range Mobile Car Radio Transceiver

This QYT NM-1000 is a 4G network vehicle-mounted radio with unlimited talk range relying on mobile phone signal. It supports building integrated digital communication networks and custom exclusive user groups for multi-party simultaneous calls. It greatly facilitates enterprise management and team communication. Suitable for fleet transportation, property management, engineering teams and other commercial scenarios.

Availability:



Inquire

Model:
NM-1000
Brand:
QYT

NM-1000 4G network car radio unlimited range mobile transceiver vehicle two way radio PoC radio

Product Description

We offer comprehensive customized services for the QYT NM-1000 4G network mobile radio. Customizable options include printed brand LOGO, outer packaging boxes, group user configuration and other hardware specifications. We can also adjust network access settings and optimize group call function parameters according to your demands. Feel free to contact us to get detailed customization plans and quotations.

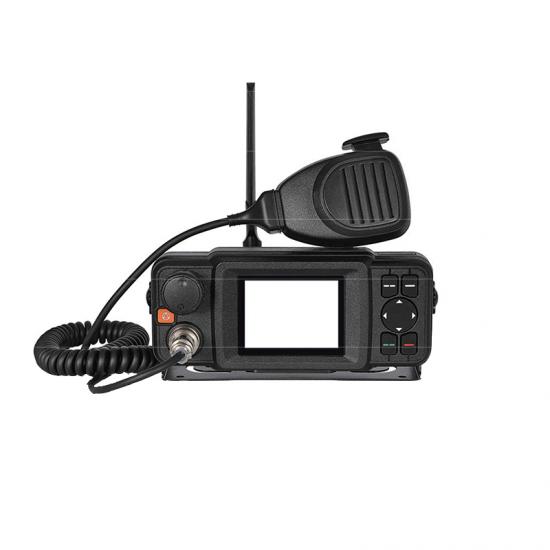

QYT NM-1000 4G Vehicle Network Two Way Radio

Feature

• Support LTE(4G)/WCDMA(3G) /GSM(2G) Network

• Support REAL PTT Platform

• 2.8lnch Color LCD Display

• Support Dual SIM Card & Switchable

• Support Power Supply DC12-24V

• Emergency Alarm Function

• Audio Output Power 3W

• GPS Function

• Group Call, Individual Call

The QYT NM-1000 Kit includes:

• Radiostation

• Speaker Mic

• Metal Bracket

• Power Supply Cable

• 4G Antenna

• User's Manual

• GPS Antenna(Optional)

Specifications
Version E	B1/B3/B5/B7/B8/B20@FDD LTE;
	B38/B40/B41@TDD LTE;
	B1/B5/B8@WCDMA;
	B3/B8@GSM
Version AU	B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE;
	B40@TDD LTE;
	B1/B2/B5/B8@WCDMA;
	B2/B3/B5/B8@GSM；
Version F	B2/B4/B5/B12/B13/B14/B66/B71 @FDD LTE;
Version F	B2/B4/B5@WCDMA;
Operation System	LINUX
Positioning System	GPS
CPU	QUALCOM 9X07
Working Mode	Semi-duplexer
RX Sensitivity	2/3G≤-108dBm 4G ≤-93dBm
RF Power	23dBm≤P≤30dBm
Audio Output Power	5W
Power Supply	DC12-24V
Dimension	175X76X70mm
Weinht	320g Approx
Working Temperature	-20°C to +60°C
Storage Temperature	-30°C to +80°C
