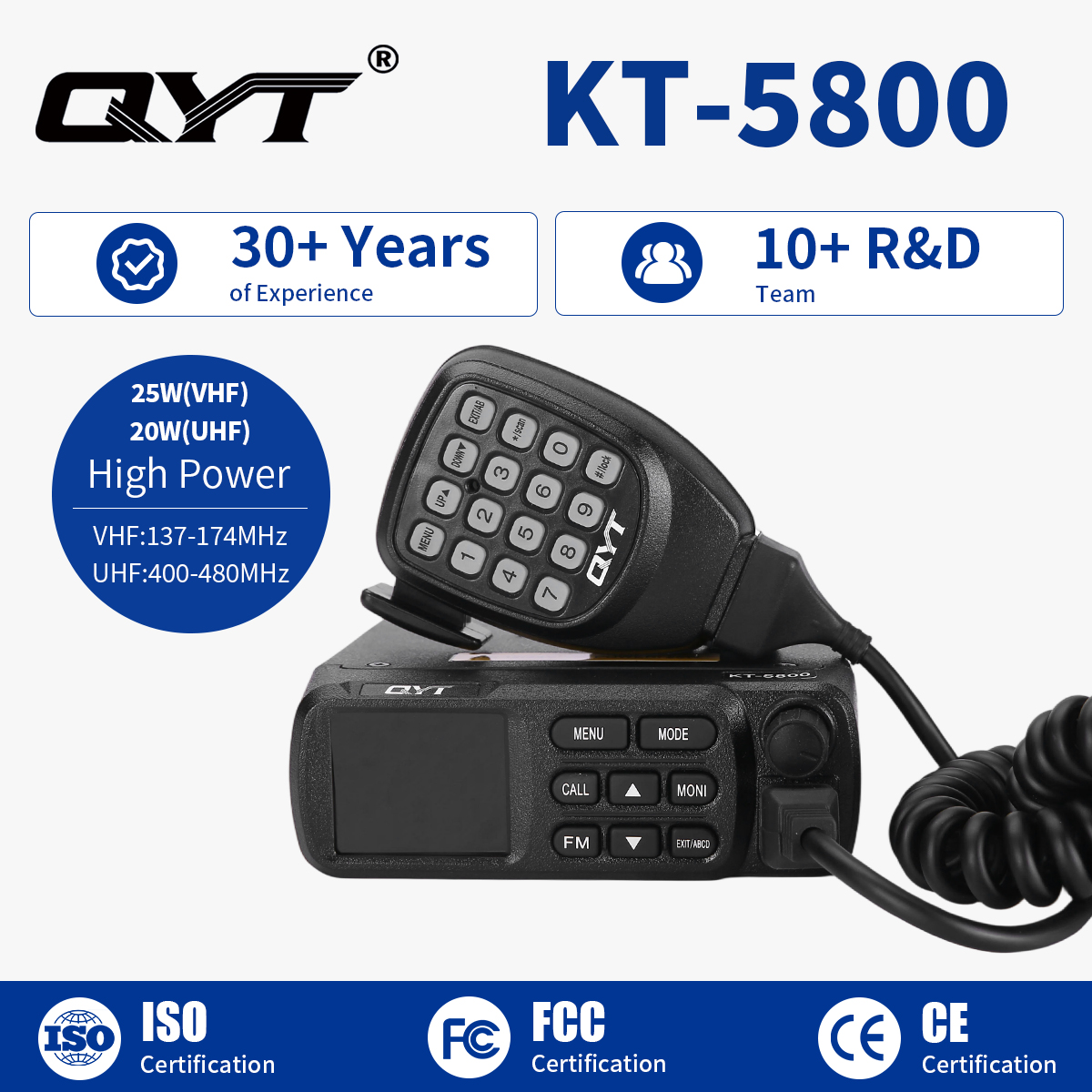

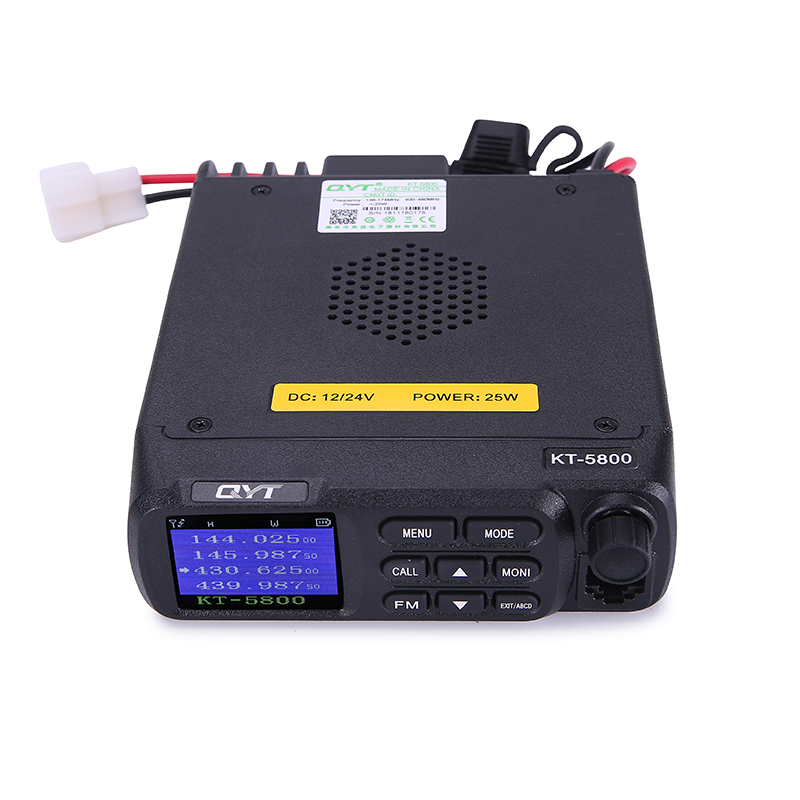

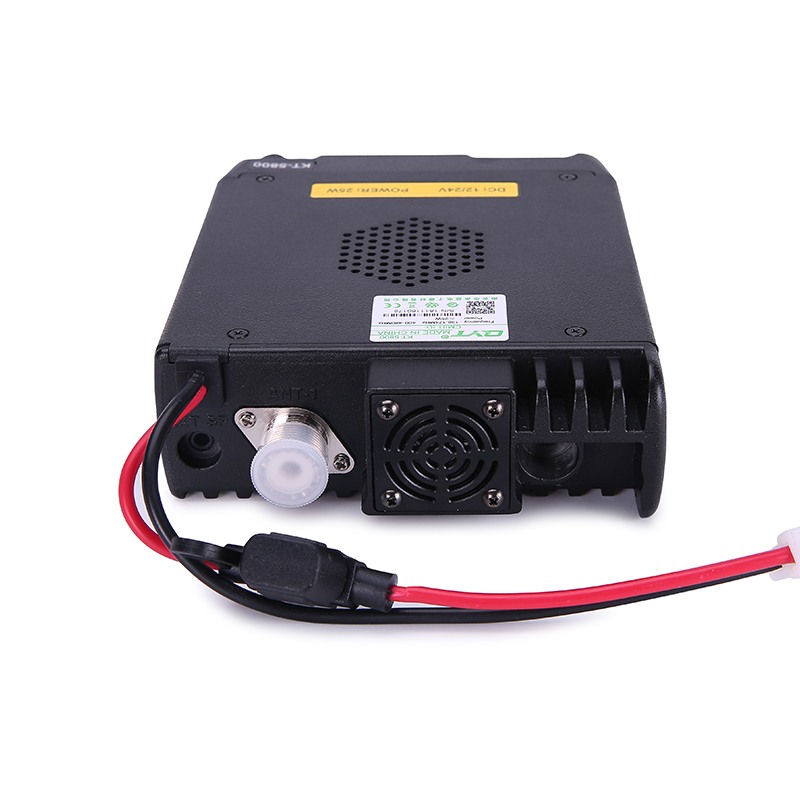

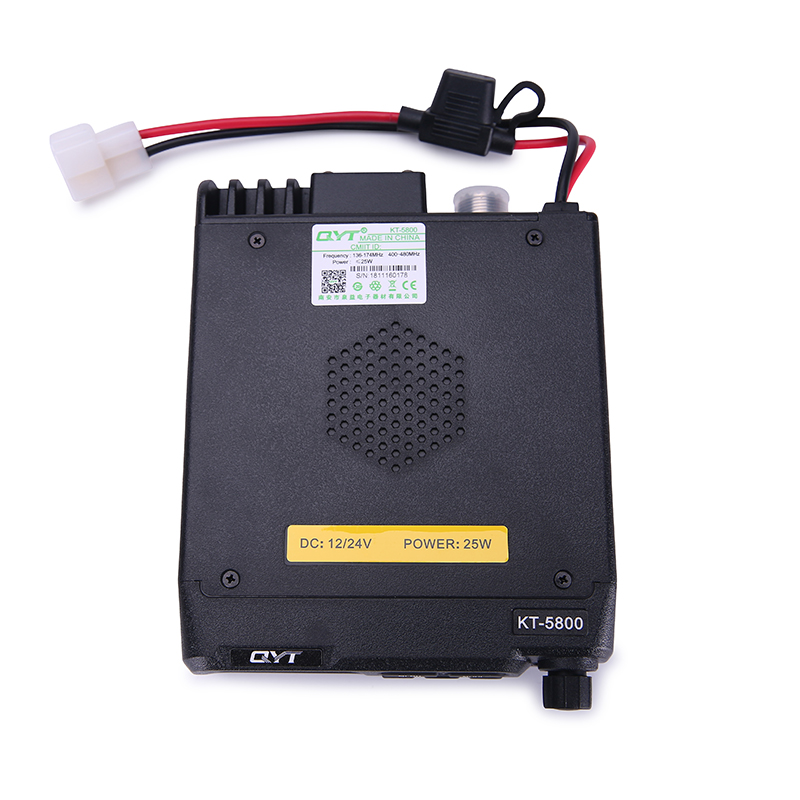

KT-5800 12/24V Dual Band Quad Standby 25W VHF 20W UHF Mobile Ham Radio

This KT-5800 is a dual band quad standby mobile ham radio supporting 12V and 24V power input, suitable for cars and trucks. It has 200 channels storage, delivers 25W output power on VHF band and 20W on UHF band. Adopting new technologies, it provides high operating efficiency and convenient operation, which is perfect for vehicle fleet communication and amateur radio use. Feel free to contact us to get detailed customization plans and quotations.

Availability:



Inquire

Model:
KT-5800
Brand:
QYT

Mobile Radio High Power Anti-interference Radio Long Range Outdoor Walkie Talkie Analog VHF UHF Transceiver Dual Mode Walkie Talkie Walkie Talkie

Product Description

We offer comprehensive customized services for the KT-5800 mobile radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, power cord design, shell appearance and other hardware specifications. We can also adjust partial internal circuit structures and optimize dual band & quad standby function parameters according to your demands.

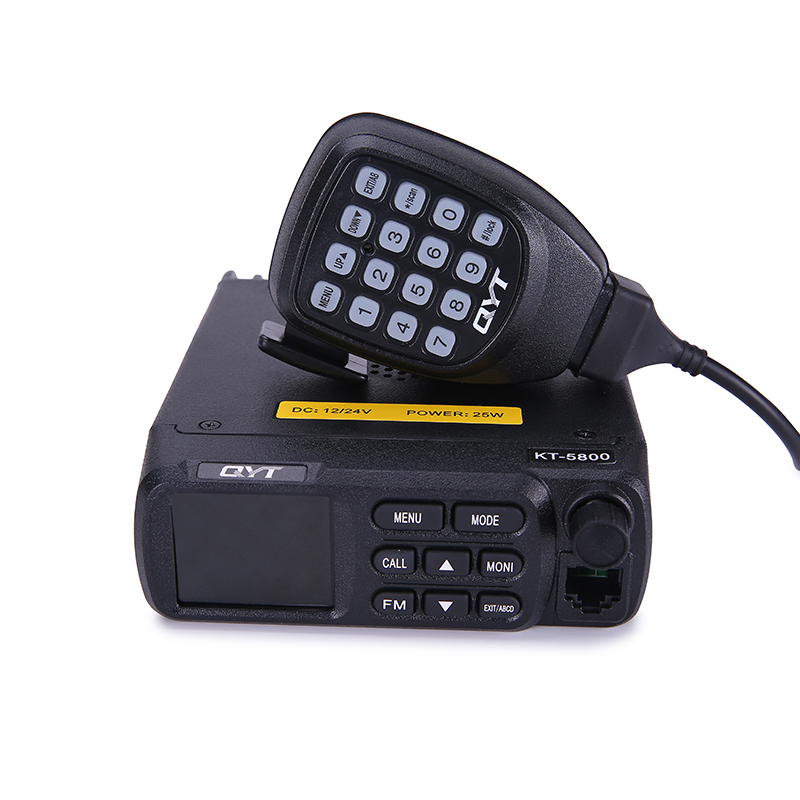

KT-5800 12/24V Dual Band Quad Standby Mobile Radio

The KT-5800, a new analog dual band VHF UHF mobile ham radio, uses dual voltages of 12V and 24V, suitable for cars, taxi, lorries and trucks.

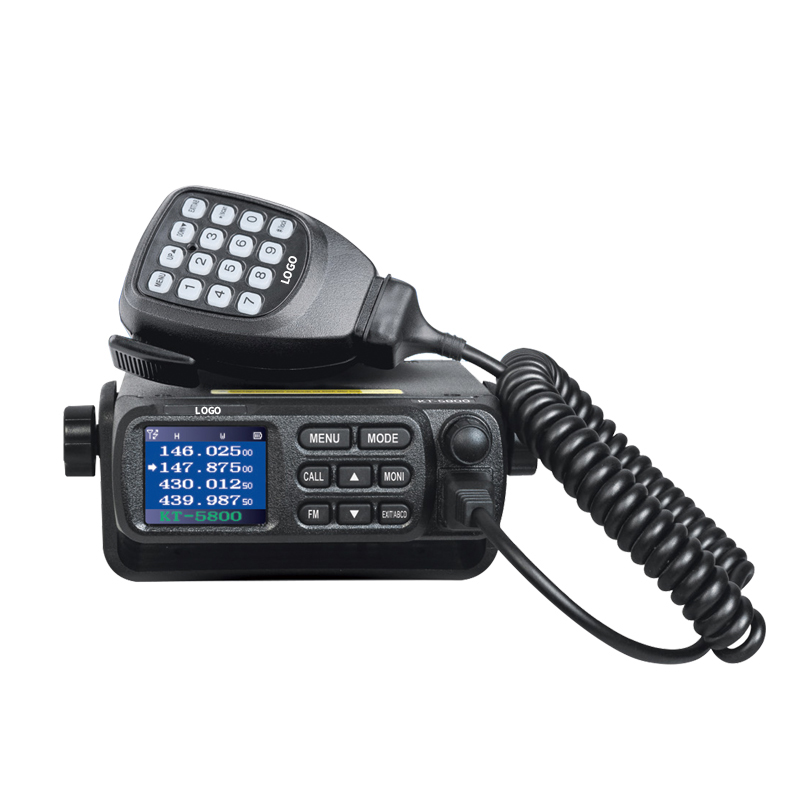

Mini mobile base radio have fashionable exterior with color screen, used dual band quad standby.

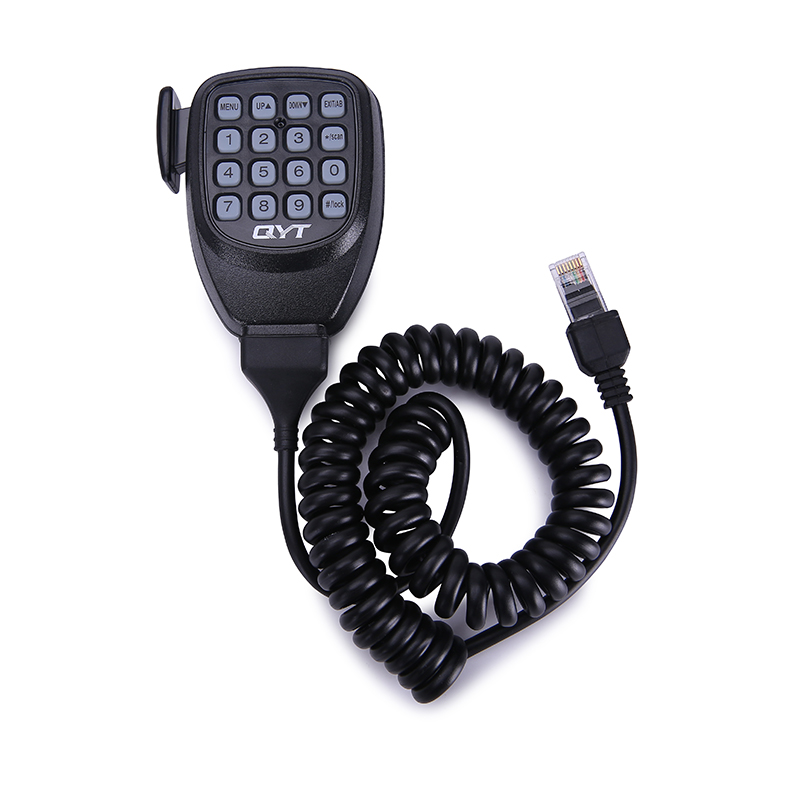

The KT-5800 vehicle mounted 2 way radios External Speaker/PTT, remote Stun, Remote Kill& Remote Revive, DTMF, 2 Tone, 5 Tone.

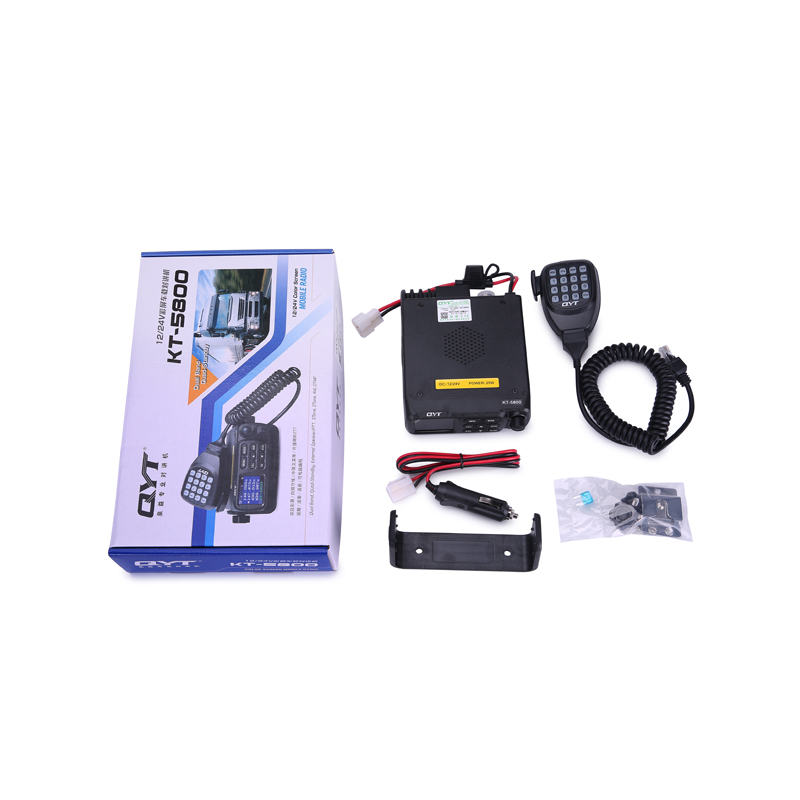

Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.

Core Features
No.	Feature
1	Dual Band Color Screen
2	Quad-Frequency Standby
3	12V / 24V Wide Voltage Input
4	Mini Size Design
5	PC Program Support
6	DTMF, 2 Tone, 5 Tone Signaling
7	Remote Stun, Remote Activate, Remote Kill
8	Scrambler (Optional)

General Specification
Item	Specification
Frequency range	VHF: 136–174MHz / UHF: 400–480MHz
Number Of Channels	200
Channel Spacing	25KHz, 20KHz, 12.5KHz
Channel Step	2.5KHz, 5KHz, 6.25KHz, 10KHz, 12.5KHz, 25KHz
Working Voltage	13.8V / 24V DC ±15%
Squelch Way	Carrier / CTCSS / DCS / 5Tone / 2Tone / DTMF
Frequency Stability	±2.5ppm
Operate Temperature	-20 ~ +60℃
Dimension	123(W) × 44(H) × 158(D)mm
Weight	660g

Receive Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Sensitivity (12dB SINAD)	≤0.25 μV	≤0.35 μV
Adjacent Channel Selectivity	≥70 dB	≥60 dB
Intermodulation	≥65 dB	≥60 dB
Spurious Rejection	≥70 dB	≥70 dB
Audio Response	+1 ~ -3dB (0.3–3KHz)	+1 ~ -3dB (0.3–2.55KHz)
Hum & Noise	≥45 dB	≥40 dB
Audio Distortion	≤5%	—
Audio Output Power	≥2W±10%	—

Transmit Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Output Power	—	25W/20W (VHF/UHF)
Modulation Mode	16KΦF3E	11KΦF3E
Adjacent Channel Selectivity	≥70 dB	≥60 dB
Hum & Noise	≥40 dB	≥36 dB
Spurious Emission	≥60 dB	≥60 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Audio Distortion	≤5%	—
