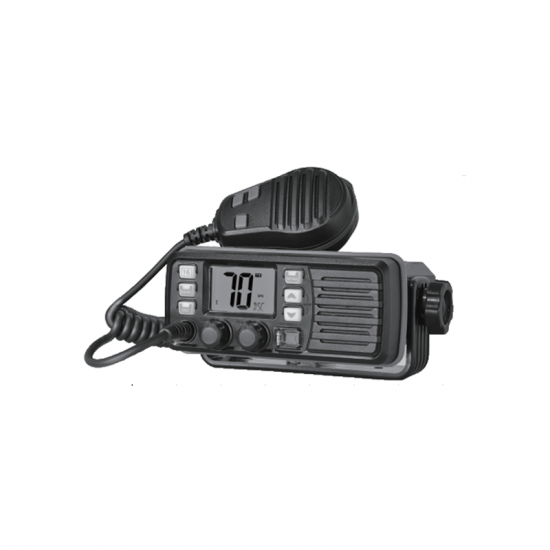

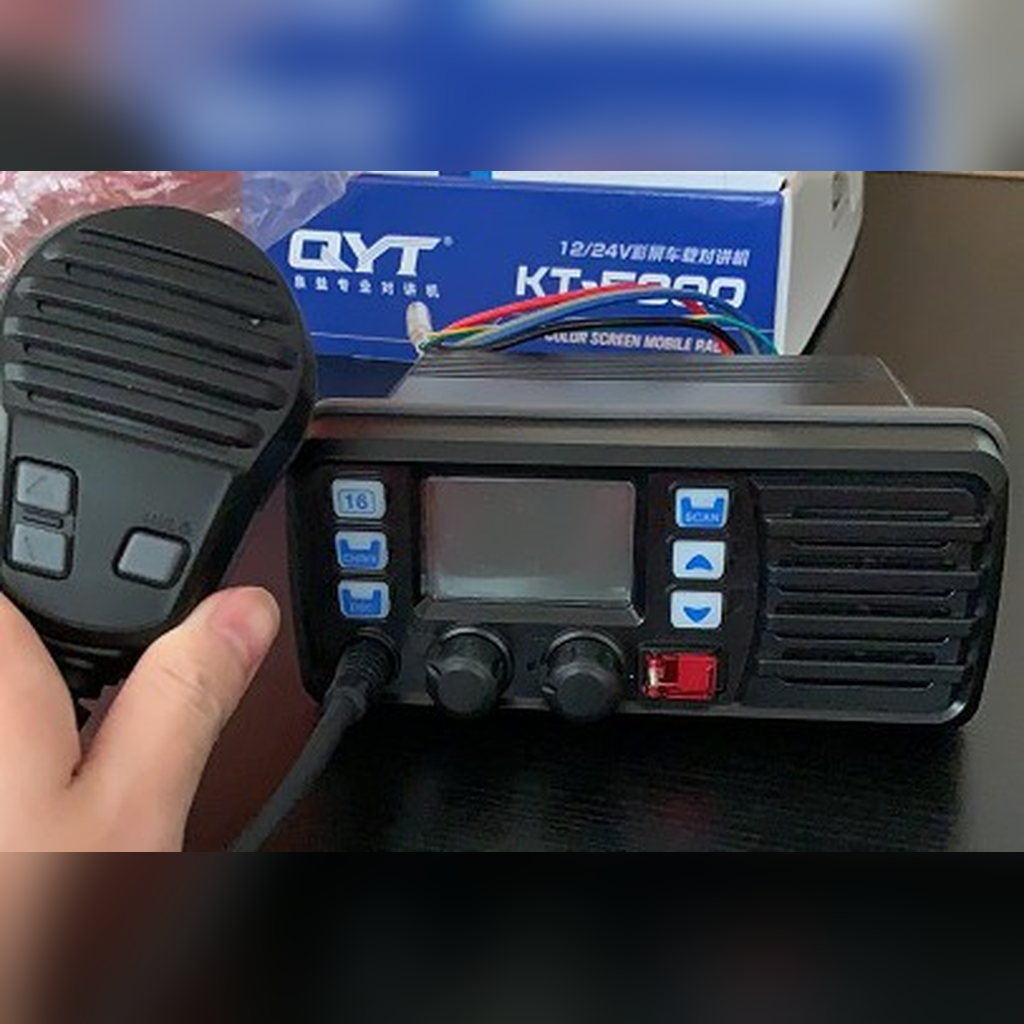

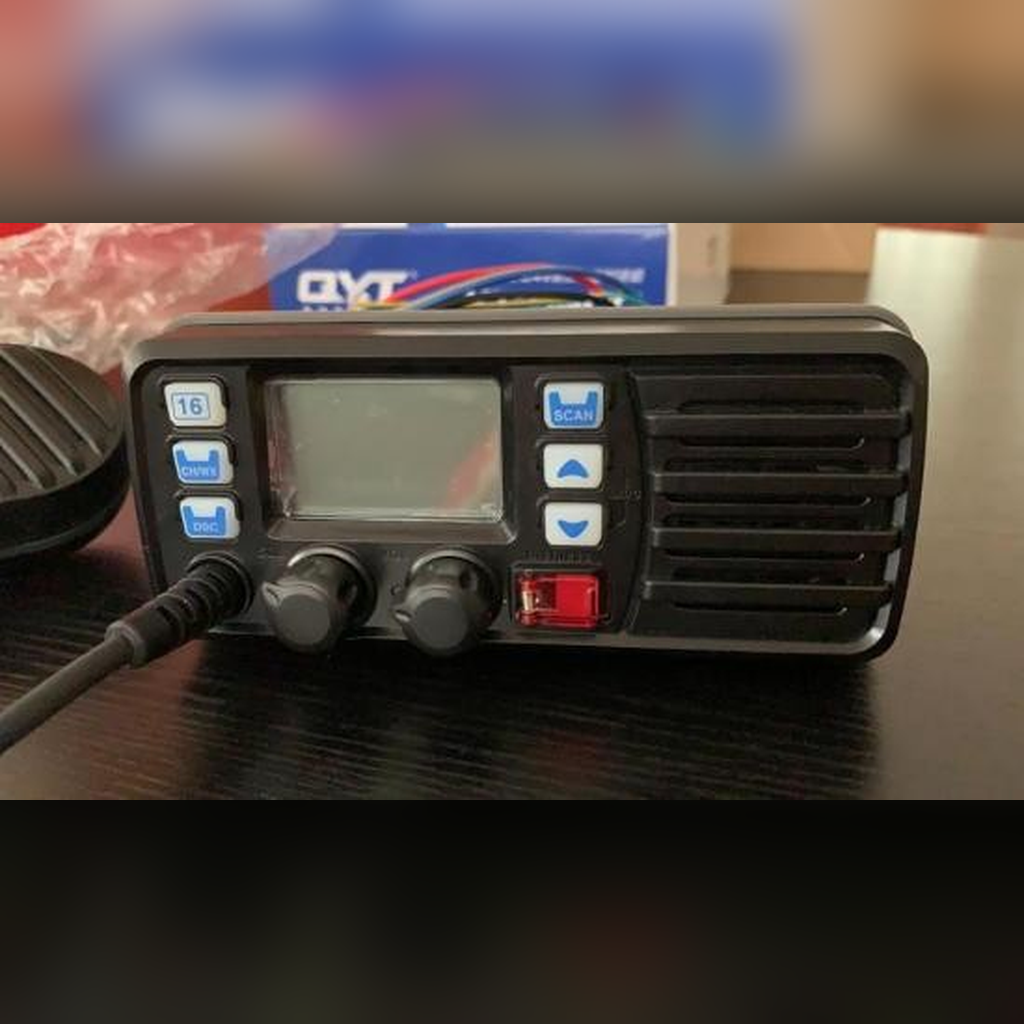

QYT M-898 25W VHF Floating Waterproof Marine Radio Ship Two Way Transceiver

This QYT M-898 is a 25W professional VHF shipborne two way radio with floating and waterproof design. It has total 99 channels, supports DTMF, 2Tone,5Tone, PC programming and Chinese & English menu. Equipped with alarm function, FM radio and long-distance communication, it meets ETSI EN 300 086 standard. Suitable for yachts, fishing boats and various marine vessel communication.

Availability:



Inquire

Model:
M-898
Brand:
QYT

mobile two way radio Maritime radios Marine two way radio mobile ham radio transceiver professional mobile radio Analog Mobile Two Way Radio

Product Description

We offer comprehensive customized services for the QYT M-898 marine mobile radio. Customizable options include printed brand LOGO, outer packaging boxes, channel preset configuration, hardware casing and other hardware specifications. We can also adjust channel group settings and optimize receiving & transmitting parameters according to your demands. Feel free to contact us to get detailed customization plans and quotations.

QYT M-898 25W VHF Marine Radio Waterproof Ship Mobile Radio

Maritime radios are also commonly known as "water full frequency radios" or "marine type radios". The maritime radio is essentially a two way radio, there are handheld walkie-talkies and ship-borne radios(similar to vehicle mounted radio). As a professional VHF marine radio designed for maritime applications, it needs to meet some characteristics of maritime applications.

Channel Group Selection

The transceiver is pre-programmed with 59 U.S.A., 59 international and 63 Canadian channels. These channle groups may be specified for the operating area.

Channel Selection

1.Channel 16

Channel 16 is the distress and safety channel. It is used for establishing initial contact with a station and for emergency communication. Channel 16 is monitored during both Dual-watch and Tri-watch. While standing by, you must monitor Channel 16.

2.Channel 9

Each regular channel group has a separate leisure-use call channel(Channel 9; default). The call channel is monitored during Tri-watch.

Caution

Never use the Distress call when your ship or a person is not in an emergency
Do not use or place the transceiver in areas with hear, humidity and dust.
The working voltage for the transceiver is 13.8V. If the power source is 24V, please use a power converter(24V convert to 13.8V), or the transceiver won't work.
Never directly connect to AC220V, this will ruin the transceiver if an abnormal odor or smoke is detected coming from the transceiver, turn off the power immediately.
Do not transmit before connecting the antenna, this will ruin the transceiver.

*Specification*
Frequency Range	TX: 156.025-157.425 MHz RX: 156.050 -163.275 MHz
Mode	FM (16K0G3E) DSC (16K0G2B)
Frequency stability	± 10ppm
Operating temperature range	-20 ~ +60℃
Antenna impedance	50Ω
Dimensions (W×D×H)	153mm×152mm×67mm
Weight (main unit)	742g (with microphone)

*Transmit*
Output power	25W / 1W
Max. frequency deviation	±5.0 kHz
Spurious emissions	≤-70dB (H) ≤-56dB (L)
Adjacent channel power	≥70dB
Audio harmonic distortion	≤10%
Current drain	≤5.5A (H) ≤1.5A (L)
Input resistance	2kΩ

*Receive*
Sensitivity	≤0.2uV
Squelch sensitivity	≤0.2uV
Adjacent channel selectivity	≥70dB
Spurious response rejection ratio	≥70dB
Intermodulation rejection ratio	≥70dB
Audio output power	≥4.5W (10%)
Audio Distortion	≤5%
