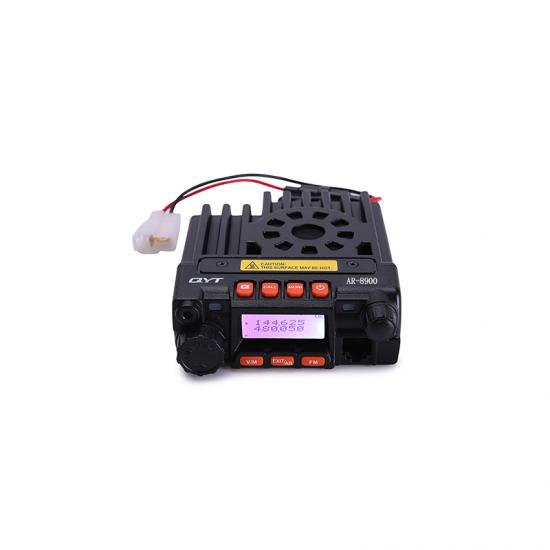

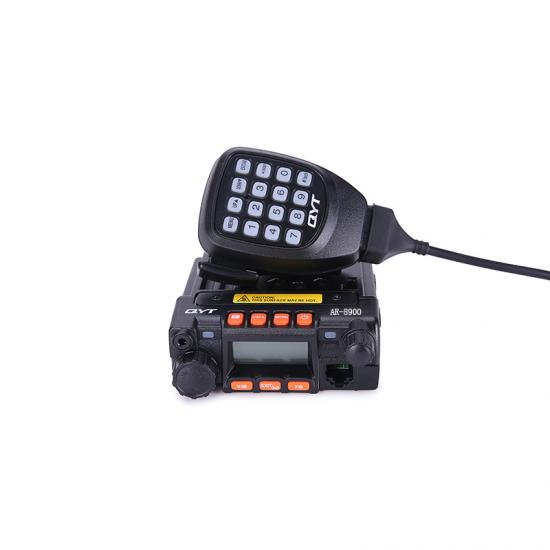

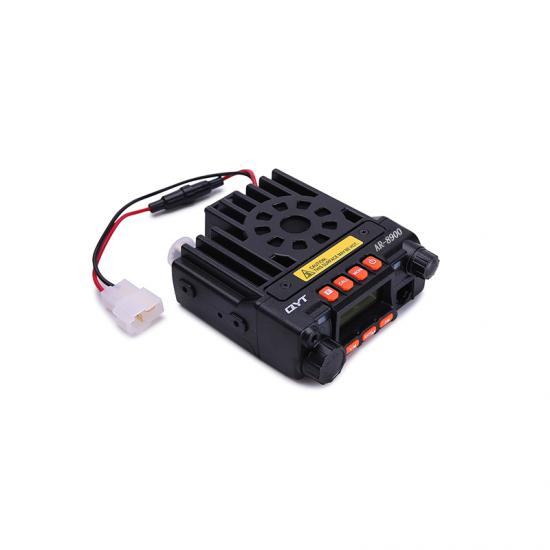

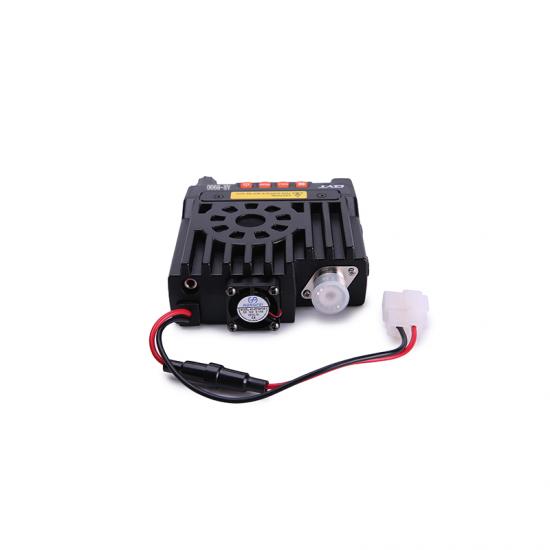

AR-8900 25W Air Band RX VHF UHF Dual Band Mini Mobile Radior

This QYT AR-8900 is a 25W mini analog mobile radio. It supports air band reception from 108-135MHz, plus VHF and UHF dual band. Built on KT-8900 ham radio platform, it covers three frequency ranges for versatile communication. Compact size, long receiving distance, ideal for aviation monitoring, ham radio, fleet and off-road professional use.

Availability:



Inquire

Model:
AR-8900
Brand:
QYT

air band mobile radio 25w dual band transceiver aviation receive radio Amateur Radio Mobile Transceiver Mobile Radio

Product Description

We offer comprehensive customized services for the QYT AR-8900 mobile radio. Customizable options include printed brand LOGO, outer packaging boxes, antenna frequency parameters, charging cable design, and other hardware specifications. We can also adjust partial internal circuit structures and optimize receiving function parameters according to your demands. Feel free to contact us to get detailed customization plans and quotations.

QYT AR-8900 25W Long Range Airband Mobile Radio

This AR-8900 mobile radio has AIR BAND frequency(108-135MHz) with ONLY RECEIVE function on the basis of the KT-8900, which means you can have not only both VHF and UHF with RECEIVE and TRANSMIT functions, but also AIR BAND frequency with ONLY RECEIVE function.

The AR-8900 Kit includes:

Radiostation

Microphone

DC power cable

Mobile mounting bracket

Mounting hardware

User's manual

General Specification
Item	Specification
Frequency Range	VHF: 136-174MHz, 108-135MHz(receive ONLY) UHF:400-480MH
Channel Capacity	200 channels
Channel Spacing	25KHz, 20KHz, 12.5KHz
Channel Step	5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz
Working Voltage	13.8V DC ±15%
Squelch Way	CARRIER / CTCSS / DCS / 5Tone / 2Tone / DTMF
Frequency Stability	±2.5ppm
Operating Temperature	-20 ~ +60℃
Dimension(WHD)	140(W)43(H)172(D)mm
Weight	1030g

Receive Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Sensitivity	≤0.25 μV	≤0.35 μV
Channel Choice	≥70 dB	≥60 dB
Intermodulation	≥65 dB	≥60 dB
Spurious Rejection	≥70 dB	≥70 dB
Audio Response	+1 ~ -3dB (0.3–3KHz)	+1 ~ -3dB (0.3–2.55KHz)
Signal To Noise Ratio	≥45 dB	≥40 dB
Audio Distortion	≤5%
Audio Output Power	≥2W±10%

Transmit Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Output Power	25W (VHF)	20W (UHF)
Modulation Mode	16KΦF3E	11KΦF3E
Channel Power	≥70 dB	≥60 dB
Signal Noise Ratio	≥40 dB	≥36 dB
Parasitic Harmonic	≥60 dB	≥60 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Audio Distortion	≤5%
