KT-8900R
QYT
Customization service is available for QYT KT-8900R mobile radio, including custom logo, packaging, antenna and power cord modification.
The Analog Mobile Ham Radio Base Station Kit from QYT KT-8900R. Upgraded version of KT-8900R.
Use the power amplifier of freescale from USA, launch more stable, communication distance more distant.
Tri band, dual dispaly, dual standby and dual track.
The QYT KT-8900R offers up to 25 watts VHF and 20 watts UHF operation in High output mode. It features 200 Channels, with CTCSS and DSC, channels scan and DTMF technology. It includes Lone worker mode, an emergency alarm and VOX capability.

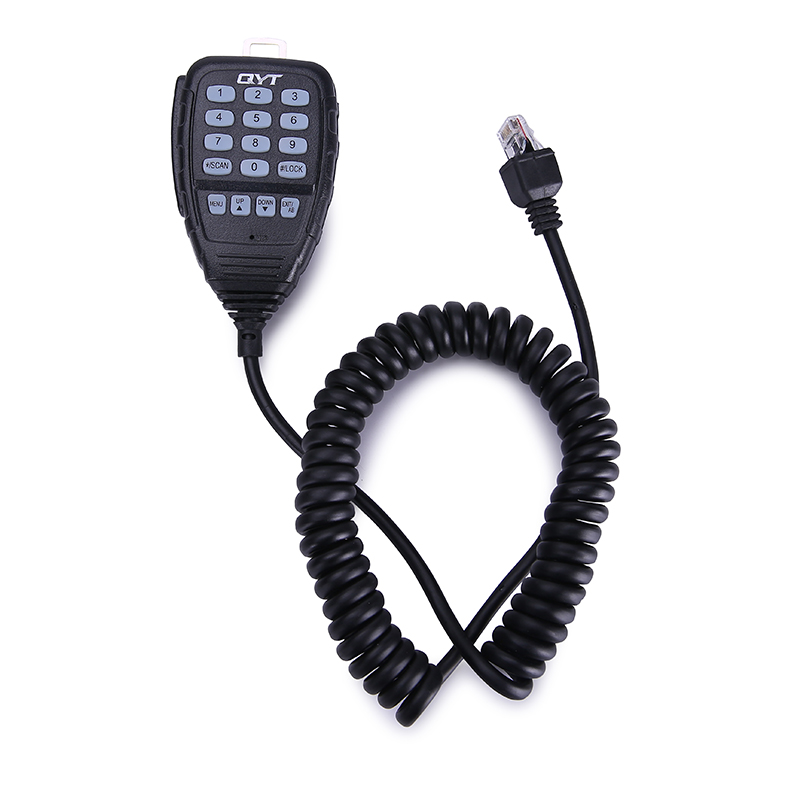

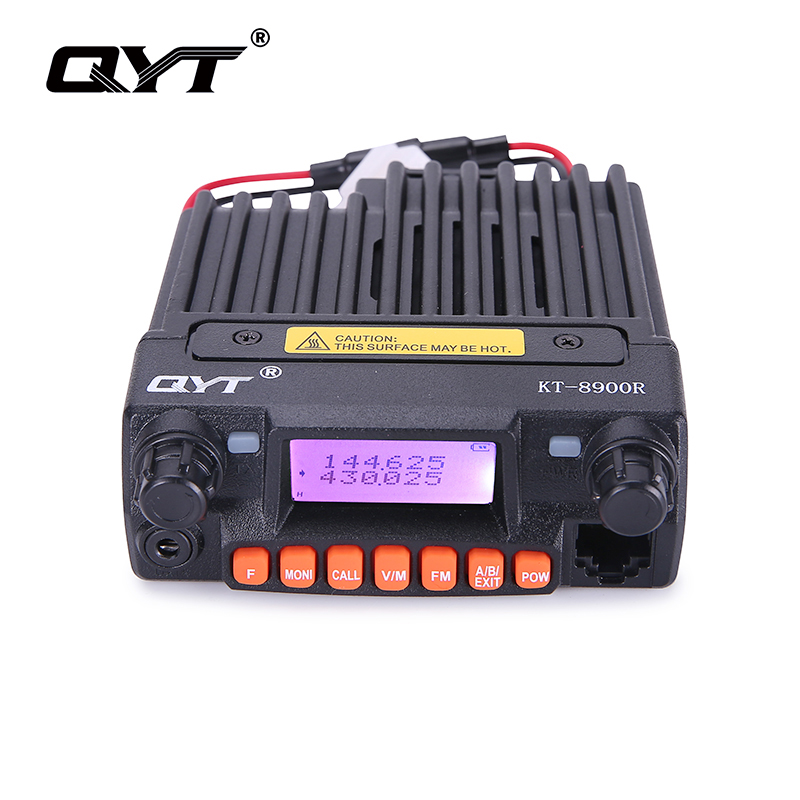

The KT-8900R has an LCD display, programmable function keys on the console, a hand microphone with programmable keys, a built-in LEDs and a DTMF keypad.
The QYT KT-8900R is also repeater capable and compatible with all brand analog walkie talkie and mobile ham radios.
Power cable besides the standard cigarette lighter power supply, we also have the Adapter which use household electricity consumption input voltage of 220-240V AC/DC and an output voltage of 13.8V DC±15%.
USB Programming Cable to connects your QYT radios to your computer and software to programming your radio!
| Functional Features | |
|---|---|
| No. | Feature |
| 1 | Tri-band, Dual Display, Dual Standby & Dual Track |
| 2 | Remote Stun, Remote Activate, Remote Kill |
| 3 | DTMF Function, 2 Tone, 5 Tone |

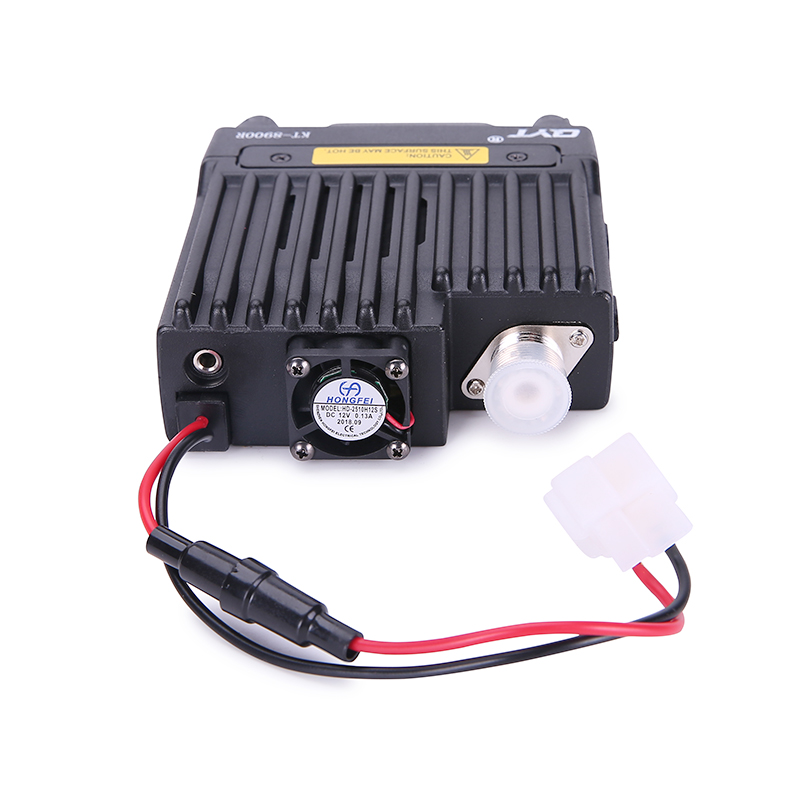

| 4 | With Cooling Fan & External Audio Socket |
| 5 | Frequency Range Manual Programmable |
| 6 | Software Password Programmable |
| 7 | Mini Size Design |
| 8 | With Repeater Function |
| 9 | PTT-ID Code |
| 10 | 25W Power Output |
| 11 | FM Radio |
| 12 | Monitor Function |
| 13 | Scrambler (Optional) |
| 14 | Multiple Back Light Colors Selectable |
| 15 | Cigar-plug DC Cable Power Supply |
| General Specification | |
|---|---|
| Item | Specification |
| Frequency Range | VHF: 136–174MHz (240–260MHz) / UHF: 400–480MHz |
| Number Of Channels | 200 |
| Channel Spacing | 25KHz, 20KHz, 12.5KHz |
| Phase Lock Step | 5KHz, 6.25KHz, 10KHz, 12.5KHz, 15KHz, 25KHz |
| Working Voltage | 13.8V DC ±15% |
| Squelch Way | CTCSS / DCS / 5Tone / 2Tone / DTMF |
| Frequency Stability | ±2.5ppm |
| Operate Temperature | -20 ~ +60℃ |
| Dimension | 98(W) × 35(H) × 118(D)mm |
| Weight | 408g |
| Receive Part (ETSI EN 300 086 Standardized Test) | ||
| Item | Wide band | Narrow band |
| Sensitivity (12dB SINAD) | ≤0.25 μV | ≤0.35 μV |
| Channel Choice | ≥70 dB | ≥60 dB |
| Intermodulation | ≥65 dB | ≥60 dB |
| Spurious Rejection | ≥70 dB | ≥70 dB |
| Audio Response | +1 ~ -3dB (0.3–3KHz) | +1 ~ -3dB (0.3–2.55KHz) |
| Signal To Noise Ratio | ≥45 dB | ≥40 dB |
| Audio Distortion | ≤5% | — |
| Audio Output Power | ≥2W±10% | — |
| Transmit Part (ETSI EN 300 086 Standardized Test) | ||
| Item | Wide band | Narrow band |
| Output Power | 25W (VHF) | 20W (UHF) |
| Modulation Mode | 16KΦF3E | 11KΦF3E |
| Channel Power | ≥70 dB | ≥60 dB |
| Signal To Noise Ratio | ≥40 dB | ≥36 dB |
| Parasitic Harmonic | ≥60 dB | ≥60 dB |
| Audio Response | +1 ~ -3 dB (0.3 ~ 3 kHz) | +1 ~ -3 dB (0.3 ~ 2.55 kHz) |
| Audio Distortion | ≤5% | — |
| No. | Application Scenario |
|---|---|
| 1 | Outdoor Sports |
| 2 | Taxi Deployment |
| 3 | Property Management |
| 4 | Construction Sites |
| 5 | Firefighting Deployment |
| 6 | Military Cooperation |

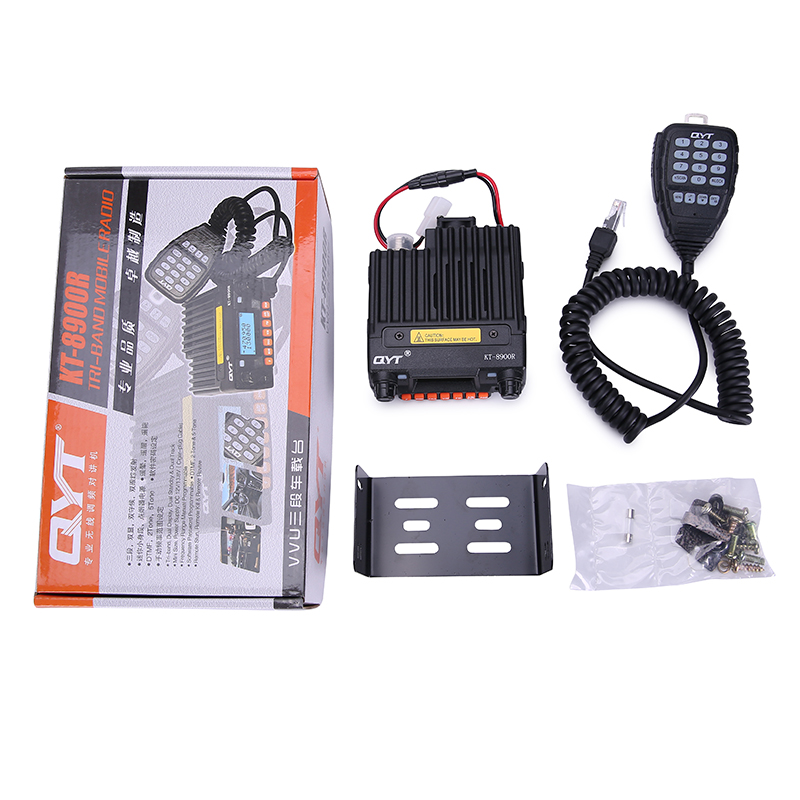

| No. | Accessory |
|---|---|
| 1 | Radio Machine |
| 2 | Microphone |
| 3 | Cigarette Butts Power Cord |
| 4 | Mounting Bracket |
| 5 | Screw the Fuse |
QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
