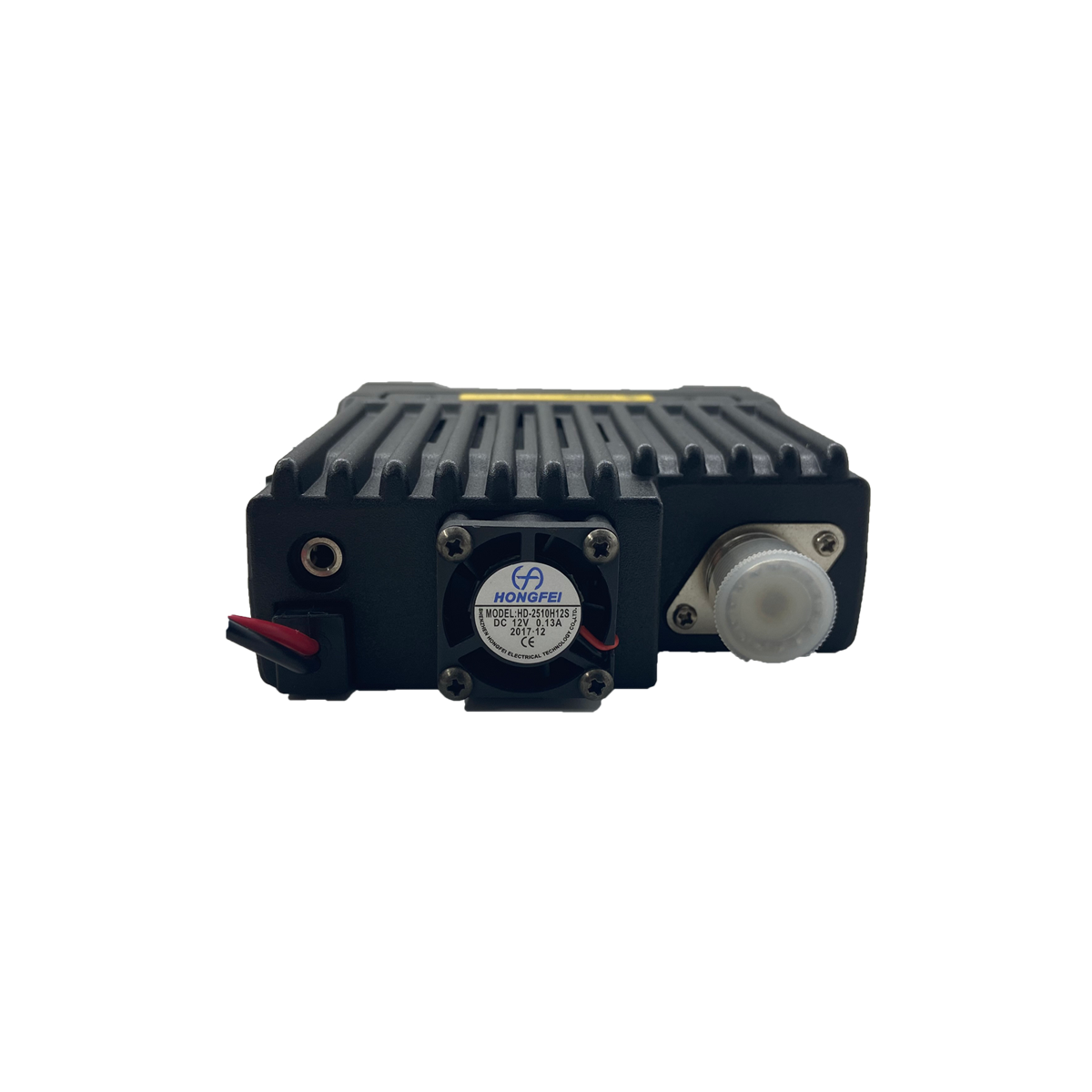

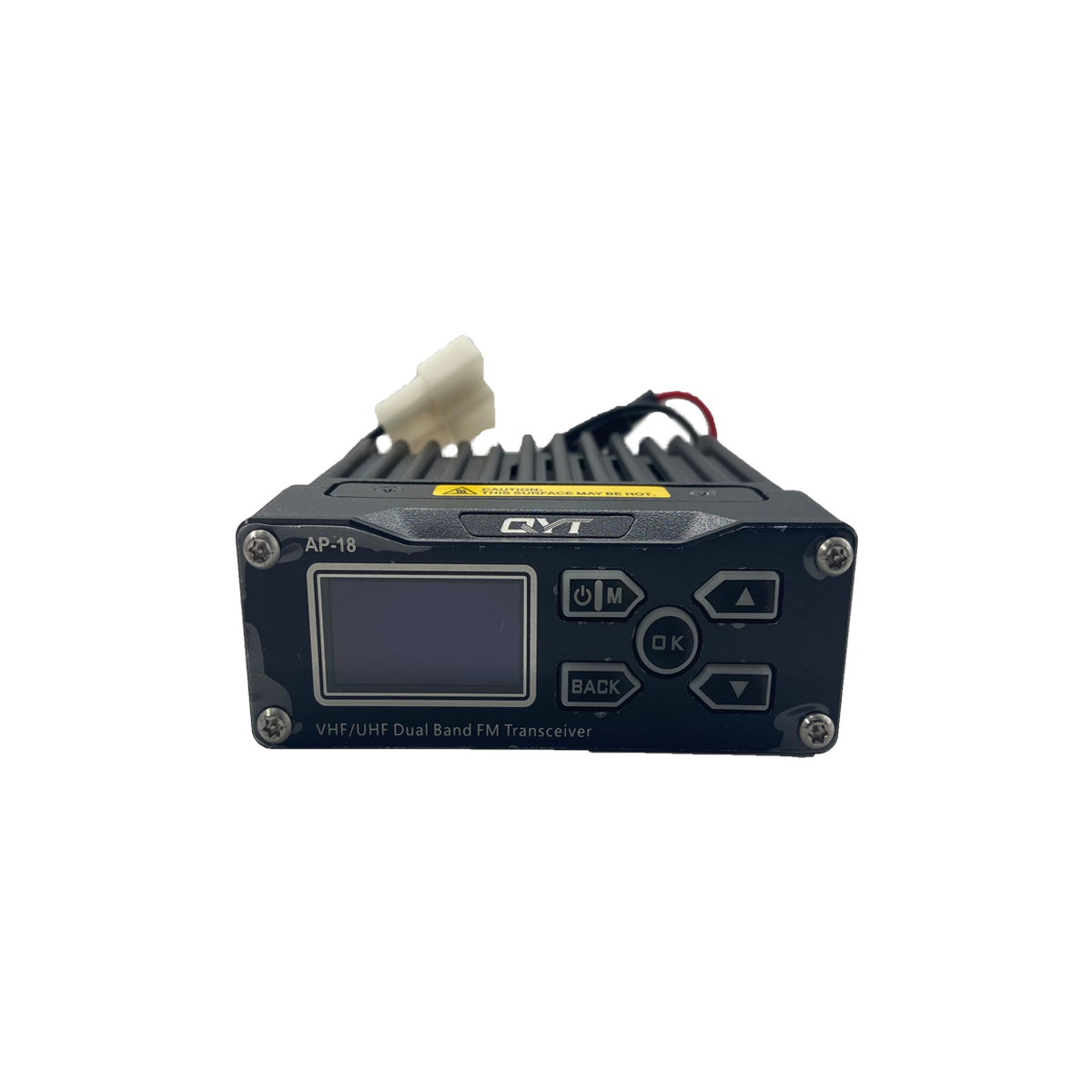

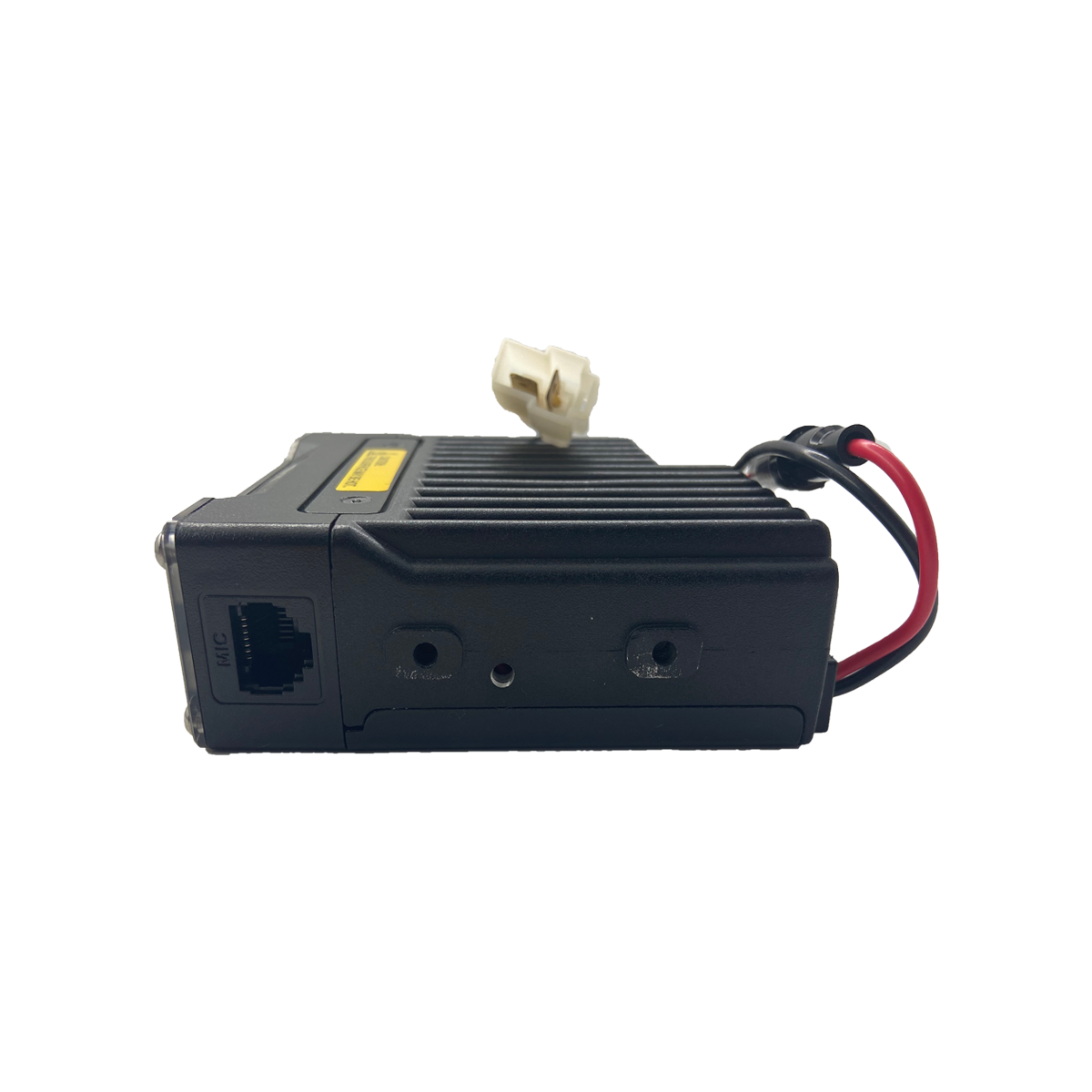

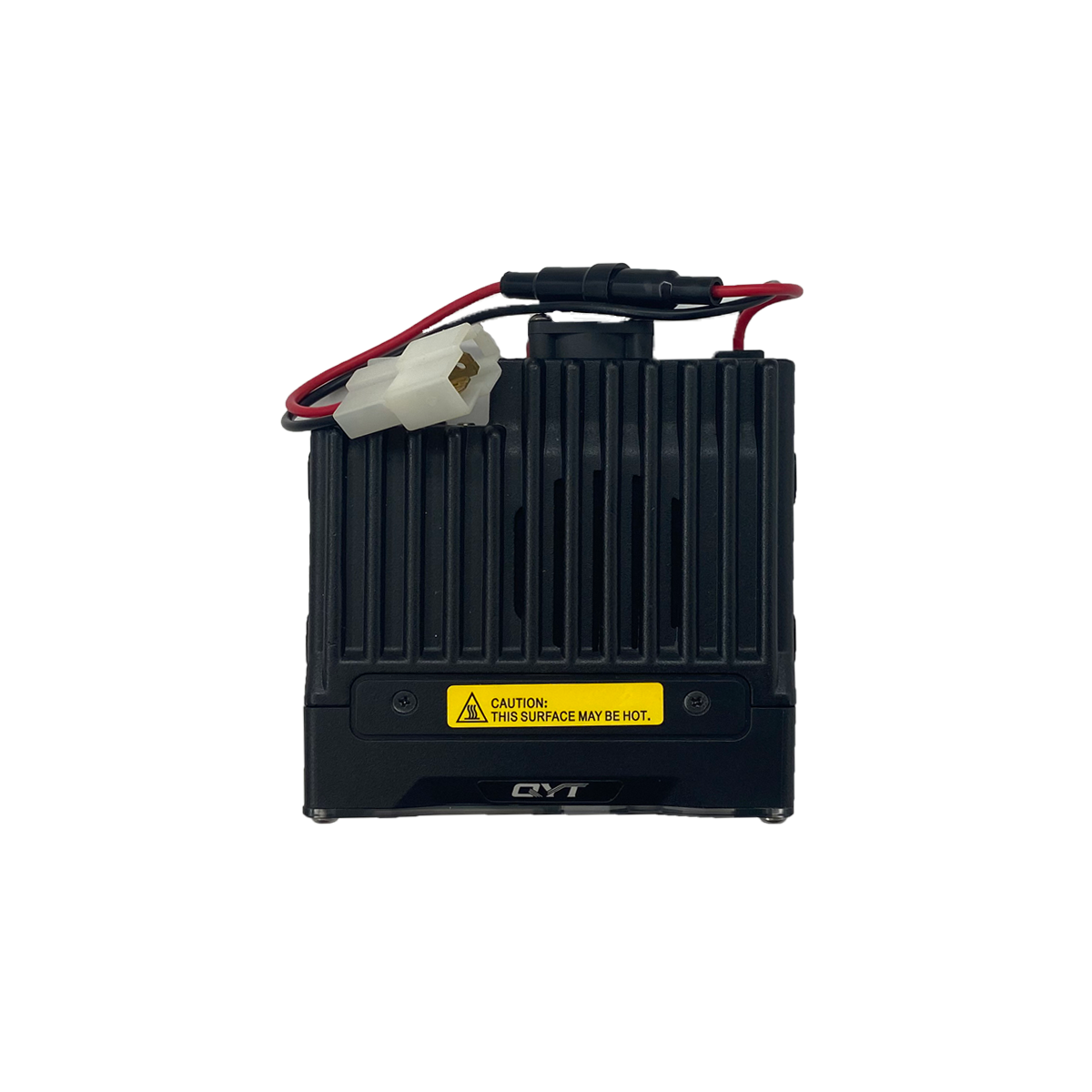

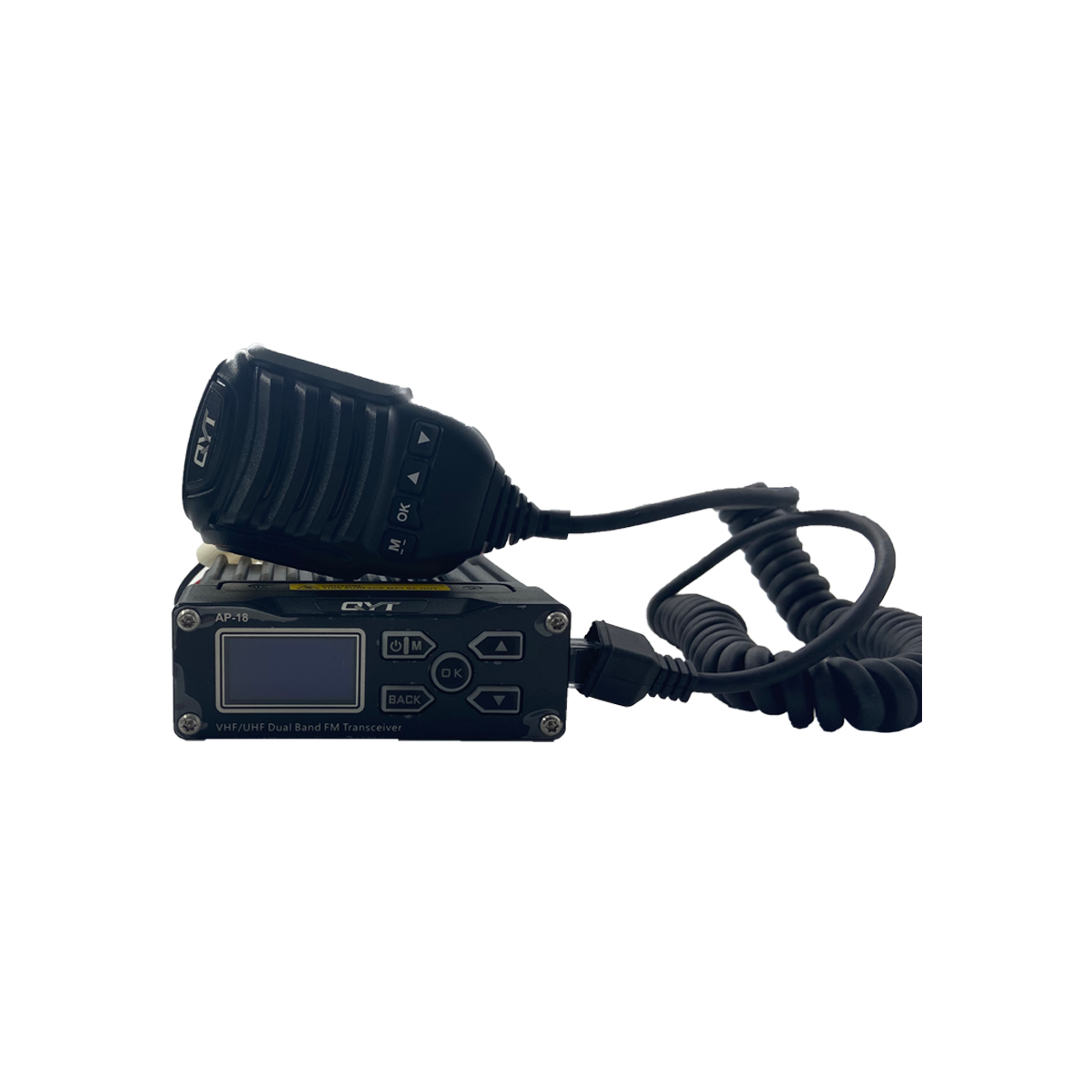

QYT AP-18 Dual Band GPS Mobile Radio with Wireless Microphone APRS Two Way Radio

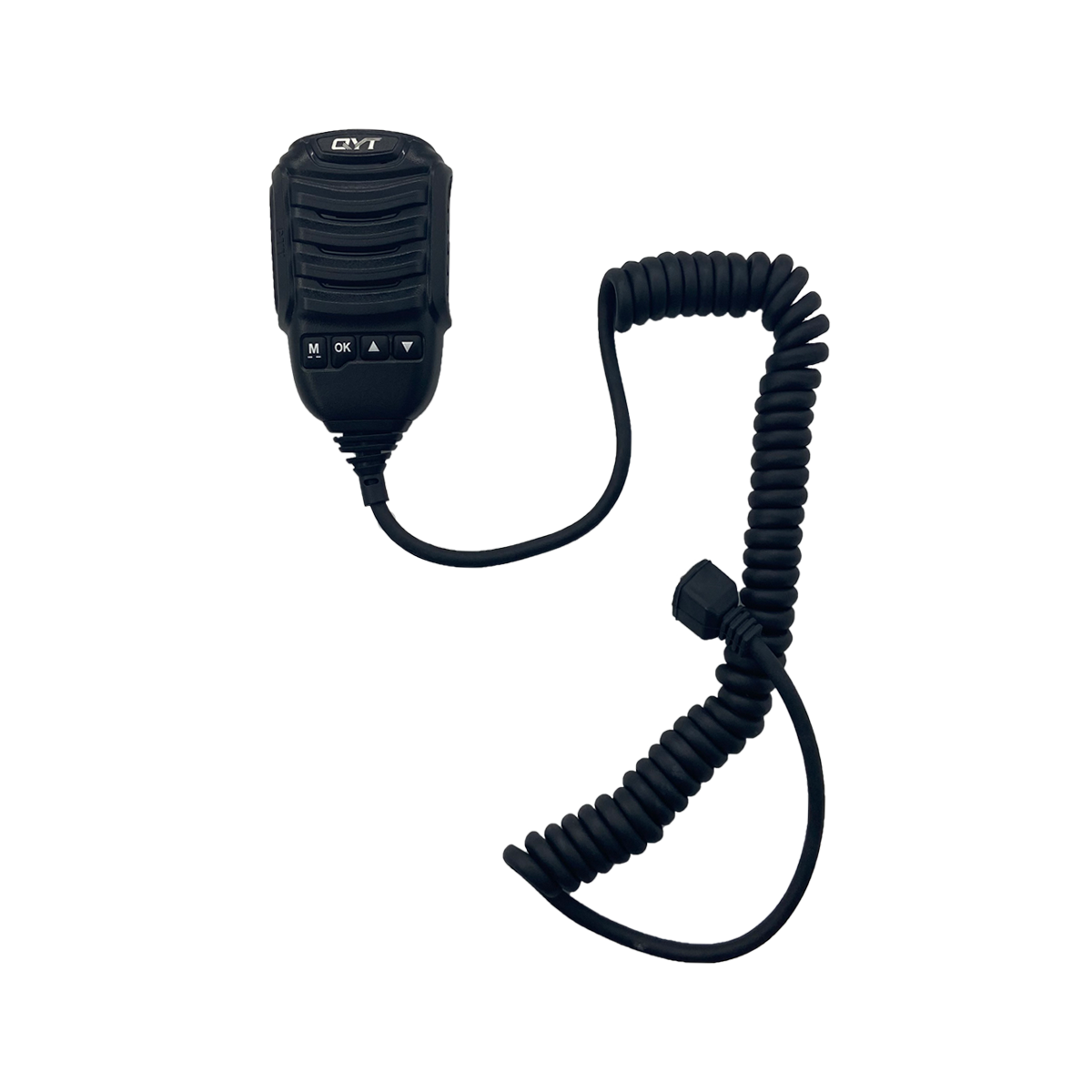

The QYT AP-18 is a multi-functional dual-band mobile radio built-in APRS and GPS module. It is equipped with wireless hand microphone and wireless PTT transmission, and supports Morse code. It realizes location tracking, calling and automatic team formation. Without public network support, users can send Chinese and English picture & text messages. The optional BeiDou+GPS dual-system positioning greatly improves positioning accuracy. It is a great choice for ham radio teams, off-road fleets and outdoor expeditions. It can work stably in remote areas with no cellular signal. Contact us for full specifications and quotations.

Availability:



Inquire

Model:
AP-18
Brand:
QYT

Mobile Radio Long Range Outdoor Walkie Talkie High Power Anti-interference Radio Dual Mode Walkie Talkie Wireless PTT Mobile Ham Radio APRS GPS Mobile Radio

Product Description

Customization service is available for QYT AP-18 mobile radio, including custom logo, packaging, antenna and power cord options.

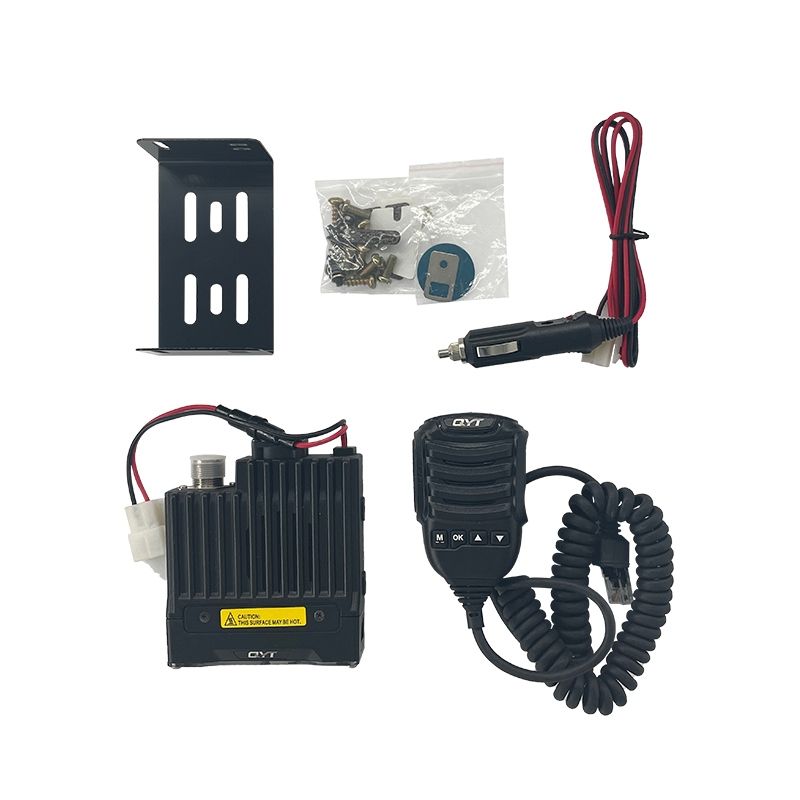

AP-18 APRS GPS Dual Band Vehicle Mobile Radio Wireless Mic

General Specification
Item	Specification
Frequency range	FM: 88–108MHz (Receive only) UHF: 400–470MHz (Transmit & Receive) VHF: 136–174MHz (Transmit & Receive)
Number Of Channels	16 × N channels
Channel Spacing	25KHz (Wide Band) / 12.5KHz (Narrow Band)
Phase Lock Step	5KHz / 6.25KHz / 10KHz / 12.5KHz / 15KHz / 25KHz
Working Voltage	DC 13.8V ±10%
Squelch Mode	Carrier / CTCSS / DCS
Frequency Stability	±2.5ppm
Operate Temperature	-20 ~ +60℃
Dimension	100(W) × 35(H) × 112(D) mm
Weight	Main unit: 420g; Total weight: 690g
Built-in Feature	Built-in Wireless 4.0 module, compatible with Bluetooth 4.0 devices
Output Power	25W (VHF) / 20W (UHF)

Receive Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Sensitivity (12dB SINAD)	≤0.25 μV	≤0.35 μV
Channel Selectivity	≥70 dB	≥60 dB
Intermodulation	≥65 dB	≥60 dB
Spurious Rejection	≥70 dB	≥70 dB
Audio Response	+1 ~ -3dB (0.3–3KHz)	+1 ~ -3dB (0.3–2.55KHz)
Signal to Noise Ratio	≥45 dB	≥40 dB
Audio Distortion	≤5%	≤5%
Audio Output Power	≥2W±10%	≥2W ±10%

Transmit Part (ETSI EN 300 086 Standardized Test)
Item	Wide band	Narrow band
Output Power	25W (VHF) / 20W (UHF)	25W (VHF) / 20W (UHF)
Modulation Mode	16KΦF3E	11KΦF3E
Adjacent Channel Power	≥70 dB	≥60 dB
Signal to Noise Ratio	≥40 dB	≥36 dB
Parasitic Harmonic	≥60 dB	≥60 dB
Audio Response	+1 ~ -3 dB (0.3 ~ 3 kHz)	+1 ~ -3 dB (0.3 ~ 2.55 kHz)
Audio Distortion	≤5%	—
